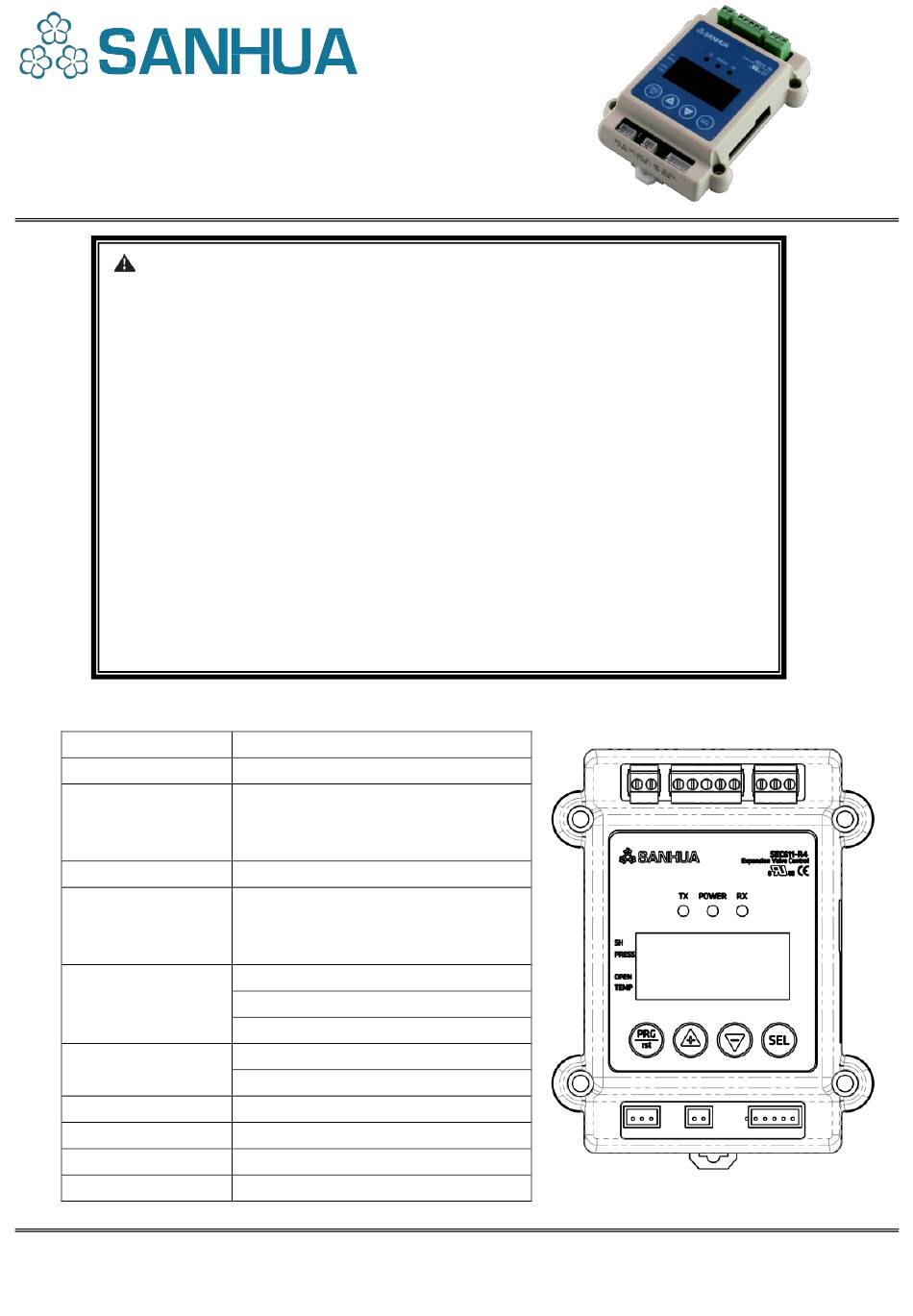

Sanhua SEC Series Manual/Installation Instructions

series
SEC EEV Controller
Manual/Installation Instructions
Cautions
1. This product may cause an electric shock in handling. Please do not attempt to open it with power turned on.
2.This product should be installed in a place fixed secured by a rack or panel.
3.This product can be used under the following environmental conditions:
● Indoor
4. Power input must be within the designated ranges.
5. To turn on or turn off power supply for this product, please use the circuit breaker or switch of a standard product of
IEC 60947-1 or IEC 60947-3 product and install it within a close distance allowing convenient operation by user provided.
6. An output wire to be used for this product should be inflammable grade FV1(v-1 grade or above). The thickness of
the wire should 0.08mm²~1.3 mm²
7. In order to prevent it from an inductive noise, please maintain the high-voltage wire and power wire separated.
8. Please avoid installing the product in a place where a strong magnetism, noise, severe vibration and impact exist.
9. When extending the sensor wire, use a shield wire and do not extend it unnecessary long.
10. The sensor wire and signal wire should be away from the power and load wires using conduits separately installed.
11. Please avoid using the product near a device generating strong high frequency noise (high frequency welding machine,
high-frequency sewing machine, high-frequency radiotelegraph, high capacity SCR controller)
1. Basic specifications
Items
Dimension
Power supply
Power consumption
Connection
Input
Output
Communication
Operation
Storage
Protection level
Copyright ©SANHUA 2019
Subject to change without notice
● Pollution Degree 2 ● At an altitude of 2000m or below
Description
87(W)mm x 114(H)mm x 30 (D)mm
24Vac +10%/-15%, 50/60Hz
24Vdc+10%/-10%
Class II
Max 4W at 24Vdc
Pluggable terminal: Screw M2
Min/Max wire diameter: 0.08²~1.3 mm²
XHP terminal
Pressure sensor
Temperature sensor
RUN signal（Passive switch signal）
Relay output（30Vdc/5A）
EEV (uni-polar) output
RS 485
o C
-25~60 ，Humidity≤
o C
-30~60 ，Humidity≤
IP20
95%RH
95%RH
II- SEC61-EN-R1911 1 / 11
