Lumex 6482R-2 Assembly & Operation Instructions

Info: The most current version of these instructions can be found online at
Tools required: Phillips or blade screwdriver
WARNING: Important! Read and understand these instructions
before installing or using the Toilet Seat Riser. If you do
not understand any part of these warnings, cautions or
instructions, contact a healthcare professional for direction in
the use of this product. If the toilet seat riser is not properly
assembled and installed, personal injury and damage to the
toilet seat riser could result.
WARNING: If components are damaged or missing, contact
your dealer immediately. DO NOT use substitute parts. Use only
Lumex replacement parts. Non-Lumex replacement parts could
cause personal injury and damage to the toilet seat riser.
WARNING: This product has a weight limit of 300 lb, EVENLY
DISTRIBUTED.
WARNING: Notice for California Customers- California
Proposition 65 WARNING: This product contains a chemical
known to the State of California to cause cancer and
reproductive or developmental harm.
WARNING: GF Health Products, Inc. assumes no responsibility
for any damage or injury caused by improper assembly,
installation or use of this product.

INTENDED USE

The toilet seat riser is intended for use by those who have difficulty sitting
down on or standing up from the toilet.

INSTALLATION

1. Remove toilet seat riser, hardware, and armrests from carton and
protective packaging.
2. Install the armrests using the following steps:
a. Identify the right and left armrests by the R (Right) and L (Left) stamped
into armrest ends.
b. Note that each toilet seat riser armrest socket is also stamped with an R
or L, as shown at right. Insert each armrest marked with R or L into the
socket with the corresponding letter.
c. Push each armrest into its sockets until it clicks into place.
d. Ensure locking buttons protrude fully from holes. Pull on armrests
slightly to test proper installation. If loose, repeat step c.
3. At the toilet, lift the cover plates at top rear toilet bowl rim, exposing the
bolts holding the seat and lid to the toilet bowl.
4. Use a Phillips or blade screwdriver, whichever is appropriate, to unscrew
toilet seat bolts by turning counterclockwise.
5. Remove the toilet seat and lid from the toilet bowl and set them aside.
6. Place the toilet seat riser over the toilet bowl rim so that the toilet seat
riser mounting holes align with the toilet rim holes.
7. Place the toilet seat and lid on top of the toilet seat riser so that the seat/lid
holes align with the riser and rim holes.
6482R-2-INS-LAB-RevB14
6482R-2/6482ER-2: DELUXE TOILET SEAT RISER WITH
ARMRESTS; ASSEMBLY & OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
www.grahamfield.com.

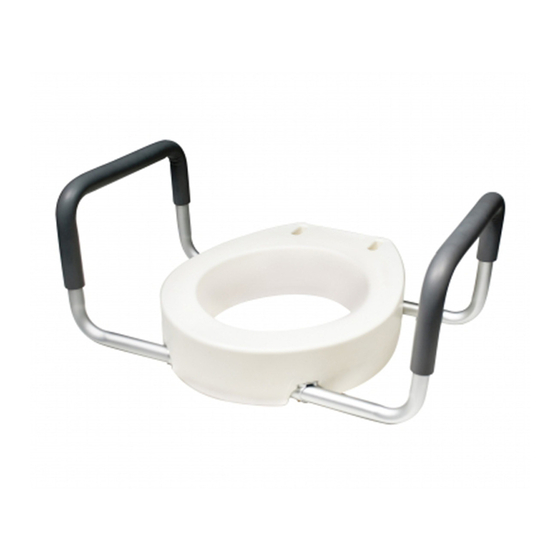

6482R-2 assembled
6482ER-2 assembled
"R" on armrest socket
locking button
armrest toilet seat riser
right armrest shown installed
(shown upside down)
mounting holes
6482ER-2, one arm attached
(shown upside down)
wing
nut
washers
hardware
bolt
1
