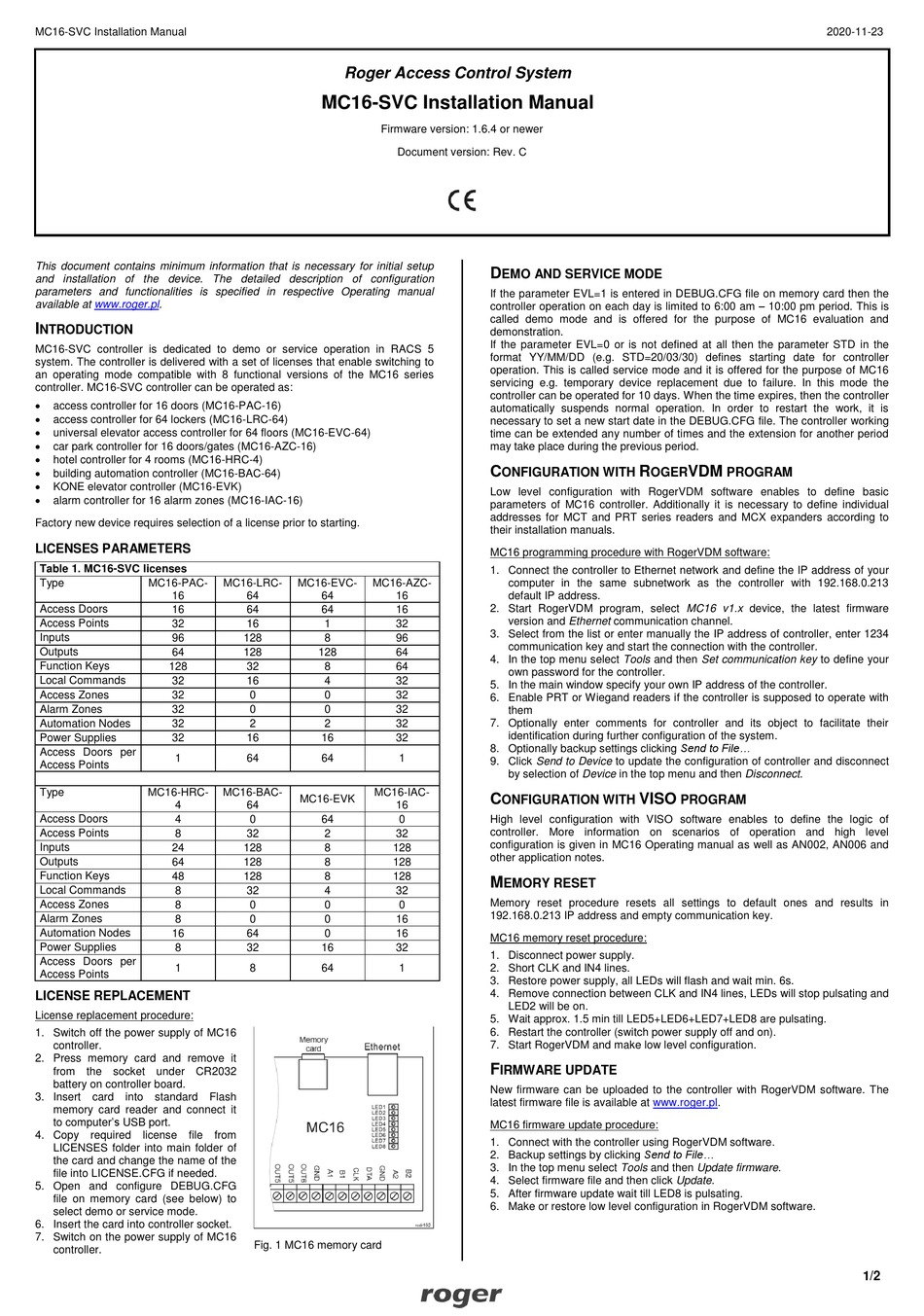

Roger MC16-SVC Installation Manual

MC16-SVC Installation Manual
This document contains minimum information that is necessary for initial setup
and installation of the device. The detailed description of configuration
parameters and functionalities is specified in respective Operating manual
available at www.roger.pl.
I
NTRODUCTION

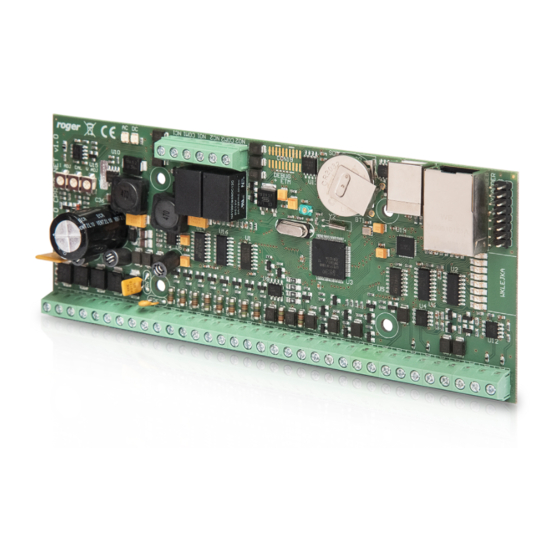

MC16-SVC controller is dedicated to demo or service operation in RACS 5
system. The controller is delivered with a set of licenses that enable switching to
an operating mode compatible with 8 functional versions of the MC16 series
controller. MC16-SVC controller can be operated as:

access controller for 16 doors (MC16-PAC-16)

access controller for 64 lockers (MC16-LRC-64)

universal elevator access controller for 64 floors (MC16-EVC-64)

car park controller for 16 doors/gates (MC16-AZC-16)

hotel controller for 4 rooms (MC16-HRC-4)

building automation controller (MC16-BAC-64)

KONE elevator controller (MC16-EVK)

alarm controller for 16 alarm zones (MC16-IAC-16)
Factory new device requires selection of a license prior to starting.
LICENSES PARAMETERS
Table 1. MC16-SVC licenses
Type MC16-PAC-
16
Access Doors
16
Access Points 32
Inputs 96
Outputs
64
Function Keys 128
Local Commands 32
Access Zones
32
Alarm Zones 32
Automation Nodes 32
Power Supplies
32
Access Doors per
1
Access Points
Type MC16-HRC-
4
Access Doors 4
Access Points
8
Inputs 24
Outputs 64
Function Keys
48
Local Commands 8
Access Zones 8
Alarm Zones
8
Automation Nodes 16
Power Supplies 8
Access Doors per
1
Access Points
LICENSE REPLACEMENT
License replacement procedure:
1. Switch off the power supply of MC16
controller.
2. Press memory card and remove it
from the socket under CR2032
battery on controller board.
3. Insert card into standard Flash
memory card reader and connect it
to computer's USB port.
4. Copy required license file from
LICENSES folder into main folder of
the card and change the name of the
file into LICENSE.CFG if needed.
5. Open and configure DEBUG.CFG
file on memory card (see below) to
select demo or service mode.
6. Insert the card into controller socket.
7. Switch on the power supply of MC16
controller.
Roger Access Control System
MC16-SVC Installation Manual
Firmware version: 1.6.4 or newer
Document version: Rev. C
MC16-LRC- MC16-EVC- MC16-AZC-
64 64 16
64 64 16
16 1 32
128 8 96
128 128 64
32 8 64
16 4 32
0 0 32
0 0 32
2 2 32
16 16 32
64 64
MC16-BAC- MC16-IAC-
MC16-EVK
64 16
0 64
32 2 32
128 8 128
128 8 128
128 8 128
32 4 32
0 0
0 0 16
64 0 16
32 16 32
8 64
Fig. 1 MC16 memory card
D
EMO AND SERVICE MODE
If the parameter EVL=1 is entered in DEBUG.CFG file on memory card then the
controller operation on each day is limited to 6:00 am – 10:00 pm period. This is
called demo mode and is offered for the purpose of MC16 evaluation and
demonstration.
If the parameter EVL=0 or is not defined at all then the parameter STD in the
format YY/MM/DD (e.g. STD=20/03/30) defines starting date for controller
operation. This is called service mode and it is offered for the purpose of MC16
servicing e.g. temporary device replacement due to failure. In this mode the
controller can be operated for 10 days. When the time expires, then the controller
automatically suspends normal operation. In order to restart the work, it is
necessary to set a new start date in the DEBUG.CFG file. The controller working
time can be extended any number of times and the extension for another period
may take place during the previous period.
C
ONFIGURATION WITH
Low level configuration with RogerVDM software enables to define basic
parameters of MC16 controller. Additionally it is necessary to define individual
addresses for MCT and PRT series readers and MCX expanders according to
their installation manuals.
MC16 programming procedure with RogerVDM software:
1. Connect the controller to Ethernet network and define the IP address of your
computer in the same subnetwork as the controller with 192.168.0.213
default IP address.
2. Start RogerVDM program, select MC16 v1.x device, the latest firmware
version and Ethernet communication channel.
3. Select from the list or enter manually the IP address of controller, enter 1234
communication key and start the connection with the controller.
4. In the top menu select Tools and then Set communication key to define your
own password for the controller.
5. In the main window specify your own IP address of the controller.
6. Enable PRT or Wiegand readers if the controller is supposed to operate with
them
7. Optionally enter comments for controller and its object to facilitate their
identification during further configuration of the system.
8. Optionally backup settings clicking Send to File...
1
9. Click Send to Device to update the configuration of controller and disconnect
by selection of Device in the top menu and then Disconnect.
C
ONFIGURATION WITH
0 High level configuration with VISO software enables to define the logic of
controller. More information on scenarios of operation and high level
configuration is given in MC16 Operating manual as well as AN002, AN006 and
other application notes.
M
EMORY RESET
Memory reset procedure resets all settings to default ones and results in
0
192.168.0.213 IP address and empty communication key.
MC16 memory reset procedure:
1. Disconnect power supply.
1 2. Short CLK and IN4 lines.
3. Restore power supply, all LEDs will flash and wait min. 6s.
4. Remove connection between CLK and IN4 lines, LEDs will stop pulsating and
LED2 will be on.
5. Wait approx. 1.5 min till LED5+LED6+LED7+LED8 are pulsating.
6. Restart the controller (switch power supply off and on).
7. Start RogerVDM and make low level configuration.
F
IRMWARE UPDATE
New firmware can be uploaded to the controller with RogerVDM software. The
latest firmware file is available at www.roger.pl.
MC16 firmware update procedure:
1. Connect with the controller using RogerVDM software.
2. Backup settings by clicking Send to File...
3. In the top menu select Tools and then Update firmware.
4. Select firmware file and then click Update.
5. After firmware update wait till LED8 is pulsating.
6. Make or restore low level configuration in RogerVDM software.
R VDM
OGER PROGRAM
VISO
PROGRAM
2020-11-23
1/2
