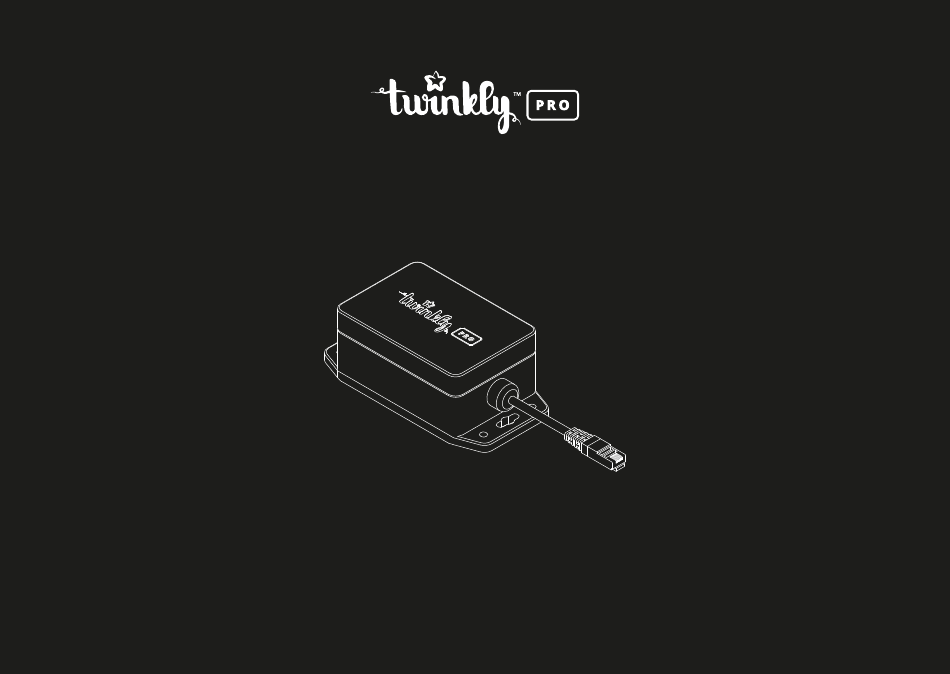

- Page 1 Smart decoration solutions for professionals USERGUI DE TW P-uW iF i REV 1 .20 06 01...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Package Contents Installation Requirements INSTA LLATION PROCESS Connect to the Ethernet Controller Setting up as Access Point Setting up as Extender TROUBLES HOOTING Repair Process Restore Process... -
Page 3: Introduction
Introduction Thank you for choosing Twinkly Pro for your lighting needs. This manual will provide detailed instructions, guide you through the entire setup process, and assist you with the recommended installation procedure for your device(s). By reading this step-by-step guide you will: •... -
Page 4: Package Contents
Package Contents What is inside the box 1 TWP-uWiFi (Accessory for TWPRO1500ETHP) 2 Ethernet Cable Extender... -
Page 5: Installation Requirements
Installation Requirements What is required for the installation * 3 TWPRO1500ETHP Controller (up to 7 controllers per Switch) 4 TWP-SW-8 (Switch needed only for multi-controller setups) * purchased separately... -
Page 6: Connect To The Ethernet Controller
STEP 1 Connect to the Ethernet Controller... - Page 7 Connect the uWiFi to the controller Plug the Ethernet Controller to a power source • You can also activate the PoE after connecting the uWiFi • Verify the status of the PoE by looking for the is already activated Enable the PoE by pressing and holding the button remain activated even if you disconnect the uWiFi Wait for the uWiFi to turn on.
-
Page 8: Setting Up As Access Point
STEP 2 A Setting up as Access Point SIN GLE CO N TRO L LER S ETU P VERTIGO... - Page 9 MU LTI-CO N TRO LLER SETUP VERTIGO PoE IN PoE O U T...
- Page 10 S TEP 2 A Setting up as 2A .1 2 A.2 Access Point Connect via Wi-Fi to Connect to GL-AR150-xxx 192.168.8.1 The default password Select your language is: goodlife...
- Page 11 2A .3 2A.4 2A .5 2 A.6 Set your Password Open Menu and Press Modify Enter your data then press Submit select Wireless Insert the new SSID and password in the Wi-Fi Name and Wi-Fi Key, press Apply. You will need to reconnect to the Access Point.
-
Page 12: Setting Up As Extender
STEP 2 B Setting up as Extender 2B .1 2B.2 VERTIGO Connect via Wi-Fi to Connect to GL-AR150-xxx 192.168.8.1 The default password Enter your is: goodlife password, then... - Page 13 2 B .3 2B.4 2B .5 2 B.6 Open the Menu Under More Settings Select Extender Select your select Network Mode then press Next network, insert your password, press Apply all your client devices. When you use Extender mode, you may not connect to this UI again.
-
Page 14: Troubles Hooting
TROU B L ES HO O TIN G Repair Process Do this if you cannot connect to the router or when the router is page at address 192.168.8.1. Once the repair has been performed, the SSID and PW of the device will not be changed. uWiFi has to be powered-on during the process Press and hold for 4... - Page 15 Using a PC connect to the uWiFi and connect to the IP address 192.168.8.1 Make sure the Place the cover silicone gasket is and secure it sealed before closing back with the screws the lid to maintain the Select Use as LAN, then press Yes IP rating...
-
Page 16: Restore Process
TROU B LES HO O TING Restore Process Do this if you want to restore the device to factory data. It will be possible to access the 192.168.8.1. Once the reset is PW will also be restored, see uWiFi has to be powered-on during the process Press and hold for 10 seconds then... - Page 17 Using a PC connect to the uWiFi and connect to the IP address 192.168.8.1 Make sure the Place the cover silicone gasket is and secure it sealed before closing back with the screws the lid to maintain the Select Use as LAN, then press Yes IP rating...
- Page 18 FCC ID : 2AFIWGL-AR-150 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may Note 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 19 The equipment passed the test which to comply with the requirements setout was performed according to the following in the European Council Directive on the European standards: States relating to RED (2014/53/EU) and RoHS ETSI EN301 489-1 V1.9.2 (2011-09) (2011/65/EU). ETSI EN301 489-3 V1.6.1 (2013-08) ETSI EN300 328 V1.9.1 (2015-02) This product uses WiFi...
- Page 20 If you need any further information, please feel free to contact us: sales@pro.twinkly.com...
