- Page 1 JET ASSISTED PUMPS...
-
Page 2: Table Of Contents
SUMMARY Thank you and congratulations! You have purchased a product with excellent quality and service. Secure this service by carrying out the installation works in accordance with the instructions, so that our product can perform its task to your complete satisfaction. Any damage caused by inappropriate use invalidates the guarantee. -
Page 3: Construction Material & Technical Information
INSTRUCTION MANUAL CHAPTER 1 CONSTRUCTION MATERIAL & TECHNICAL INFORMATION PART MATERIAL Pump Casing X5 CrNi 1810 (AISI 304) stainless steel Motor Bracket Die-cast aluminium Impeller Technopolymer with stainless steel shim ring Monobloc diffuser Venturi tube nozzle assembly Technopolymer Shaft X12 CrN iS 1809 (AISI 416) stainless steel Mechanical Seal Graphite Counterface... -
Page 4: Application
CHAPTER 2 APPLICATION Onga JS Series pumps are suitable for pumping clean water in a domestic water system, small irriga- tion applications, and general water transfer. The Onga JS Series Jet-Assisted pumps are fantastic at self- priming, easy to install, and come in a wide range of packages to suit almost any application. -
Page 5: Installation
INSTRUCTION MANUAL CHAPTER 3 INSTALLATION The electrical installation shall be in accordance with the national wiring rules (AS/NZS 3000) for class 1, IP44 rated products. These instructions are a guide only. Users not familiar with pumping equipment should seek advice from people experienced in pump equipment and installa- tion. - Page 6 INSTRUCTION MANUAL CHAPTER 3 INSTALLATION Preparation for Installation Inspect your pump for shipping damage. Report any damage to your Onga Dealer. Make sure the suction piping is free of air leaks and is laid so that there can be no airlocks. Warranty of these pumps is void unless they are operated in accordance with this owner’...
- Page 7 INSTRUCTION MANUAL CHAPTER 3 INSTALLATION Suction 6. Suction 6. Suction This is the most important part of the installation as errors will cause significant problems for the This is the most important part of the installation as errors will cause signifi cant This is the most important part of the installation as errors will cause signifi...
- Page 8 INSTRUCTION MANUAL CHAPTER 3 INSTALLATION Discharge The length and diameter of the discharge hoses/pipes will affect the pressure and flow rate at which your pump operates. Pressure ratings of all components must exceed the maximum pressure of the pump by an appropriate safety factor. All pipework should be supported independently of the pump. Connect the fitting at the top of the pressure controller (1”BSP Male) to the household plumbing or garden taps*.
-
Page 9: Operation

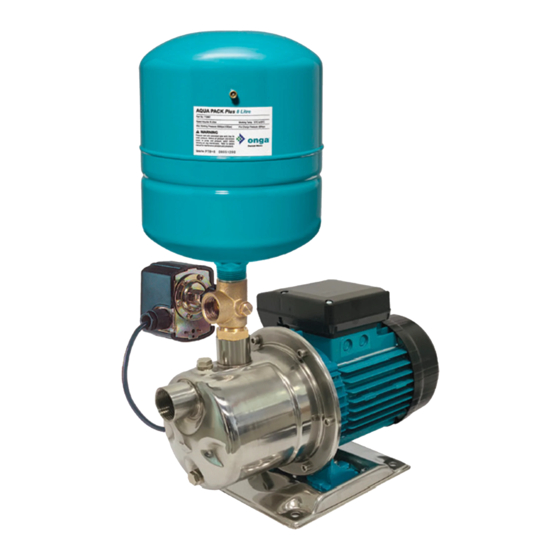

INSTRUCTION MANUAL CHAPTER 4 OPERATION The pump operator or owner must be provided with this owner’ s manual. This must be read before operation, and followed during operation. Ensure that your pump is filled with water before operating. The pump is designed to be used with clean water in a residential application. Do not use it with alternative fluids, specifically abrasive, corrosive or explosive fluids. - Page 10 INSTRUCTION MANUAL JS with Pressure Switch only Pressure Switch The Pressure Switch should be screwed onto the 3/4” port on the 5 way tee. No sealing tape should be necessary and the locknut should only be just over handtight to seal. All pressure switches are factory set and will suit most domestic requirements but may require further adjustment accordingly to individual installations.
-
Page 11: Service And Maintenance
INSTRUCTION MANUAL CHAPTER 5 SERVICE AND MAINTENANCE Pump should only be serviced by qualified personel. For best results, use only genuine service parts. Be sure to prime pump before starting. To avoid dangerous or fatal electrical shock hazard, turn OFF power to motor and remove plug from power outlet before working on pump or motor. -
Page 12: Troubleshooting
INSTRUCTION MANUAL CHAPTER 6 TROUBLESHOOTING Symptom Cause Remedy No Electricity Ensure that the pump is connected to a live outlet Check Circuit breakers and Fuses Pressure Controller has Check that there is enough water in the tank, Pump does not detected that there is not then press the “reset”... - Page 13 INSTRUCTION MANUAL NOTES...
- Page 14 INSTRUCTION MANUAL NOTES...
- Page 15 Information contained here-in remains the property of Pentair Australia Pty Ltd. Any reproduction,display, publication, modification or distribution is strictly prohibited without the prior written permission of Pentair Australia Pty Ltd. Disclaimer: Pentair reserves the right to change product specifications and products details.
