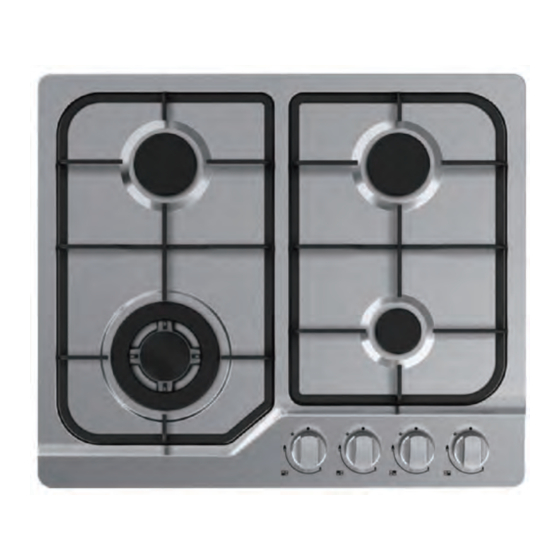

60cm 4 burner gas cooktop
Hide thumbs Also See for BGM604:

Advertisement

Quick Links

INSTALLATION & OPERATION
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au
Model No. BGM604, BGM604-F Only In Builders Pack BP370EG FINELINE: 5103600 Aus 60cm 4 Burner Gas Cooktop
INSTRUCTIONS
60cm 4 Burner Gas Cooktop
Model No.
BGM604
BGM604-F
Only In Builders Pack BP370EG FINELINE: 5103600 Aus Only
V.15 Jan21

Advertisement

loading
Need help?

Need help?

Do you have a question about the BGM604 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bellini BGM604

Summary of Contents for Bellini BGM604

  • Page 1 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au Model No. BGM604, BGM604-F Only In Builders Pack BP370EG FINELINE: 5103600 Aus 60cm 4 Burner Gas Cooktop...
  • Page 2 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au Model No. BGM604, BGM604-F Only In Builders Pack BP370EG FINELINE: 5103600 Aus 60cm 4 Burner Gas Cooktop...

  • Page 3: Table Of Contents

    GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au Model No. BGM604, BGM604-F Only In Builders Pack BP370EG FINELINE: 5103600 Aus 60cm 4 Burner Gas Cooktop...

  • Page 4: Safety Instructions

    ■ Read the following contents thoroughly and ensure you understand them ***All Bellini Appliances are for domestic use only** Neglect of this mark may result in severe personal injury or Danger/Warning death.

  • Page 5: Installation

    installation Warning ■ This appliance shall be installed in ■ Prior to installation, ensure that the accordance with regulations in force gas and electrical supply complies and only used in a well ventilated with the type stated on the rating space.
  • Page 6 child and people safety Warning ■ Do not allow children to play near or with the appliance. The appliance gets hot when it is in use. Children should be kept away until it has cooled. Caution ■ This appliance is designed to be operated by adults. ■...
  • Page 7 during use Warning ■ Only use the appliance for preparing ■ Do not modify this appliance. Burner panel is not designed to operate food. from an external timer or separate remote control system. comes ■ The use of a gas cooking appliance results ■...
  • Page 8 during use ■ Do not use or store flammable ■ Perishable food, plastic items and materials in the storage drawer aerosols may be affected by heat and should not stored above or below the near this appliance. appliance. ■ Do not spray aerosols in the vicinity of ■...
  • Page 9 cleaning and service Warning ■ Never use abrasive or caustic ■ This appliance should only be cleaning agents. repaired or serviced by an authorised Service and only genuine technician approved spare parts should be used. Caution ■ Before attempting to clean the appliance, it should be disconnected from the mains and cooled.

  • Page 10: Product Description

    Model BGM604/BGM604-F Pan Support Cast Iron Wok pan Suppo r Top Plate S tainless Steel Di m m ension(W*D*H ) 590*500*95 Ignition device Conti n n uous Ignition T y Gas Connectio n G1/2 thread Electric supply...
  • Page 11 Only In Builders Pack BP370EG FINELINE: 5103600 Aus Only I nj ector ( 4 ) Cast iron trivet Bellini Instruction Manual(1) Gas-pipe bend (1) Test Point Adaptor(1) how to use the appliance The following symbols show on the control panel, next to each control knob:...

  • Page 12: Start Using Your Appliance

    how to use the appliance Automatic ignition with flame failure safety device To ignite a burner: o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position. o If you keep the control knob depressed, the automatic ignition for the burner will operate.
  • Page 13 safety and energy saving advice - The diameter of the bottom of the pan should correspond to that of the burner. PANS BURNERS ■ Do not use cookware that min. max. overlaps the edge of the 200mm 240mm burner. Semi-Rapid 160mm Auxiliary 120mm...

  • Page 14: Maintenance

    cleaning and maintenance ■ Cleaning operations must only be carried out when the appliance cool. completely ■ The appliance should be disconnected from your mains supply before commencing any cleaning process. ■ Clean the appliance regularly, preferably after each use. ■...
  • Page 15 cleaning and maintenance ■ Remove the burner lids and Flame Spreaders by pulling them upwards and away from the top plate. ■ Soak them in hot water and little detergent or washing up liquid ■ After cleaning and washing them, wipe and dry them carefully. Make sure that the flame holes are clean and completely dry.
  • Page 16 using instructions Warnings ■ Do not modify this appliance. ■ This appliance must be installed by an authorised technician or installer. ■ Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
  • Page 17 CLEARANCES REQUIRED WHEN FITTING THE HOB WITH A COOKER HOOD ABOVE 600mm BGM604/ BGM604-F 650mm 400mm 400mm FO 0813 ■ This appliance is to be built into a kitchen unit or mm worktop, providing the following minimum distances are allowed ;...
  • Page 18 3. Do not leave a gap in the Self Adhesive strip or overlap the thickness. Bottom view BGM604/ BGM604-F The thickness of the Self Adhesive strip is The width of the Self Adhesive strip is 10 mm. Do not use a silicon sealant to seal the appliance against the bench top.
  • Page 19 gas connection ■ This appliance must be installed and connected in accordance with installa- tion regulations in force in the country in which the appliance is to be used. ■ This appliance is supplied to run on natural gas only and cannot be used on any other type of gas without modification.
  • Page 20 connection Statutory requirements This installation must conform with the following: ■ Manufacturer’s Installation instructions ■ Local Gas Fitting Regulations ■ Municipal Building Codes ■ Refer to AS/NZS 5601.1 for Gas Installations ■ S.A.A. Wiring Code ■ Local Electrical Regulations ■ Any other statutory regulations Preparing to install Refer to AS/NZS 5601.1 for piping size details.
  • Page 21 Gas Connection Install in accordance with relevant gas standards and/or codes of practice applicable. Connect the elbow fitting to the appliance gas manifold connection, and check that seals between the elbow and manifold connection are in place and in good condition.
  • Page 22 electrical connection ■ This appliance must be earthed. ■ This appliance is designed to be connected to a AC electricity supply. 220-240V, 50Hz-60Hz ■ The wires in the mains lead are coloured in accordance with the following code ; - Green/yellow = Earth - Blue = Neutral - Brown...
  • Page 23 adjustment ■ Take precautions on the operations and adjustments to be carried out when converting from one gas to another. ■ All work must be carried out by a qualified technician. ■ Before you begin, turn off the gas and electricity supply to the appliance. Remove the pan support, Burner lid and Flame spreader.
  • Page 24 trouble shooting Repairs should be performed by a licensed technician only. Improper repair may result in considerable ■ danger to you and others. ■ However, some minor problems can be resolved as follows : Problem Probable cause Solution No Spark. Check the electricity supply Not ignited The burner lid is badly assembled.

  • Page 25: Warranty

    Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
  • Page 26 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
