This instruction manual is integral part of manual of the boiler on which you install the kit. To this manual, please refer to the WAR-
NINGS, for the BASIC SAFETY RULES and the maximum lengths allowed for each type of boiler.
DESCRIPTION OF KIT
The horizontal terminal is a wall concentric system for flue outlet and air intake (Ø60/100). In addition to the horizontal terminal there
are also other accessories (various lengths extensions and bends) that make possible countless configurations of flue flow outlet and
air intake.
PACKAGING CONTENT
Concentric bend
Concentric pipe with terminal
Internal rosette
External rosette
Ø 100 clamp
Package screws
Instructions
INSTALLATION
This kit must be installed by qualified personnel.
For the discharge of combustion products refer to the applicable standards and local regulations.
Before installation, lubrificate the seals with non-corrosive slip solution.
Before carrying out any operation, disconnect the electricity supply to the boiler by turning "off" the main switch and the boiler
switch.
- Verify where should be made the hole in the wall, based on the model and position of the boiler
- Drill a hole in the wall (Ø115mm)
- Introduce the pipe with terminal (A) into the hole
- Place the external rosette (B)
- Place the internal rosette (C)
- Install the bend to the pipe with terminal
- Connect the bend to the boiler, using the clamp provided.
If the length to be covered is longer than pipe with terminal, put up Ø60/100 extensions and/or bends introducing them immediately
after the boiler outlet bend.
If instead the straight section must be shortened you must cut both the air intake duct (Ø100) that the outlet flue pipe (60mm) from
the side of the Male. Make sure that the flue pipe (Ø60) does not protrude from the air pipe (Ø100).
Combustion will be impaired if the above instructions are not applied.
Operations ended perform a check of all the seals, and possibly a combustion analysis.

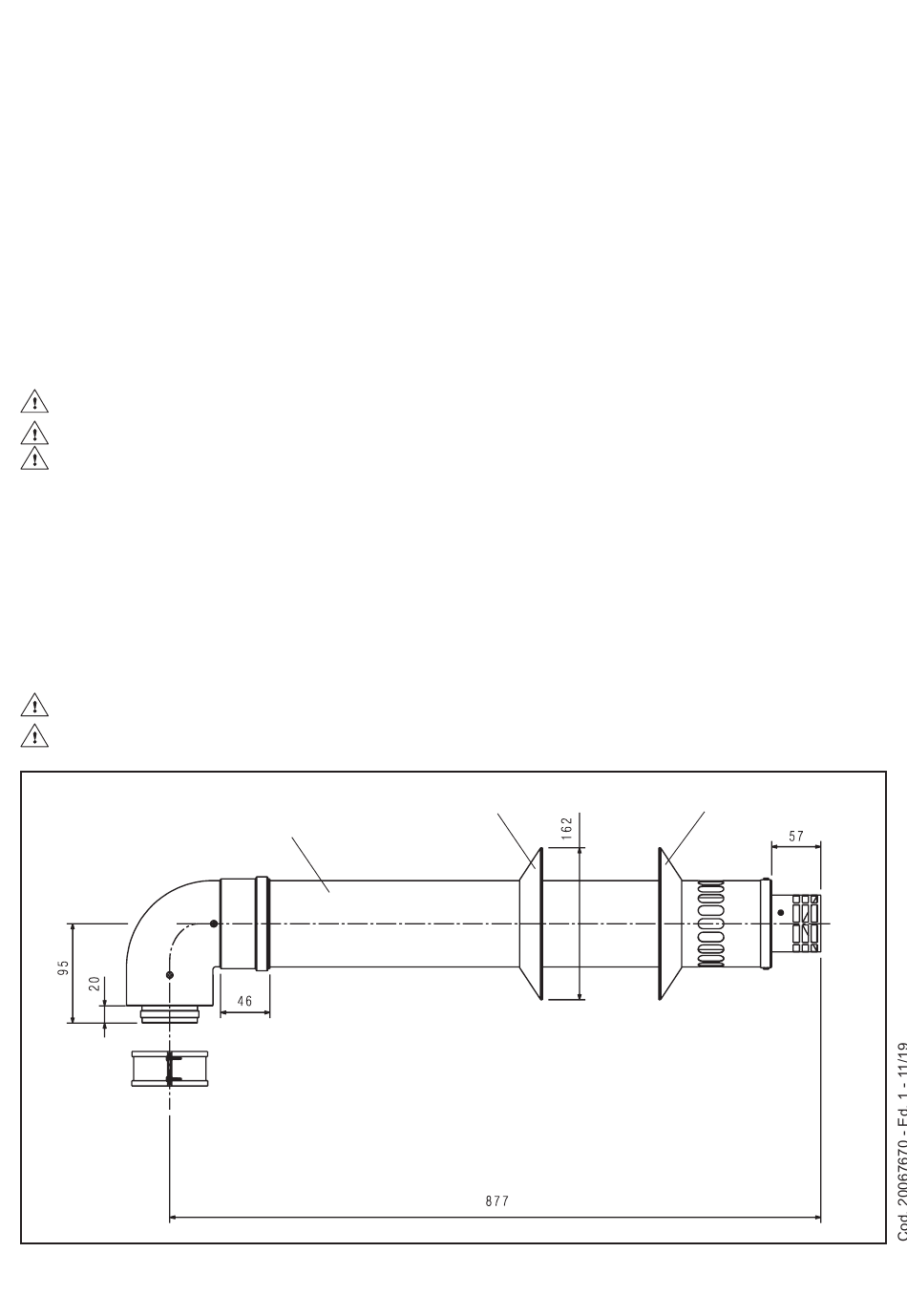

HORIZONTAL FLUE TERMINAL Ø 60/100
Q.ty
1
1
1
1
1
1
1
A
C
B
