OPERATOR'S MANUAL

VM18L

Table of Contents

Need help?

Do you have a question about the VM18L and is the answer not in the manual?

Questions and answers

Summary of Contents for WEISS VM18L

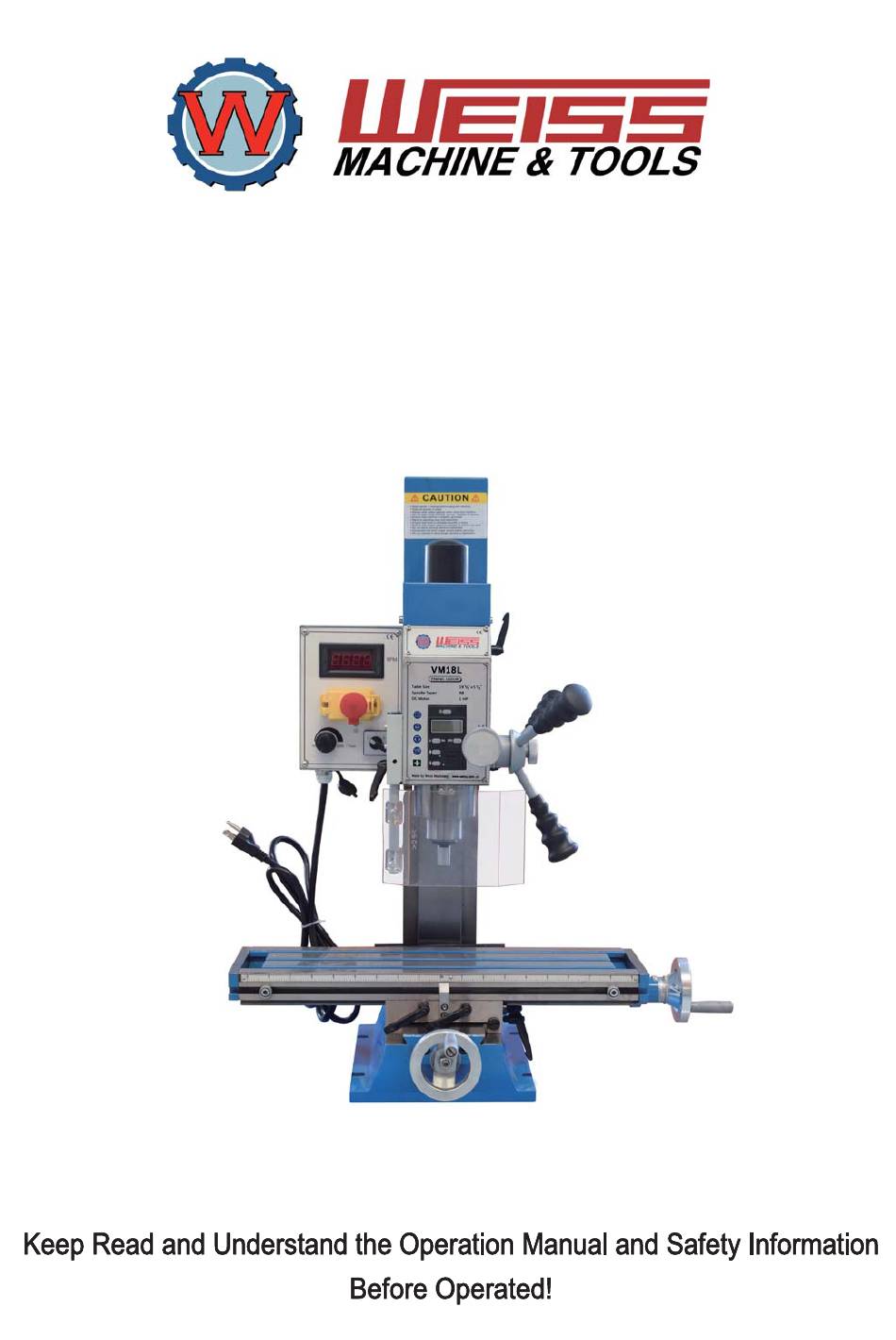

Page 1 OPERATOR'S MANUAL VM18L...
Page 4 Model VM18L Max. Drilling Capacity 11/16" 18mm Max. End Milling Capacity 5/8" 16mm Max. Face Milling Capacity 1-31/32" 50mm T-Slot Size 3 @ 25/64" slots 3 @ 10mm slots T-Slot Centers 1-3/8" 35mm 33/64" Table Size 19-11/16" × 5- 500 × 140mm Table Travel (X,Y) 8-21/32"...
Page 6 VM18L 7/16"...
Page 8 07-2...
Page 10 ELECTRICAL CONNECTIONS WARNING! A qualified electrician must make all electrical connections! Failure to do so may cause serious injury! Before connecting the machine to the mains, make sure that the electrical values of the mains supply are the same as those for the machine’s electrical components. Use the wiring diagram (Fig.
Page 11 WARNING! his machine is designed and intended for use by properly trained and experienced personnel only! If you are not familiar with the proper and safe use of mill/drills, don’t use the machine until proper training and knowledge have been obtained! Failure to comply may cause serious injury! Arbor Replacement Disconnect machine from the power source,...
Page 14 250 251...
Page 15 HEAD ASSEMBLY Parts No. Description Specification Code NO. Position Washer 30212101 Bush 35 45#steel 30212102 Spring 2.5× 28×100 50670125 Snap Ring 50640834 Bearing 6209-2RZ/Z2 50406209 Pulley Bearing 6007/2RZ 50406007 3M-339 50668 Bracket 30212204 Hex Head Cap Screw M3×6 50611903b Sensor 51809011 Magnetic Cylinder 30212205...
Page 16 Parts No. Description Specification Code NO. Label 39211100 Label 39211000 Digital Scale 23070100 Hex Head Cap Screw M4×50 50619049B Base 30212115 Screw M4×8 50615251 Bracket 30213116 Plate 30212117 Locking Lever M8×20 50661066 Brass Pin 30212118 Knob 30212119 Set Screw M5×6 50618850A Spring Piece 50674004...
Page 17 Parts No. Description Specification Code NO. Spring 1.2× 11×30 50670112 Hex Head Cap Screw M4×10 50619042B Flange 30212133 Washer 30212134 Worm Gear 30212135 4×12 50644021 Gear Shaft 30212136 Block 30212137 Screw M6x16 50618864A Plate for Head 30211146...
Page 19 COLUMN, TABLE, BASE ASSEMBLY Parts No. Description Specification Code NO. Vertical Slide 30211201 Screw M6×16 50618864A Washer 50637908 Spring Washer 50637808 Hex Head Cap Screw M8×25 50619073 Washer 30213202 Spring Washer 50637812 Screw M12×40 50612864 T-Bolt M8×60 50611323 Washer 30211203 Spring Washer 50637808 50630210...
Page 20 Parts No. Description Specification Code NO. Steel Spacer Bush SF-1B1015 30211203 Hex Head Cap Screw M8×12 50619070 Bracket 30211204 50637905B Hex Head Cap Screw M4×12 50619043 A 4×16 50644023 Vertical Leadscrew 30211205 Column 30211228 Label 30211904 Hex Head Cap Screw M12×90 50619098A Right Bracket...
Page 21 Parts No. Description Specification Code NO. Handle M8×63 30213223 Handwheel 30213306 Dial 30212307 Bearing 51200 50451200 Longitudinal Leadscrew WMD16V 30211308 Longitudinal Leadscrew(L) WMD16LV 30211308L Hex Head Cap Screw M6×10 50619058B Bush 15 45#steel 30212309 30212310 Scale 30211905 Longitudinal Nut 30211311 Adjusted Screw M4×14 50619044...
Page 22 124 125 119...
