CONTENT
GENERAL SAFETY INSTRUCTIONS ............................................. 2
1. User's due diligence ................................................................... 2
2. Explanation of safety symbols used in this manual ............... 3
3. Special hazards .......................................................................... 4
4. Basic rules on safety precautions ............................................ 5
EC DECLARATION OF CONFORMITY .......................................... 6
PRODUCT DESCRIPTION .............................................................. 7
1. Proper use ................................................................................... 7
2. Design .......................................................................................... 7
3. Function description .................................................................. 7
4. Technical specifications ............................................................ 8
OPERATION .................................................................................... 9
1. General Information ................................................................... 9
2. Main functions .......................................................................... 10
3. Setup controls........................................................................... 11
4. Special commands ................................................................... 13
MAINTENANCE ............................................................................. 16
1. Storage ...................................................................................... 16
2. Maintenance .............................................................................. 17
3. Inspection / Calibration ............................................................ 17
4. Dispatch / Transport ................................................................. 17
5. Repairs / Disposal .................................................................... 18
ADDITIONAL INFORMATION ....................................................... 19
Definition of terms ........................................................................ 19
Operation manual HELIO-STROB micro2
V. 11/2019
Page 1
Advertisement
Table of Contents
Related Manuals for ELMED HELIO-STROB micro2
Summary of Contents for ELMED HELIO-STROB micro2
-
Page 1: Table Of Contents
3. Inspection / Calibration ............17 4. Dispatch / Transport ..............17 5. Repairs / Disposal ..............18 ADDITIONAL INFORMATION ............19 Definition of terms ................ 19 V. 11/2019 Operation manual HELIO-STROB micro2 Page 1... -
Page 2: General Safety Instructions
these safety and operating instructions are maintained for future reference. the HELIO-STROB micro2 is used according to the intended purpose (see chapter Product description). the instruments are operated only if in perfect, fully functional condition. -
Page 3: Explanation Of Safety Symbols Used In This Manual
3. This symbol warns of exposure to optical radiation. 4. This symbol indicates information to be used for a better under- standing of processes. Operation manual HELIO-STROB micro2 Page 3... -
Page 4: Special Hazards
(e.g. pacemakers) cannot be com- pletely excluded. For safety reasons we rec- ommend that people wearing active implants are excluded from working with stroboscopes. Persons wearing active implants have expres- sively to be instructed in this regard. Page 4 Operation manual HELIO-STROB micro2... -
Page 5: Basic Rules On Safety Precautions
– as for laser. However, due to the general large radiation divergence and the lami- nar source expansion, performance LED do not have similar potential for danger as the bundled laser radiation. Operation manual HELIO-STROB micro2 Page 5... -
Page 6: Ec Declaration Of Conformity
This declaration shall be legally binding for the manufacturer. ELMED Dr. Ing. Mense GmbH, Heiligenhaus signed by Claudia Mense Managing Director... -
Page 7: Product Description

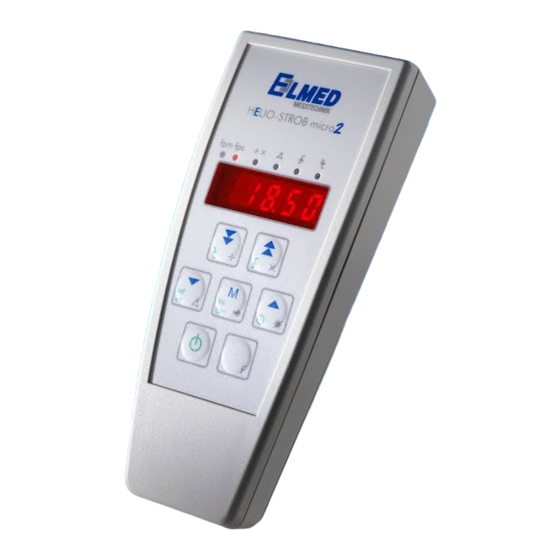

PRODUCT DESCRIPTION 1. Proper use The HELIO-STROB micro2 is an LED stroboscope (light flashing instrument) for industrial applications. This instrument is used to produce snap-shots of sequences which, due to the rapidness they proceed, are not perceivable by the human eye. -
Page 8: Technical Specifications
Protection class IP40 NiMH accumulators are not to be deeply discharged. To prevent this, the optical warning ACCU appears in the display and the device is automatically shut off. The same applies to standard batteries. Page 8 Operation manual HELIO-STROB micro2... -
Page 9: Operation
(see Mode 2). The ‘standby’ - mode is indicated by a red dot flashing at the lower right corner as a “reminder”. Reactivate the display by pressing any key (except for the on / off key). Operation manual HELIO-STROB micro2 Page 9... -
Page 10: Main Functions
‘repeat’ is activated. Increase flash frequency by 1 x increment Increase flash frequency by 50 x increments Decrease flash frequency by 1 x increment Decrease flash frequency by 50 x increment Page 10 Operation manual HELIO-STROB micro2... -
Page 11: Setup Controls
per second (red LED indication) Resolution: max. 2 decimal points (0.01 fps) Frequency indication (fpm) Indication [fpm] – flashes per minute (no red LED indication) Resolution: max. 1 decimal place (0.1 fpm) Operation manual HELIO-STROB micro2 Page 11... - Page 12 + 10 VDC max. 50 mA (Output) white 1 2 3 Trigger Input green 0 V (GND) brown To facilitate the connection of external encoders to the trigger jack, the delivery includes a ready-made cable. Page 12 Operation manual HELIO-STROB micro2...
-
Page 13: Special Commands
The key lock prevents the unit from switching on acci- dentally. By activation of the key lock the instrument set- tings are saved and the HELIO-STROB micro2 is switched off. The unit may be switched on again only if you unlock the keys. - Page 14 To repeat division / multi- is possi- plication activate ble, no intermediate steps required. The ini- spectively without tial value remains the pressing basic reference value. The respective division or multiplication factor is shortly displayed. Page 14 Operation manual HELIO-STROB micro2...
- Page 15 The alternatives are con- secutively indicated within a minimal value of 0.5° and a maximal value of 100 µs. Change duration by using the up and down keys (▲/▼). Store by switching off and Operation manual HELIO-STROB micro2 Page 15...
-
Page 16: Maintenance
Mode 2 back to the fre- quency indication. Store by switching off and MAINTENANCE 1. Storage If the HELIO-STROB micro2 is not used over more than four weeks, the following measures should be taken: Remove the battery from the instrument. ... -
Page 17: Maintenance
2. Maintenance According to the design, the HELIO-STROB micro2 is not suscepti- ble to disturbance. However, the following should be basically ob- served: Do not throw the instrument and do not expose it to heavy shocks. Keep the instrument in the delivered hard shell instrument case. -
Page 18: Repairs / Disposal
HE- LIO-STROB micro2 to the manufacturer. If your instrument requires inspection / repair or disposal, please send the unit DDU to: ELMED Dr. Ing. Mense GmbH Stroboskop-Service Weilenburgstr. 39 D-42579 Heiligenhaus... -
Page 19: Additional Information
Repeat – function Automatic function repetition of the key being pressed longer SAFE – Mode Instrument switch off and key lock activa- tion Phase shifting Random positioning of the object under observation (0° – 360°) Operation manual HELIO-STROB micro2 Page 19... - Page 20 Notes ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ Page 20 Operation manual HELIO-STROB micro2...
