Atop SE5404 Series Quick Start Manual

SE5404D Series
4-Port Serial Device Server
Quick Start Guide
Version 1.4 March 2013
This document is intended to provide customers with
brief descriptions about the product and assist customers
to get started. For detailed information and operation of
the product, please refer to the product user's manual in
the product CD or Atop website.
1. P
ACKAGING
Check whether your package contains following items:
◎
SE5404D/ SE5404D-TB / SE5404D-Sis
◎
Quick Start Guide with Warranty Card
◎
Product CD
◎
7-pin Terminal Block ( 2ESDVM-07P) x1
◎
Four 5-pin Terminal Block for COMs
(SE5404D-S5 / SE5404D-Sis only)
Optional Accessories：
◎
US Power Adapter
◎
EU Power Adapter
◎
Wall Mount Kit
◎
Grounding Cable
◎
Conductive DIN-Rail Kit 201EH731000005G
◎
Console Cable
◎
DB9 to TB5 Converter
2. H
ARDWARE
NOTE:
1. SE5404D (RS-232/422/485 DB9 without isolation ),
2. SE5404-TB (RS-232/422/485 TB5 without isolation)
3. SE5404D-Sis (RS-422/485 TB5 with isolation)
4. Press the Default button of SE5404D to reset to the
default value
PN: 89900377G

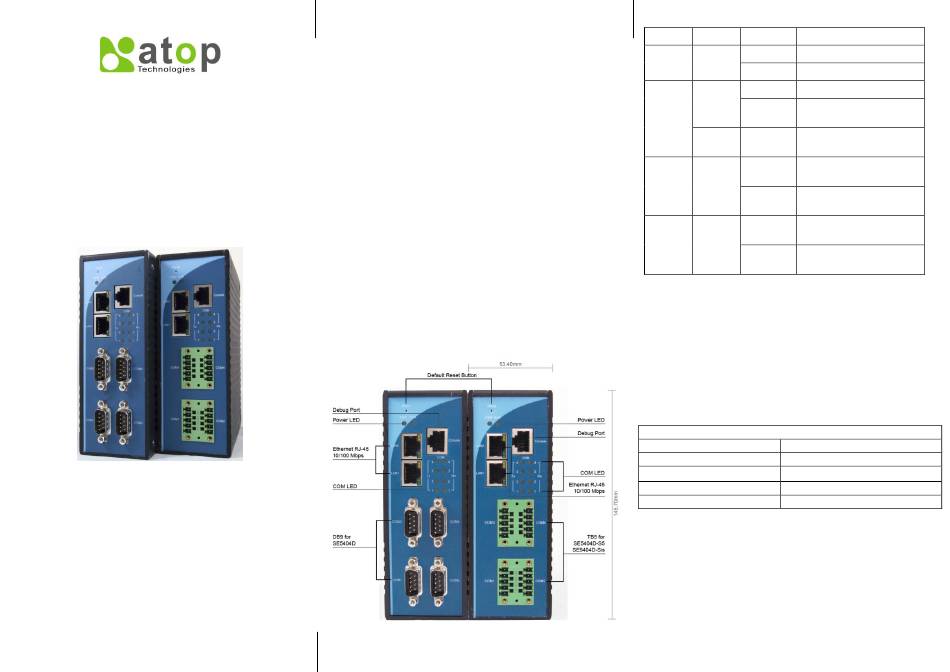

Figure 2.1. SE5404D Series interfaces
50500151120009G
50500151120019G
202EH731000003G
59906861G
50891971G
59906231G
D
ESCRIPTION
LED Indicators:
Name Color Status
Off Power is not connected
Power Green
On Power is connected
Off Ethernet Disconnected
Green
Data is transmitting on
Blinking
LAN Ethernet for 100Mbps
Data is transmitting on
Orange Blinking
Ethernet for 10Mbps
No data is transmitting on
Off
COM port
COM Green
Data is transmitting on
Blinking
COM port
System is not ready or
Off
halt
RUN Green
AP firmware is running
Blinking
normally
Installation Procedures:
Step 1: Connect SE5404D to power source
Step 2: Connect SE5404D to the Ethernet network. Use a
standard straight-through or cross-over Ethernet
cable Always make sure the PC is on the same
network subnet as SE5404D.
Step 3: Connect SE5404D's serial port to a serial device.
Step 4: Mount SE5404D to a Din Rail.
3 S S
OFTWARE ETUP
Default Settings
User Name: admin Password: null (blank)
LAN1
IP: 10.0.50.100
IP：
Mask: 255.255.0.0 Mask:
Gateway: 10.0.0.254 Gateway: 192.168.1.254
To Access and Configure SE5404D:
There are three ways to access SE5404D.
1. SerialManager Utility (included in the CD)
2. Web Browser
3. Telnet
Note that the PC and SE5404D should be in the same
subnet. If not, please your PC's network settings or use
SerialManager to change the network settings of
SE5404D.
Description
LAN2
192.168.1.1
255.255.255.0
