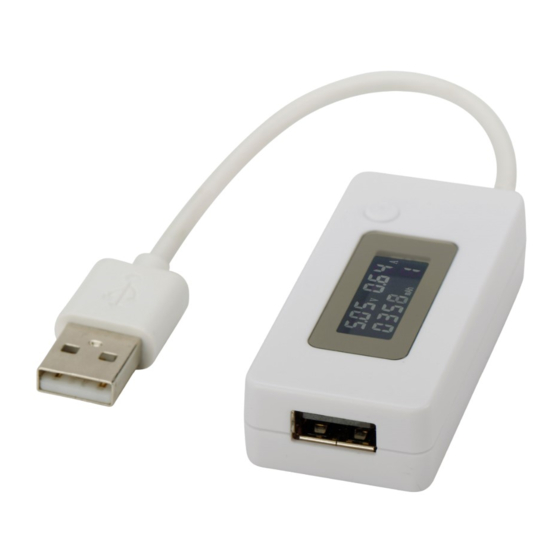

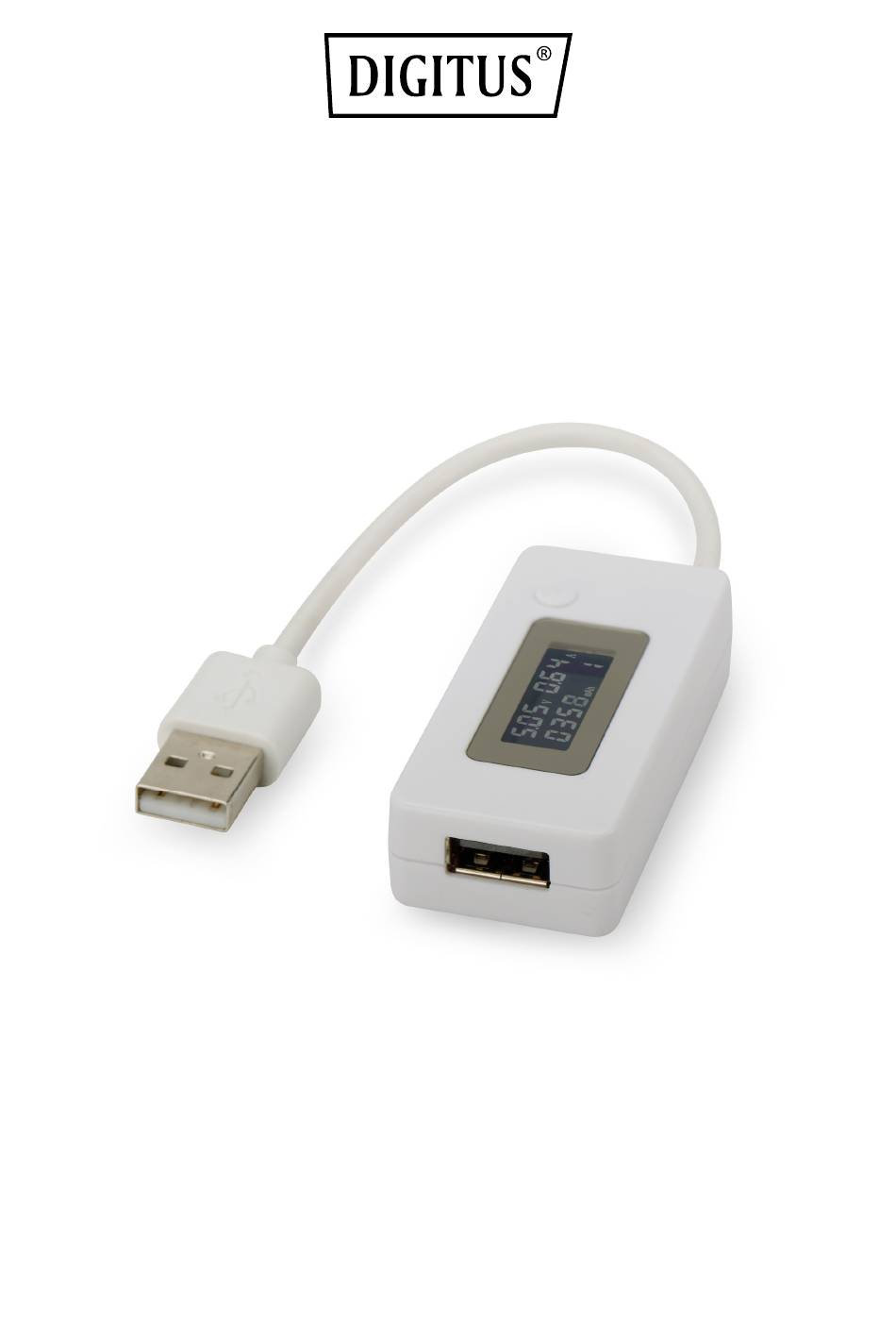

- Page 1 USB Power Monitor Quick Installation Guide DA-70611...
- Page 2 Performance Parameters INPUT voltage: 3V-7V The INPUT current: <3.4A The display shows voltage, current and discharge capacity Total in 10 groups which can be stored The electric current can be calibrated Function: Data communication Test voltage current: Plug in USB charger and insert the tester, which will directly read voltage current parameters. The device must have the regular USB connector for input, and a micro USB connector which can be used directly with any standard USB charger.
- Page 3 Setting Instruction Data clearance: Hold the button until the first data moving to next. Release the button. The data has been cleared automatically, and then skip to the next one. Data checking mode: Double-click the button (0.5S or less) enter to the data view mode, the backlight LED will flash, and click the button of display to the next data.
- Page 4 Application Diagram 2: Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the below mentioned manufacturer address. Warning: This device is a class B product.
