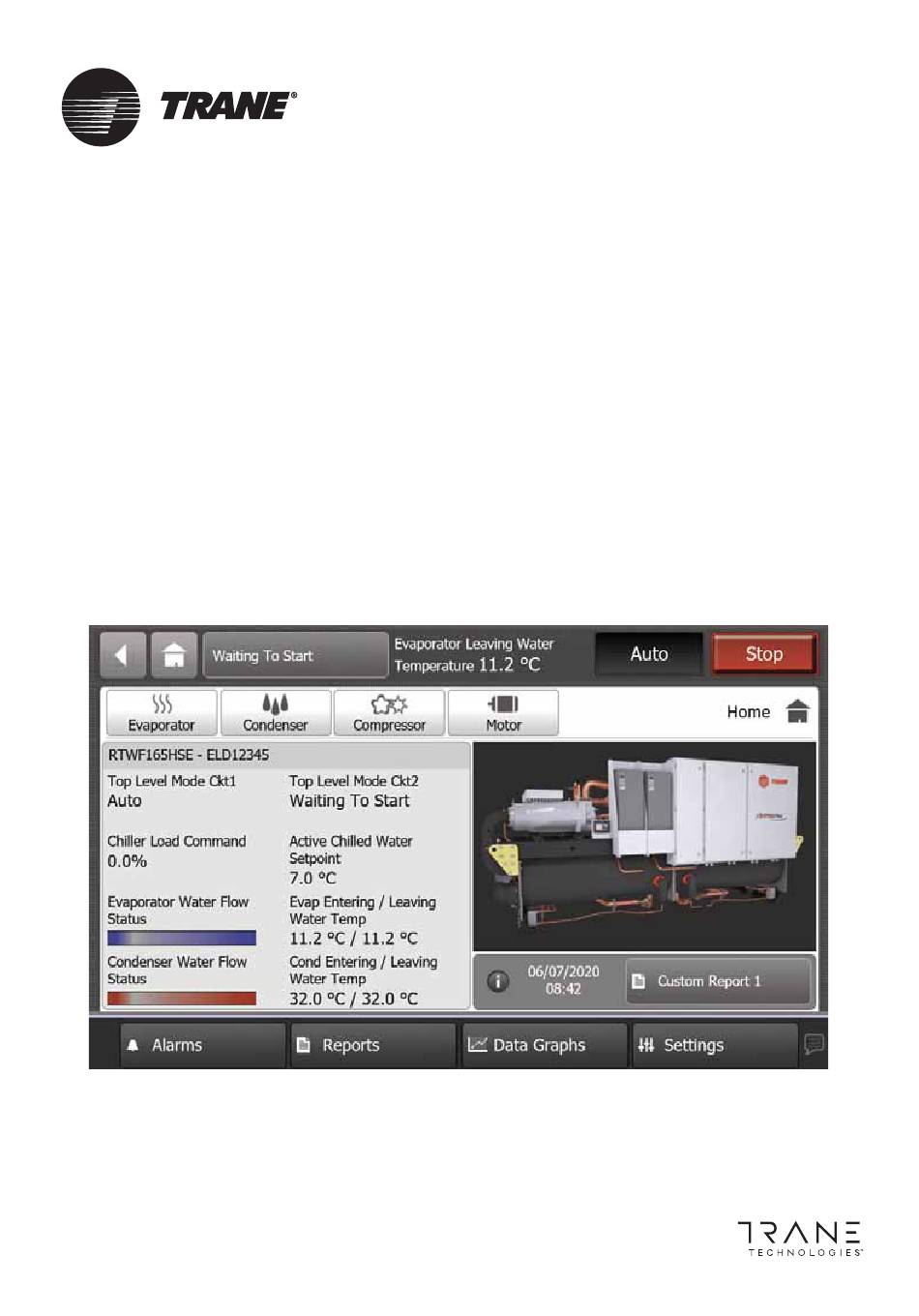

- Page 1 Tracer™ TD7 with Symbio™ 800 September 2020 CNT-SVU006A-GB Confi dential and proprietary Trane information Original instructions...
-
Page 2: Table Of Contents
BACnet Interfaces ................... 15 BACnet Testing Laboratory (BTL) Certifi cation ........15 ModBus Interfaces ................. 15 LED, Wiring and Port Descriptions ..............16 Status LED message ................17 Tracer TD7 Operator Interface ................. 18 Warnings and Alarms ..................19 Notes ......................... 20 CNT-SVU006A-GB... -
Page 3: General Recommendations
General Recommendations As you review this manual, keep in mind that: • All fi eld-installed wiring must conform to European guidelines and any applicable local codes. Be sure to satisfy proper equipment grounding requirements per European guidelines. • Compressor motor and unit electrical data (including motor kW, voltage utilization range, rated load amps) is listed on the chiller nameplate. - Page 4 General Recommendations WARNING! Hazardous Voltage - Pressurized Burning Fluid: Before removing compressor terminal box cover for servicing, or servicing power side of control panel, CLOSE COMPRESSOR DISCHARGE SERVICE VALVE and disconnect all electric power including remote disconnects. Discharge all motor start/run capacitors. Follow lockout/tagout procedures to ensure the power cannot be inadvertently energized.
-
Page 5: Installer-Supplied Components / Interconnecting Wiring
Installer-Supplied Components / Interconnecting Wiring Installer-Supplied Components Customer wiring interface connections are shown in the electrical schematics and connection diagrams that are shipped with the unit. The installer must provide the following components if not ordered with the unit: • Power supply wiring (in conduit) for all fi eld-wired connections. •... - Page 6 Installer-Supplied Components / Interconnecting Wiring Water fl ow proving When unit controller water fl ow proving is confi gured for a Paddle water Flow switch, it will require a high voltage binary input (110V-220V). When confi gured for a Thermal dispersion water fl ow switch, it requires a binary low voltage input (12-24V).
-
Page 7: Programmable Relays
Programmable Relays 4 programmable relays are provided for enunciation of certain events or states of the chiller, selected from a list of likely needs, while only using four physical output relays, as shown in the fi eld wiring diagram. The relays contacts are isolated Form C (SPDT), suitable for use with 120 VAC circuits drawing up to 2.8 amps inductive, 7.2 amps resistive, or 1/3 HP and for 240 VAC circuits drawing up to 0.5 amp resistive. - Page 8 Programmable Relays The output is true whenever the chiller has reached maximum capacity continuously for the Max Capacity Maximum Capacity Relay debounce time for either cooling or heating. The output is false when the chiller does not have all its available compressors running continuously for the debounce time.
-
Page 9: Low Voltage Wiring
Low Voltage Wiring Low Voltage Wiring The remote devices described below require low voltage wiring. All wiring to and from these remote input devices to the Control Panel must be made with shielded, twisted pair conductors. Be sure to ground the shielding only at the panel. - Page 10 Low Voltage Wiring External demand limit setpoint input (Optional) External demand limit setpoint allow to change the unit demand limit setpoint via an analog input. The input signal is confi gurable. Input Signal (2 VDC - 10 VDC) External demand limit setpoint <1 VDC Invalid [1 VDC , 2 VDC]...
-
Page 11: Active Control Setpoint Arbitrations
Low Voltage Wiring External unit capacity output (Optional) Heat Pump (Reversible Air cooled or Water cooled chillers) One analog output refl ects the actual capacity of the unit between 0 to 100% : 2 VDC output = 0% , 10 VDC output = 100% (max capacity). -
Page 12: Chilled / Hot Water Setpoint Reset
Low Voltage Wiring Chilled / Hot water setpoint reset The Automatic chilled/ hot setpoint reset function applies to the arbitrated water setpoint. Three type of Chilled water reset functions are possible in the TD7 setting. CWS’ = Active Chilled water setpoint (after reset) CWS = Original Chilled water setpoint (before reset) CWR = Amount of reset applied to the chilled water CWS’... - Page 13 Low Voltage Wiring Return Water Temperature Reset The Chilled water setpoint reset amount (CWR) is proportional to the difference between measured return and leaving chilled water temperature (TWE, TWL) It is defi ned as CWR = RESET RATIO * (START RESET – (TWE – TWL)) With limits: CWR ...
-
Page 14: Web User Interface And Time / Day Scheduling
Low Voltage Wiring Diagnostic If any sensor measurement needed to perform the currently selected chilled water reset type is invalid due to loss of communication or sensor failure, the desired CWR will be set to 0. The actual CWR is subject to maximum rate limits described earlier. -
Page 15: Smart Communication Protocol
Smart Communication Protocol LonTalk™ Interface (U60) Symbio800 provides an optional LonTalk™ Protocol interface between the chiller and a Building Automation System (BAS). An U60 module shall be used to provide Lon functionality between a LonTalk compatible network and the Chiller. The inputs/ outputs include both mandatory and optional network variables as established by the LonMark Functional Chiller Profi... -
Page 16: Led, Wiring And Port Descriptions
LED, Wiring and Port Descriptions Figure 1 illustrates the Symbio800 controller ports, LEDs, rotary switches, and wiring terminals. Bacnet MS/TP or Modbus RTU connection is done on terminal P1. Bacnet IP or Modbus TCP connection is done on Ethernet port 1. Link LED indicating Transmission (TX) and Reception (RX) communication signals of different communication ports. -
Page 17: Status Led Message
LED, Wiring and Port Descriptions Status LED message The seven segment status LED indicate operation of the Symbio800 module. In normal condition, the status LED is a rolling sequence of the three horizontal segments. Other message described by status LED are failure codes (Fxxx) and Update code (Uxxx). In case of failure, please call your local Trane Service representative. -
Page 18: Tracer Td7 Operator Interface
Tracer TD7 Operator Interface D7 is the unit operator interface for Symbio800 controller. It contains all information and functions needed to operators, service technicians, and owners. From TD7 main screen, it is possible to navigate to all useful control screens: 1 –... -
Page 19: Warnings And Alarms
Warnings and Alarms TD7 alarms section displays active alarms as well as alarms history. The ‘Target’ fi eld is indicating the area of action of the related alarm: • Compressor XY target impact a specifi c compressor and did not impact the other compressors present on the unit. -
Page 20: Notes
