Step
4
5
6
7
8
Disconnect tubing from a module
Follow the instructions below to disconnect and remove a piece of tubing from a
module.
ÄKTA pilot 600 Operating Instructions 29261688 AC

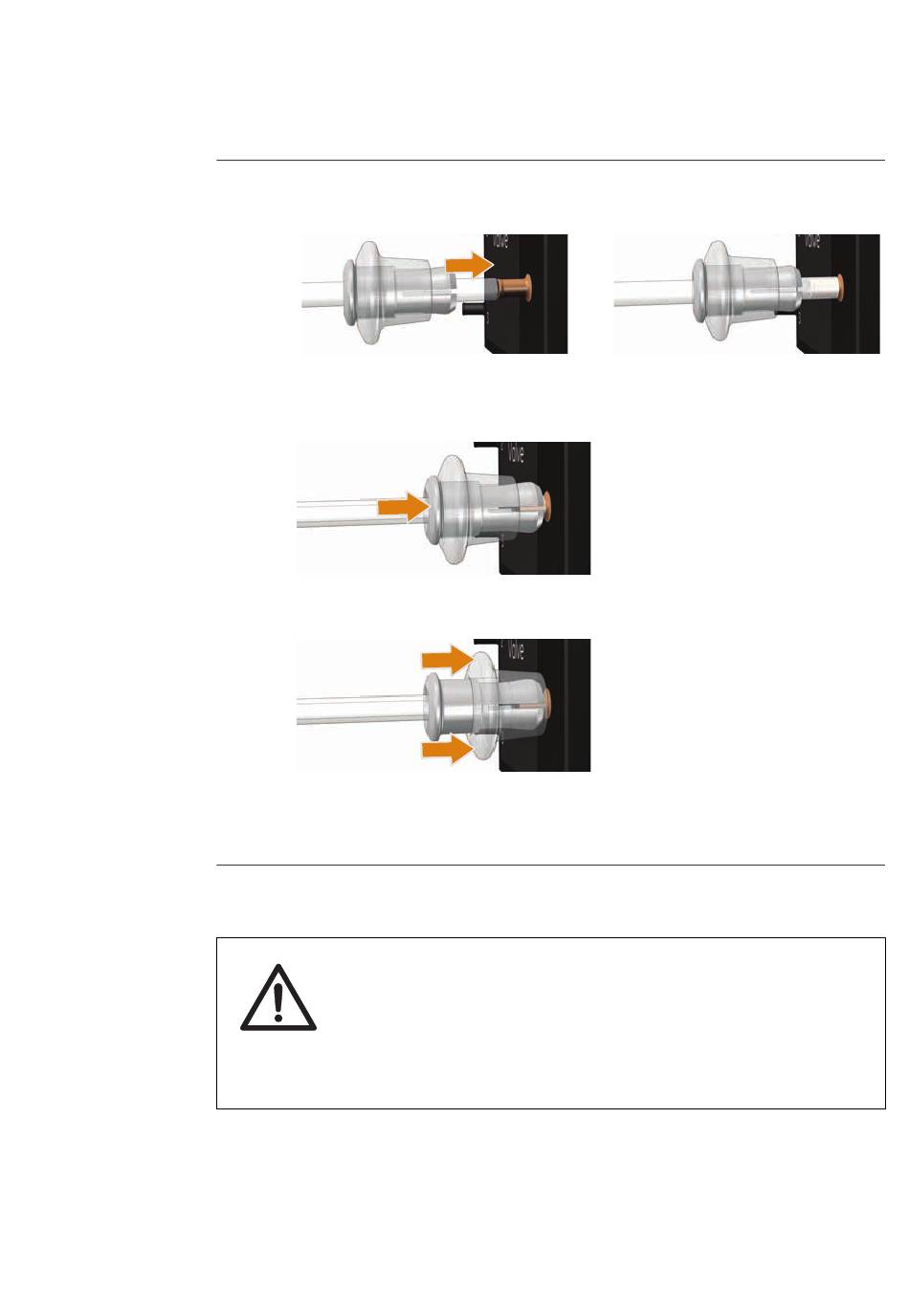

Action
Press the tubing end onto the nipple, and push it all the way to the module
front.
Press the center part of the connector against the module front until it snaps
into place.
Press the sleeve until it snaps into place and locks the connection.
Make sure that the tubing is not streched or kinked.
Run a test after connecting the tubing, to make sure that there is no leakage.
CAUTION
Always click End before before disconnecting any tubing, to
release all remaining pressure in the flow path. If the air trap is filled
it is recommended that you empty the air trap by selecting Start
Drain in the Air Trap Valve dialog box in the Process Picture.
4 Installation
4.2 Installing the ÄKTA pilot 600 system
4.2.3 Fit inlet and outlet tubing
