3 System description
3.8 UNICORN system control software
3.8.2 The System Control module
Color
Gray
Green dashed
Green

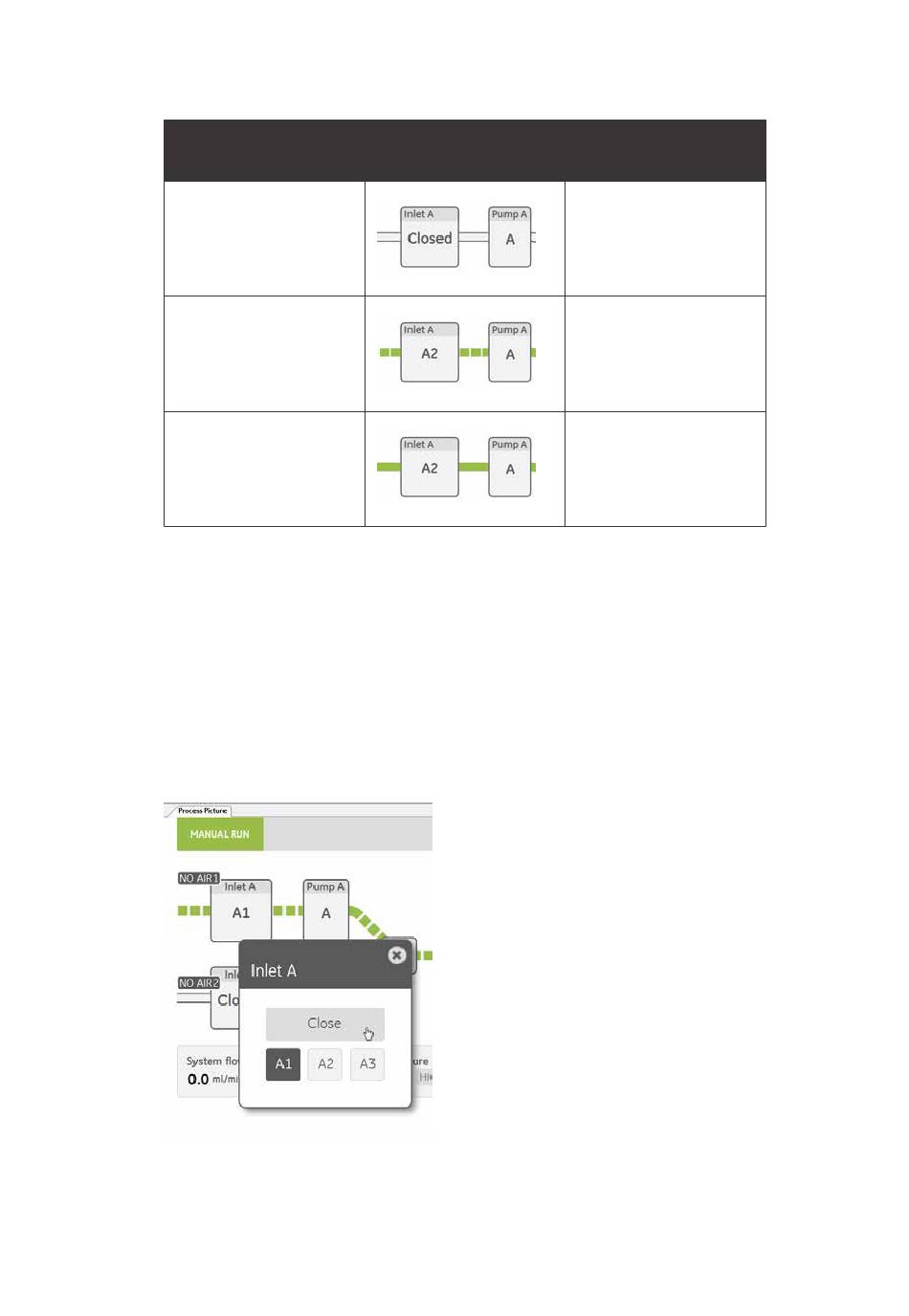

Example of dialog in the Process
For applicable flow path components, you can access settings by clicking the compo-
nent in the Processs Picture. The following illustration shows the dialog that appears
when you click Inlet A.
To open an inlet port, click one of the Valve Position buttons A1 to A3. The number of
inlet ports depends on the number of installed inlet valves.
To close the inlet, click Close.
54
Indication in
Process Picture
ÄKTA pilot 600 Operating Instructions 29261688 AC
Flow path state
Closed flow path
Open flow path
without flow
Open flow path with
flow
