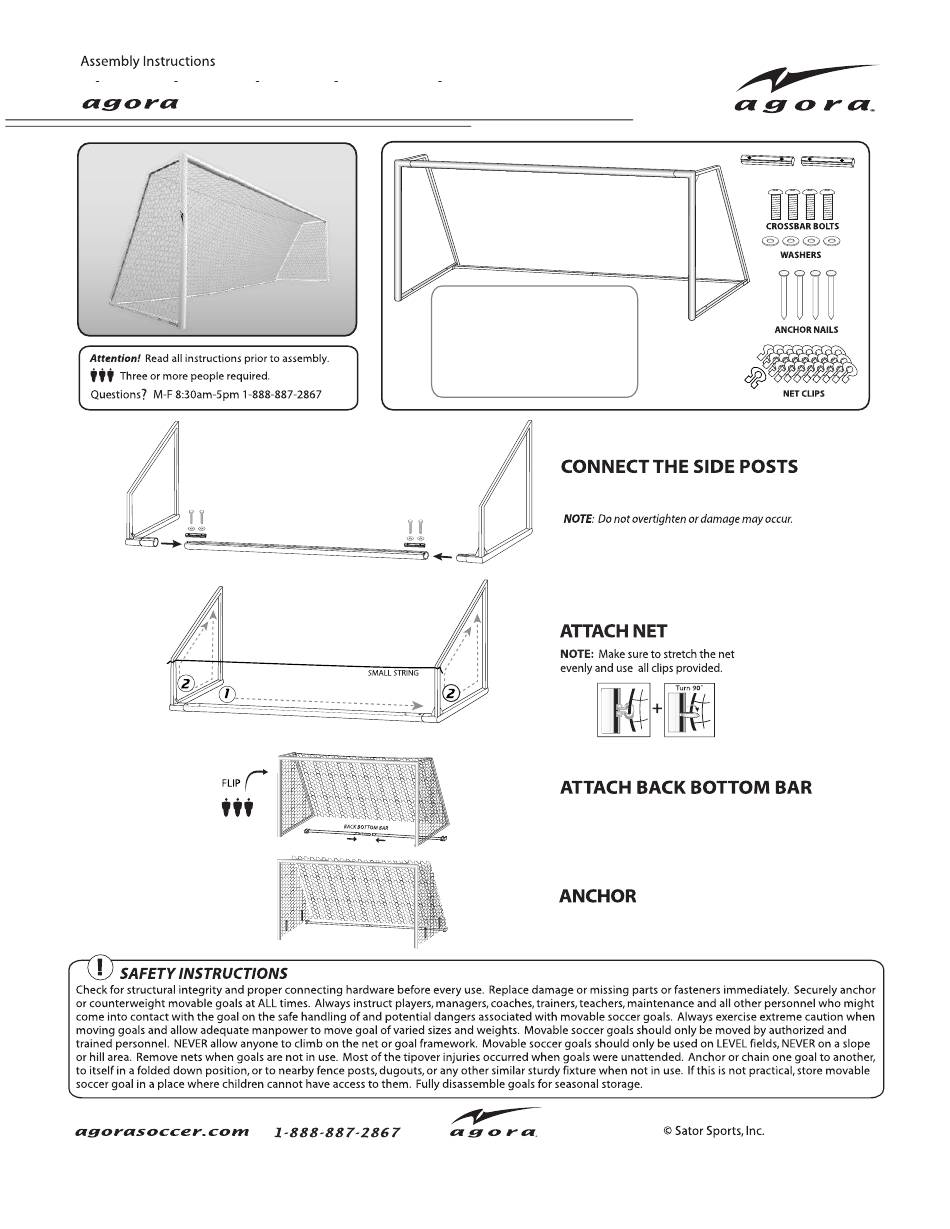

SA GCP406S, SA GCP612S, SA GCP618S, SA GCP721S, and SA GCP824S
CHANNEL PRO GOALS
CROSSBAR
SIDE
POST
BACK-BOTTOM BAR
DESCRIPTION
CROSSBAR
SIDE POSTS
BACK-BOTTOM BAR KIT
CROSSBAR BRACKETS
CROSSBAR BOLTS
(3/4" Button Head Allen Bolt)
WASHERS
ANCHOR NAILS
NET CLIPS
-
QUANTITY INCLUDED
1
1
2
1
(3 pieces + hardware)
2
4
4
4
1 SET
Insert crossbar bracket into crossbar and slide into side post.
Use anti-rust lubricant on bolts and washers then tighten.
-
Connect back bottom-bar and slide under goal.
Attach to goal with hardware. Attach net.
NOTE: For 4'x6' goal, back-bottom bar is a single
piece and does not require additional assembly.
CROSSBAR BRACKETS
Rev_2020-01-09
