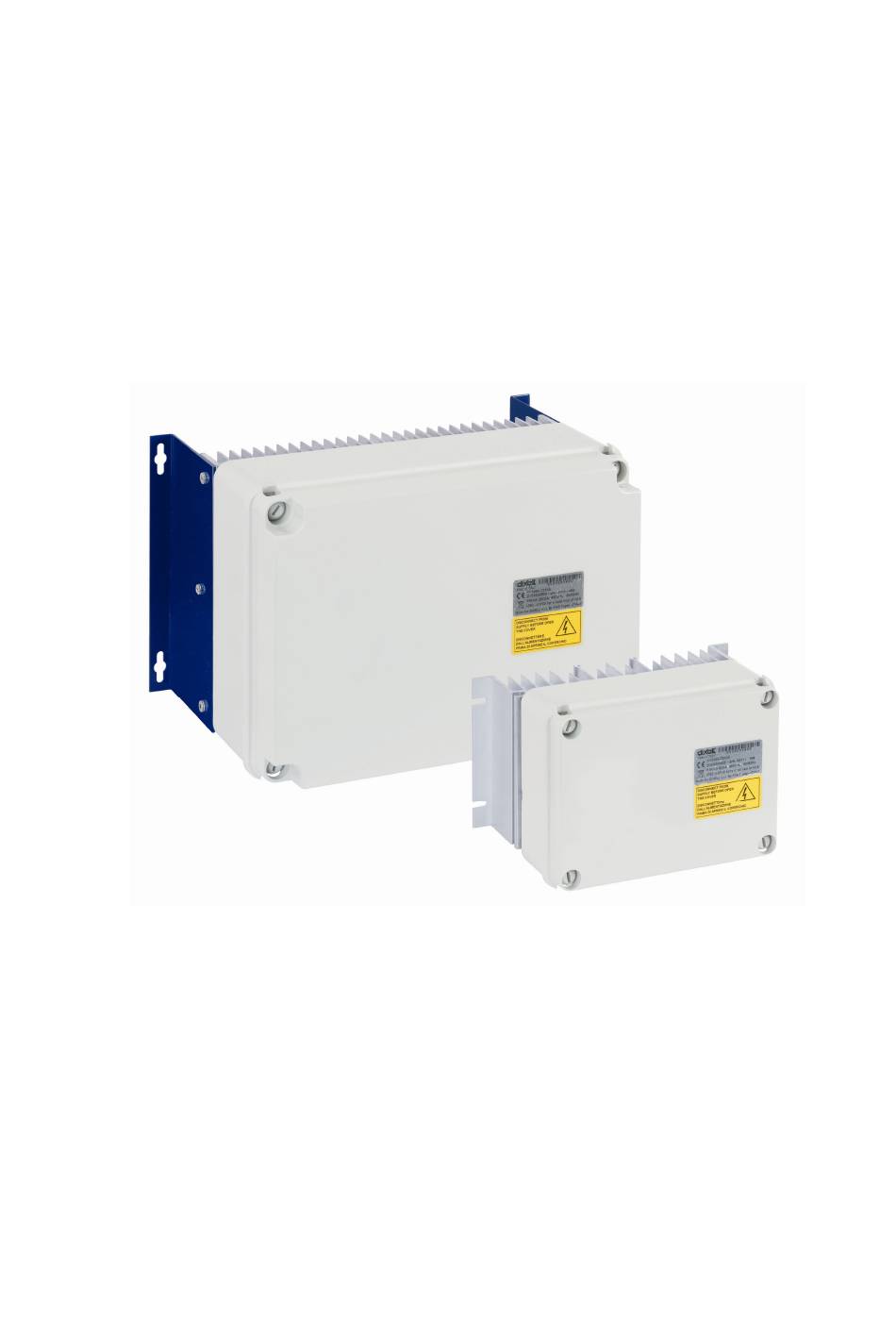

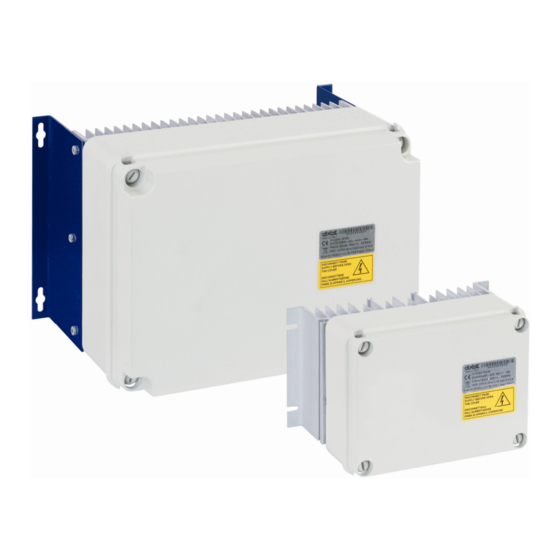

- Page 1 XV300K...
-
Page 2: Table Of Contents
CODES - MODELS ............................... 4 TECHNICAL SPECIFICATIONS ..........................4 STANDARD REFERENCES ............................5 MECHANICAL INSTALLATION ..........................5 ELECTRICAL INSTALLATIONS ..........................6 COMMAND TERMINALS ............................7 TYPICAL CONNECTIONS BETWEEN DIXELL INSTRUMENTS AND XV300K ........... 10 CHILL ........................................10 FAMILY ........................................11 FAMILY XM600K ........................................ -
Page 3: Preliminary Check - Guarantee - Recycling
Before installing the XV300K regulator read the manual and follow the all instructions carefully. In compliance with European regulations and the EMC rules and regulations we repeat that the XV300K regulator is designed to be installed inside a machine or a standard electrical cabinet and is therefore considered a component. -
Page 4: Codes - Models
Phase lost, inside overheating. WARNING: the regulator restores automatically PROTECTIONS Protection against power surges Class II ACTION-DISCONNECTION Type 1(Y). Residual motor current < 15mA SOFTWARE CLASS Class A ELECTRICAL For XV308K, XV312K, XV320K, XV328K and XV340K: class X. CONNECTION NORMS 1592016100 XV300K GB r.1.0 03.06.2011.doc XV300K 4/13... -
Page 5: Standard References
EN 61000-2-4 and EN 61000-3-12. MECHANICAL INSTALLATION The XV300K regulator must be mounted to walls vertically, in order to guarantee adequate dispersion of heat in the heatsink. Avoid positioning it near heat sources and keep out of direct sunlight. The regulator has covering IP55 but must be protected from sprays of water, oil, corrosive liquids, deposits of metallic dust and gas. -
Page 6: Electrical Installations
Extrarapid fuse (A) 8000 15000 I²t (A²S) max energy c.c. To connect wiring to the spring terminals, apply leverage with a screwdriver on the lever or on the upper hole to open the terminal. 1592016100 XV300K GB r.1.0 03.06.2011.doc XV300K 6/13... -
Page 7: Command Terminals
Ground for command shielding * XV308K doesn’t contain relay. DL1: Allarm Led DL2: Supply Led XV308K T3/W Motor T2/V T1/U PWM 5/10V 5Vdc open 10Vdc closed +10Vdc 0..10Vdc / pwm (+) 0Vdc pwm (-) 4..20mA 1592016100 XV300K GB r.1.0 03.06.2011.doc XV300K 7/13... - Page 8 MOTORS 0..10Vdc / pwm (+) 0Vdc / pwm (-) T1/U 4..20mA T2/V SHIELD T3/W GROUND Bridge S6: PWM 5/10V 5V = OPEN 10V = CLOSE T1/U MOTORS KLIXON SERIES T2/V T3/W GROUND MOTOR 1592016100 XV300K GB r.1.0 03.06.2011.doc XV300K 8/13...
- Page 9 1592016100 XV300K GB r.1.0 03.06.2011.doc XV300K 9/13...
-
Page 10: Typical Connections Between Dixell Instruments And Xv300K
TYPICAL CONNECTIONS BETWEEN DIXELL INSTRUMENTS AND XV300K Please read carefully the operative manuals (downloadables from Dixell website) of the following described Dixell devices in order to have further information about parameters programming. NOTE: please pay attention to the wirings!! iCHILL family If you are using a controller of the iCHILL family such as the IC110CX, the IC111CX, the IC120CX or the IC121CX, the connections can use also a PWM, a 0..10V or a 4..20mA signal command. -
Page 11: Ipro Family
If you are using a controller of the IPRO series, it is possible to use a 4..20mA or a 0..10VDC signal command. NOTE: it is not possible to use the PWM signal command when an iPRO device is used 1592016100 XV300K GB r.1.0 03.06.2011.doc XV300K 11/13... - Page 12 Connection with 0..10V signal Connection with 4..20mA signal 1592016100 XV300K GB r.1.0 03.06.2011.doc XV300K 12/13...
-
Page 13: Xm600K Family
XM600K family In this case it is possible to use both 4..20mA or 0..10V signal command to control a XV300K. Follows am example of such connections: Connection with 4..20mA signal Connection with 0..10V signal XC645CX In this case it is possible to use both 4..20mA or 0..10V signal command to control a XV300K.
