cashco RANGER QCT Installation, Operation & Maintenance Manual

Rotary control valve body assembly flanged or flangeless design

Advertisement

Quick Links

ISO Registered Company
I. DESCRIPTION AND SCOPE

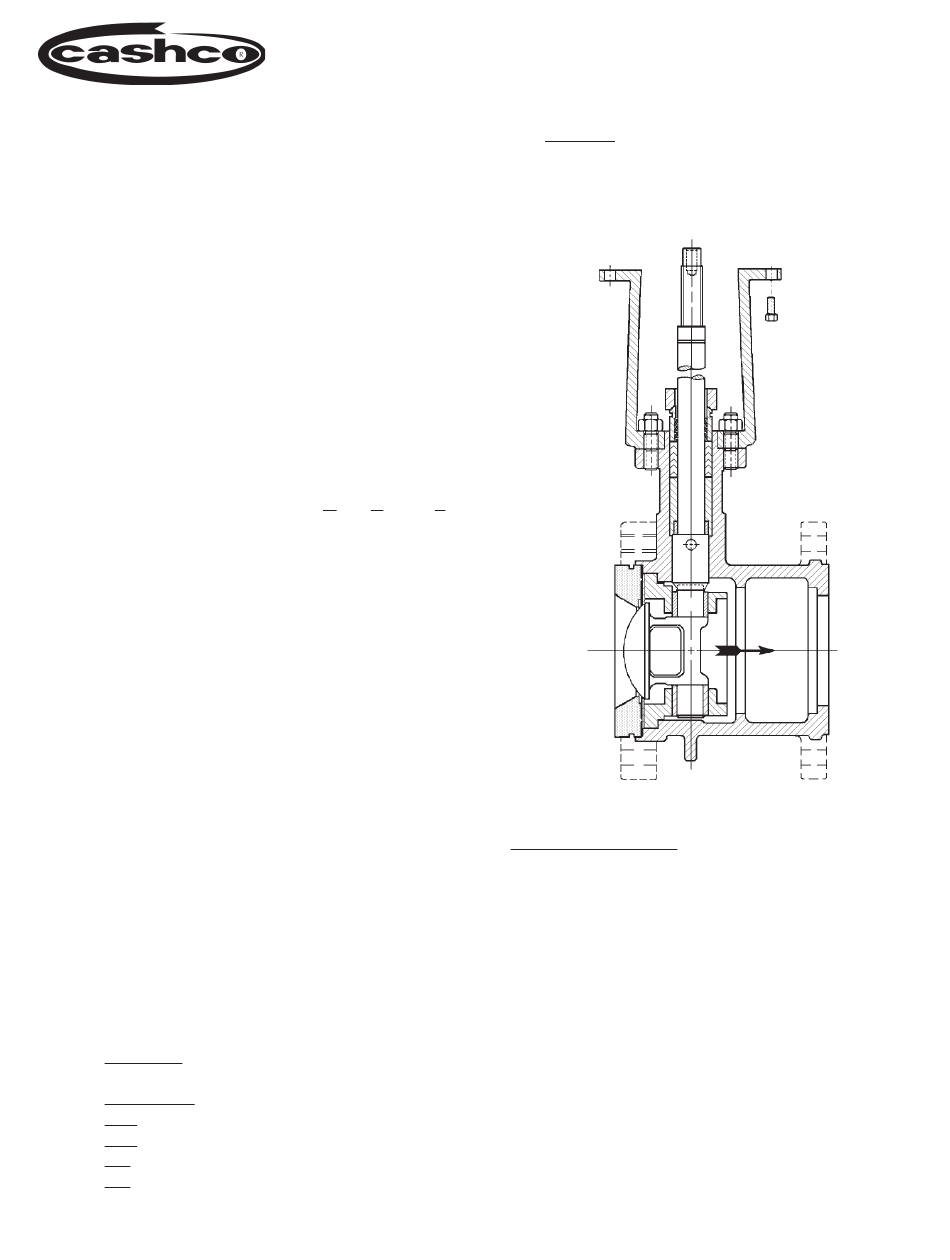

This manual covers the body assembly of the Cashco
Ranger QCT. Available sizes include 1", 1-1/2", 2",
3", 4", 6" and 8" (DN25, 40, 50, 80, 100, 150, 200).
Flangeless DI bodies fit 150 and 300 lb. RF flanges.
Flangeless CS and SST bodies, all sizes, fit 150,
300 and 600 lb. RF flanges. Integral flanged CS and
SST bodies, sizes 1" through 3", mate with 150, 300
and 600 lb. RF flanges. Integral flanged CS and SST
bodies, sizes 4", 6" and 8", mate with 150 and 300 lb.
RF Flanges. All sizes of flangeless construction may be
installed between PN40 flang es. Quick Change Trim
(QCT) is furnished as a stan dard feature and allows
use of several seal re tain ers and inserts to vary orifice
size, help control cav i ta tion and reduce noise. All trims
use 90° plug rotation. Dis as sem bly, in spec tion and
reassembly of the trim can be accomplished easily
without disturbing the packing, linkage or po si tion er
calibration. Trim parts are self-centering.
Either of Cashco's pneumatically actuated actuators,
Model 48 and Model 148, can be mounted to the
Ranger QCT body.
II. REFERENCES
Refer to Technical Bulletin Ranger-TB for complete
tech ni cal specifi cations coupled with either Cashco
Actuator Model 48 or 148.
www.cashco.com/techbulletins/ranger.pdf
Refer to following Installation, Operation & Main-
te nance Manuals (IOM's) for either actuator and/or
devices that maybe mounted to a Model Range body:
Actuators: www.cashco.com/IOM/48.pdf
www.cashco.com/IOM/148.pdf
Positioners:
P/P: www.cashco.com/techbulletins/73.pdf
P/P: www.cashco.com/techbulletins/9540r.pdf
I/P: www.cashco.com/techbulletins/srd991.pdf
I/P: www.cashco.com/iom/PS2iom.pdf
INSTALLATION, OPERATION & MAINTENANCE MANUAL (IOM)
RANGER QCT
ROTARY CONTROL VALVE BODY ASSEMBLY
FLANGED OR FLANGELESS DESIGN
SECTION I
SECTION II
ABBREVIATIONS
ATC-FO – Air-to-Close, Fail Open
ATO-FC – Air-to-Open, Fail Close
CCW – Counter-Clockwise Rotation
CS – Cast Carbon Steel
CW – Clockwise Rotation
CWP – Cold Working Pressure
DIR – Direct Acting
DI – Ductile Iron
IAS – Instrument Air Supply
IOM – Installation, Operation and Maintenance
LOAD – Positioner Output Air Pressure
REV – Reverse Acting
RF – Raised Face
SIG – Output Signal from Instrument
SST – Cast or Wrought 316 Stainless Steel
V – Vent
Manual
IOM-Ranger
02-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RANGER QCT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for cashco RANGER QCT

  • Page 1 FLANGED OR FLANGELESS DESIGN SECTION I I. DESCRIPTION AND SCOPE This manual covers the body assembly of the Cashco Ranger QCT. Available sizes include 1", 1-1/2", 2", 3", 4", 6" and 8" (DN25, 40, 50, 80, 100, 150, 200). Flangeless DI bodies fit 150 and 300 lb. RF flanges.
  • Page 2: Installation

    See Figure 2 and Ta ble 1. 2. Ranger QCT valve with actuator is not Undue piping stress/strain or bending rec om mend ed for installation with the actuator torques may not be transmitted through the ori ent ed down wards.
  • Page 3 After installation in piping, loosen locking le ver (59) and turn handwheel (58) CCW DO NOT IN STALL ANY RANGER QCT VALVE WITH to fully open the plug (6). THE PLUG IN THE OPEN POSITION. The cage and seals b.
  • Page 4 300-600 3/4"-10 9.00" D. Body Installation: 5/8"-11 9.25" 2" The Ranger QCT body can be installed be tween 300-600 5/8"-11 9.25" ANSI Class 150, 300 or 600 lb. RF or FF flanges 5/8"-11 10.50" or their ISO equivalent of PN20, 50 or 100. Socket 3"...
  • Page 5: Packing Check

    (7) to change internal trims. NOTE: sealant or pipe dope. Plug (6) must be in the closed position to remove the trim. 4. Valves originally supplied per Opt-55 require spe cial cleaning procedures. Refer to Cashco Specification No. S-1134 for details. When in IOM-Ranger...
  • Page 6 1. Position valve on a fl at work sur face with the 4. Remove the seal retainer screws (18) and actuator assembly (AA) oriented vertical. washers (23) and (47) NOTE: If actuator assembly (AA) has been 5. Remove the seal retainer (3) (full or i fi ce, re moved, rotate stem (7) to close plug (6), and re duced, anti-cavitation, lo-noise), seal re tain er proceed with Steps 4 through 8.
  • Page 7 2. If at the body assembly (BA) level, ensure “Tongue” on plug (6) stub shaft, that the stem sub as sem bly (7) is pulled back to engage with stem assembly (7) into the bonnet of the body (1) so that the “groove”.
  • Page 8 Cage (2) Mechanical Stop Plug (6) Sizes 1", 1-1/2", 3", 6" & 8" (DN25, 40, 80, 150 & 200) Cage (2) FIGURE 8: Typical Seal Assembly 9. I n s t a l l w a s h e r s ( 2 3 ) , B e l l e v i l l e washers (47) (convex side up)
  • Page 9 1. Remove the actuator as sem bly (AA) from the Initial Setting Maximum Wear Position Position - TYP -Adjustment Required - TYP valve body as sem bly (BA). Refer to Ac tu a tor Max Wear main te nance manuals IOM-48 or 148. 0.050"-0.060"...
  • Page 10 For Non-Live-Loaded Packing Con struc tion: a. Remove two packing flange stud nuts (22) and two cap screws (19) on the 1", 1-1/2" and 2" sizes, or four nuts (22) on the 3", 4", 6" and 8" sizes. b. Pull yoke (12), packing flange (14), pack ing follower (15) and follower bushing strip (16) off DIMENSIONS over end of stem (7).
  • Page 11 5. Proceed to Subsection G. for installation of pack ing (13). F. Stem Reassembly – Trim Removed from Body 1. Install retainer sleeve subassembly (8) and stem subassembly (7) in ac cor dance with Subsection E, Ar ti cles 1 through 3, pre vi ous. Standard TFE Rotate stem (7) to plug's (6) closed po si tion.
  • Page 12 into the stuffing box similar to the lower Place each spring washer (27) stack over braided ring (13.4) of Step 4.b. Leave its packing stud (21) oriented as shown packing follower (15) in position. in Figure 9. Place the packing flange (14) over the Place each spacer ring (29) over its stem's (7) end and over the packing studs pack ing stud (21) and spring washer stack...
  • Page 13: Pressure Test

    H. Slurry Trim – Opt-AS: J. Pressure Test: 1. Install the trim in the body (1) per Section IV, 1. Cashco recommends that a pressure integrity test be performed following reassembly when the pack ing set (13) has been replaced.
  • Page 14 A. General: pro ce dure as required. 1. Ensure that the Ranger QCT unit has been Always “heat” or “cool” down the system pip ing properly adjusted and calibrated, including SLOW LY by opening the control valve station the positioner if installed, per actuator bypass valve in small in cre ments.
  • Page 15: Troubleshooting Guide

    SECTION VI VI. TROUBLE SHOOTING GUIDE The information that follows is specific to address prob lems related to the valve body assembly. Refer to the Rotary Actuator Maintenance Manual IOM-48 or 148 for issues related to valve travel, bench range, calibration, etc. 1.
  • Page 16 3. Valve exhibits “excess” seat leakage. NOTE: The Ranger QCT incorporates both a metal seal and a soft seal in many trim designs. For some options and trim designs the soft seal is omitted. Soft seals are never used in “reverse” flow direction.
  • Page 17 4. Premature Packing Leakage. Possible Cause Remedy Over-temperature. Remove insulation along body to allow direct contact with ambient air. Replace standard packing with high-temp. packing - re quires positioner. Improper packing orientation. Ensure correct stack up of packing pieces. Determine if packing is being exposed to a vacuum at any time.
  • Page 18: Section Viii

    Cashco, Inc. does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and maintenance of any Cashco, Inc. product remains solely with the purchaser.
  • Page 19 15.1 Line A Line B 15.1 “Line A” “Line B” 15.2 Critical Finish Zone Body "X" Size Dimension Critical .022 1"-2" Finish "X" 3"-6" .040 Area Item No. Part Description Item No. Part Description Body Packing Follower Stem Subassy. Follower Bushing Strip ‡...
  • Page 20 3", 4", 6" & 8" YOKE Front-End Back-End Integral Flanged Flangeless BA – Body Assembly - Side View - BA – Body Assembly - Front View Std. Flow Direction Item No. Part Description Item No. Part Description Body Stud (Packing Flange) Cage Nut (For Short Studs &...
  • Page 21 FIGURE 15 1", 1-1/2" & 2" Yoke FIGURE 16 Anti-Cavitation Seal Retainer or LNA/D Lo-Noise Seal Retainer Recess for washer (23) Centerline of valve stem (7) NOTE: Seat retainer slot axis is always per pen dic u lar to stem axis. FIGURE 17 FIGURE 18 Abrasion Sleeve...
  • Page 22 FIGURE 20 Ranger Control Valve Line Bolting FIGURE 22 Jammed Packing * Used with 1-1/2"-8" AT1, AT2 & AT4 Trim FIGURE 21 Slurry Trim FIGURE 23 ATC-FO Actuator Without Handwheel Assy. IOM-Ranger...
  • Page 23 ATEX 2014/34/EU: Explosive Atmospheres and Cashco Inc. Products Cashco, Inc. declares that the products listed in the table below has been found to comply with the Essential Health and Safety Requirements relating to the design and construction of products intended for use in potentially explosive atmospheres given in Annex II of the ATEX Directive 2014/34/EU.
  • Page 24 5100, 5200, 5400 ,5500 4100, 4200, 4300, 4400, 4500, 4600 MISC 764P/PD, 764-37, 764T Cashco, Inc. Cashco GmbH Cashco do Brasil, Ltda. P.O. Box 6 Handwerkerstrasse 15 Al.Venus, 340 Ellsworth, KS 67439-0006 15366 Hoppegarten, Germany Indaiatuba - Sao Paulo, Brazil...
