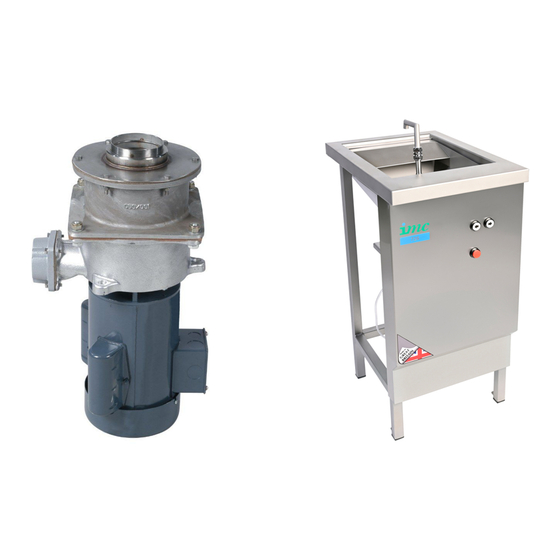

700 SERIES FOOD WASTE DISPOSERS
ECN 4825 February 2021
Advertisement
Table of Contents
Related Manuals for IMC 700 Series
Summary of Contents for IMC 700 Series
- Page 1 700 SERIES FOOD WASTE DISPOSERS Installation, Operating and Servicing Instructions Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ ________________________________ _______ A34/006 R7 ECN 4825 February 2021...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ......................2 IMPORTANT INFORMATION ................3 DELIVERY ......................4 INTRODUCTION ....................4 INSTALLATION ..................... 4 PROCEDURE ......................4 Waste Outlet Connection ..................5 WATER SUPPLY ....................6 ELECTRICITY SUPPLY CONNECTION ............... 6 COMMISSIONING ....................7 USAGE ........................7 OPERATION...................... -
Page 3: Important Information
IMPORTANT INFORMATION Read these instructions carefully before using this product, paying particular attention to all sections that carry warning symbols, caution symbols and notices. Ensure that these are understood at all times WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. -
Page 4: Delivery
For the installer: These instructions contain important information designed to help the user obtain the maximum benefit from the investment in an IMC food waste disposer. Please read them carefully before starting work, and consult the supplier in the event of any queries. -
Page 5: Waste Outlet Connection
Figure 2 – 725 Tabletop cutout details Waste Outlet Connection All 700 Series Disposers have a 2” BSP female threaded outlet which is designed to be connected to 54mm copper or plastic piping. The size of the waste outlet must not be reduced. A running trap should be fitted although ‘P’ or ‘S’ type traps can be used. -
Page 6: Water Supply
Omission of the starter eliminates overload protection for the motor and will invalidate the guarantee. The 700 Series Disposers should be connected to a 30A isolator providing at least 3mm separation in all poles. The table below illustrates typical fuse ratings for an ambient temperature of 25°C to 35°C. -
Page 7: Commissioning
USAGE The 700 series disposers are designed for the disposal of food waste. Fat can be safely disposed of provided that it has solidified. Non-food waste may also be disposed of in small quantities providing they are mixed in with the food waste. -
Page 8: Operation
OPERATION 723 Disposer Turn on the cold water tap to medium flow. Press the START button. NOTE units are reversing and have two start buttons, one for each direction, use them alternately. Feed in the food waste and leave the machine running until the noise of grinding ceases. -
Page 9: Releasing A Jam
Food Waste Disposers can jam under overload or if unsuitable materials are placed inside. IMC machines are designed to withstand this and no damage will normally result as the machine will switch itself off. It is necessary to clear the jam... -
Page 10: Water Flow Control (Optional Extra)
WATER FLOW CONTROL (OPTIONAL EXTRA) Your IMC Food Waste Disposer is equipped with a device with which the operator can adjust the volume of water that flows through the Food Waste Disposer whilst it is processing food waste. To reduce water flow, simply turn the water control knob to the left i.e. anti- clockwise. -
Page 11: Cleaning
Clean down thoroughly after use especially inside the hopper. Unscrew the interlock knob and open the baffle to gain access internally. Cleaning is assisted by the use of a low pressure spray, an IMC Pre-Rinse Spray or a Reel-Kleen retractable hose reel. -
Page 12: Fault Diagnosis
FAULT DIAGNOSIS Machine does not start Cause Action Electrical supply is not turned on. Switch on supply. The fuses have blown or the circuit Call site electrician to change fuse or breaker has tripped. reset circuit breaker. If problem persists contact service personnel. -
Page 13: Guarantee
GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. The guarantee does not cover: Accidental damage, misuse or use not in accordance with the manufacturer’s instructions. -
Page 14: Service Information
SERVICE INFORMATION For help with the installation, maintenance and use of your Lincat equipment, please contact our service department: UK: 01522 875520 For non-UK customers, please contact your local Lincat dealer All service work, other than routine cleaning should be carried out by one of our authorised service agents.
