Hythe Wall Mounted TV Stand/Credenza
Model 5426437

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hythe 5426437 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teknik Hythe 5426437

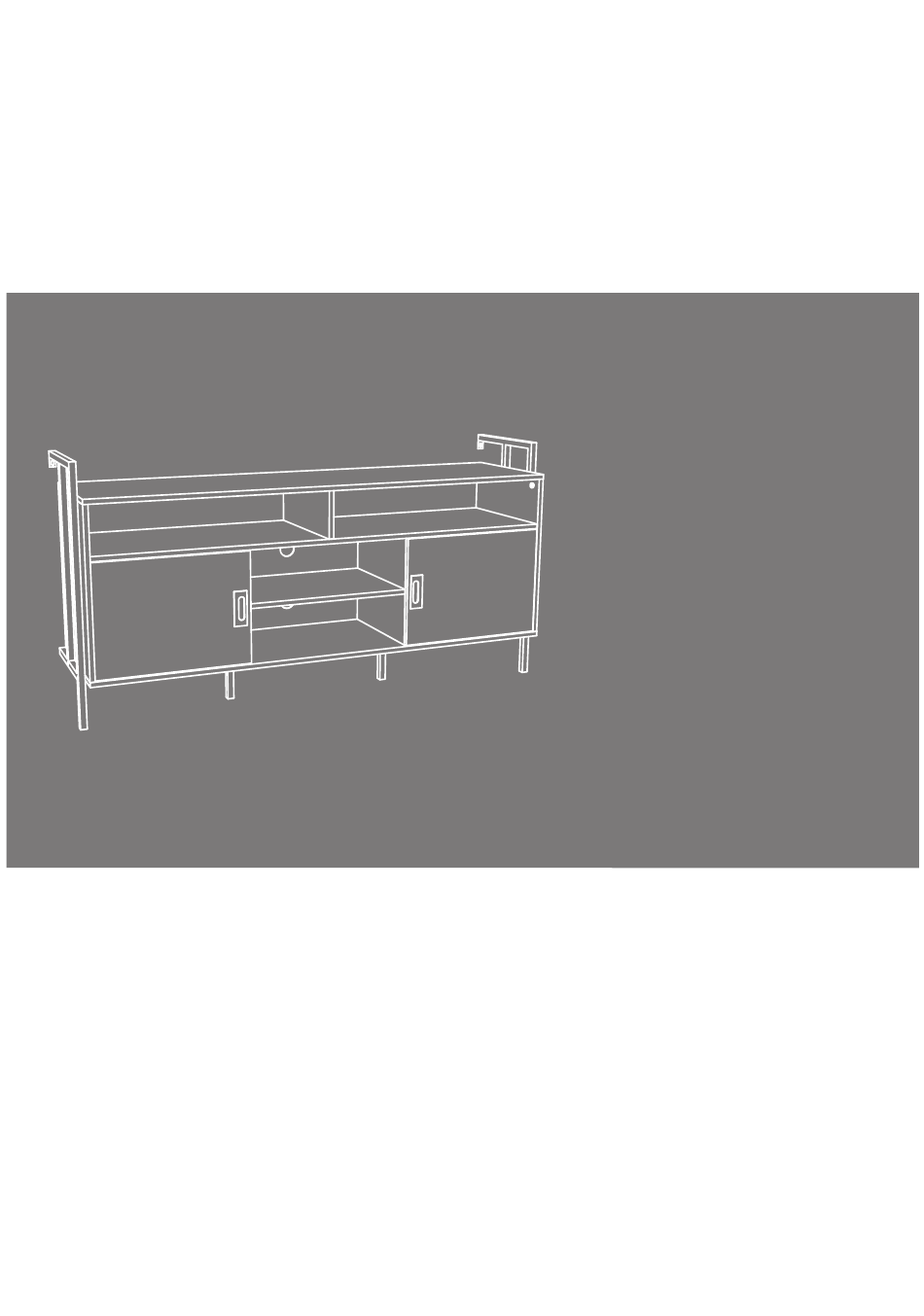

  • Page 1 Teknik Your holder for all things awesome. Hythe Wall Mounted TV Stand/Credenza Model 5426437...
  • Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-20 Hammer Not actual size Electric drill with 5/16" bit (ONLY in indicated step) WARNING Use of a TV that is too heavy or large is hazardous. A TV that is too heavy will create a risk of a tip-over that can cause severe injury or death.
  • Page 3 Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. TOP (1) RIGHT UPRIGHT (1) FRAME (2)
  • Page 4 Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. APPLIQUE CARD - 1 HIDDEN CAM - 16 CAM SCREW - 16 WOOD DOWEL - 16 HINGE - 4 BUMPER CARD - 1 L-WRENCH - 1 WARNING LABEL - 1 PULL - 2...
  • Page 5 Hardware Usage Guide HOW TO USE A HIDDEN CAM & CAM SCREW OR CAM DOWEL NOTE: Various CAM SCREWS or a CAM DOWEL may be used. Turn the CAM SCREW or gently tap the CAM DOWEL until the shoulder is against the surface of the part.
  • Page 6 Step 1 Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Push six HIDDEN CAMS (1) into the LARGE SHELF (B) å and ENDS (C and D). Turn eight CAM SCREWS (2) into the LARGE SHELF (B) å...
  • Page 7 Step 2 Insert two WOOD DOWELS (3) into the ENDS (C and D). å Fasten the ENDS (C and D) to the LARGE SHELF (B). å Tighten four HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the ENDS insert å...
  • Page 8 Step 3 Push two HIDDEN CAMS (1) into the SMALL UPRIGHT (H). å Insert one WOOD DOWEL (3) into the SMALL UPRIGHT (H). å Fasten the SMALL UPRIGHT (H) to the LARGE SHELF (B). å Use two 1-9/16" PAN HEAD SCREWS (13). NOTE: You should start each SCREW a few turns before å...
  • Page 9 Step 4 Turn six CAM SCREWS (2) into the TOP (A). å Insert three WOOD DOWELS (3) into the TOP (A). å Fasten the TOP (A) to the ENDS (C and D) and SMALL å UPRIGHT (H). Tighten six HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the TOP insert å...
  • Page 10 Step 5 Push six HIDDEN CAMS (1) into the UPRIGHTS (E and F) å and SMALL SHELF (G). Carefully turn the UPRIGHTS (E and F) over. å Turn two CAM SCREWS (2) into the other surfaces of å the UPRIGHTS (E and F). Arrow Arrow Page 10...
  • Page 11 Step 6 Insert four WOOD DOWELS (3) into the UPRIGHTS (E and F). å Fasten the UPRIGHTS (E and F) to the SMALL SHELF (G). Tighten two HIDDEN CAMS. å NOTE: Be sure the WOOD DOWELS in the UPRIGHTS insert into the SMALL SHELF. å...
  • Page 12 Step 7 Slide the BACK (J) into the grooves in the LARGE SHELF (B) and ENDS (C and D). å Insert four WOOD DOWELS (3) into the ENDS (C and D) and UPRIGHTS (E and F). å Fasten the BOTTOM (K) to the ENDS (C and D) and UPRIGHTS (E and F). Use eight 1-9/16" å...
  • Page 13 Step 8 Fasten the FEET (M) to the BOTTOM (K). Tighten four å 1/2" HEX HEAD SCREWS (16) using the L-WRENCH (7). 1/2" HEX HEAD SCREW (4 used in this step) Page 13...
  • Page 14 Step 9 Carefully turn your unit onto its front edges. å NOTE: You should start each SCREW a few turns before å completely tightening any of them. Fasten one of the FRAMES (L) to the LEFT END (C). Tighten å two 1-3/16"...
  • Page 15 Step 10 NOTE: You should start each SCREW a few turns before å completely tightening any of them. Fasten the remaining FRAME (L) to the RIGHT END (D). Tighten å two 1-3/16" HEX HEAD SCREWS (14) using the L-WRENCH (7). Fasten the FRAME (L) to the TOP (A) and BOTTOM (K).
  • Page 16 Step 11 -Carefully stand your unit upright against the wall in its fi nal location. Strike a mark through the center of each hole å in the brackets in the FRAMES (L). Move your unit away from the marks. -Drill a 5/16" hole on each mark. å...
  • Page 17 Step 12 Fasten one PULL (9) to one of the DOORS (N) exactly as å shown. Use two 3/8" MACHINE SCREWS (17). Fasten two HINGES (5) to the DOOR (N). Use four 1/2" å FLAT HEAD SCREWS (15). Repeat this step for the other DOOR. å...
  • Page 18 Step 13 Before fastening the DOOR to your unit, be sure the mounting å screw is against the stops as shown in the right diagram. If it isn't, loosen the mounting screw to slide it against the stops. Stop Then tighten the mounting screw. Fasten the DOORS (N) to the ENDS (C and D) as shown in the å...
  • Page 19 Step 14 Refer to the enlarged diagram to identify the parts on å the HINGES. The DOORS may need some adjustments. Follow the text å below to make needed adjustments. DOOR ADJUSTMENTS: å To adjust the DOORS from side to side (horizontal), turn the adjusting screw in or out.
  • Page 20 Step 15 Peel APPLIQUES from the APPLIQUE CARDS (4) and stick them onto each visible HIDDEN CAM. å Apply the WARNING LABEL (8) to the TOP (A). You should be able to read the label when the TV is removed from the å...
  • Page 21 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following safety information. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child.
