GRILLMAN 200YG Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The
Grill
Owner's Manual
Model 200YG Model 300YG
Model 400YG Model 600PC
Consumer/User: Read all of these instructions, and keep
them in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200YG and is the answer not in the manual?

Questions and answers

Summary of Contents for GRILLMAN 200YG

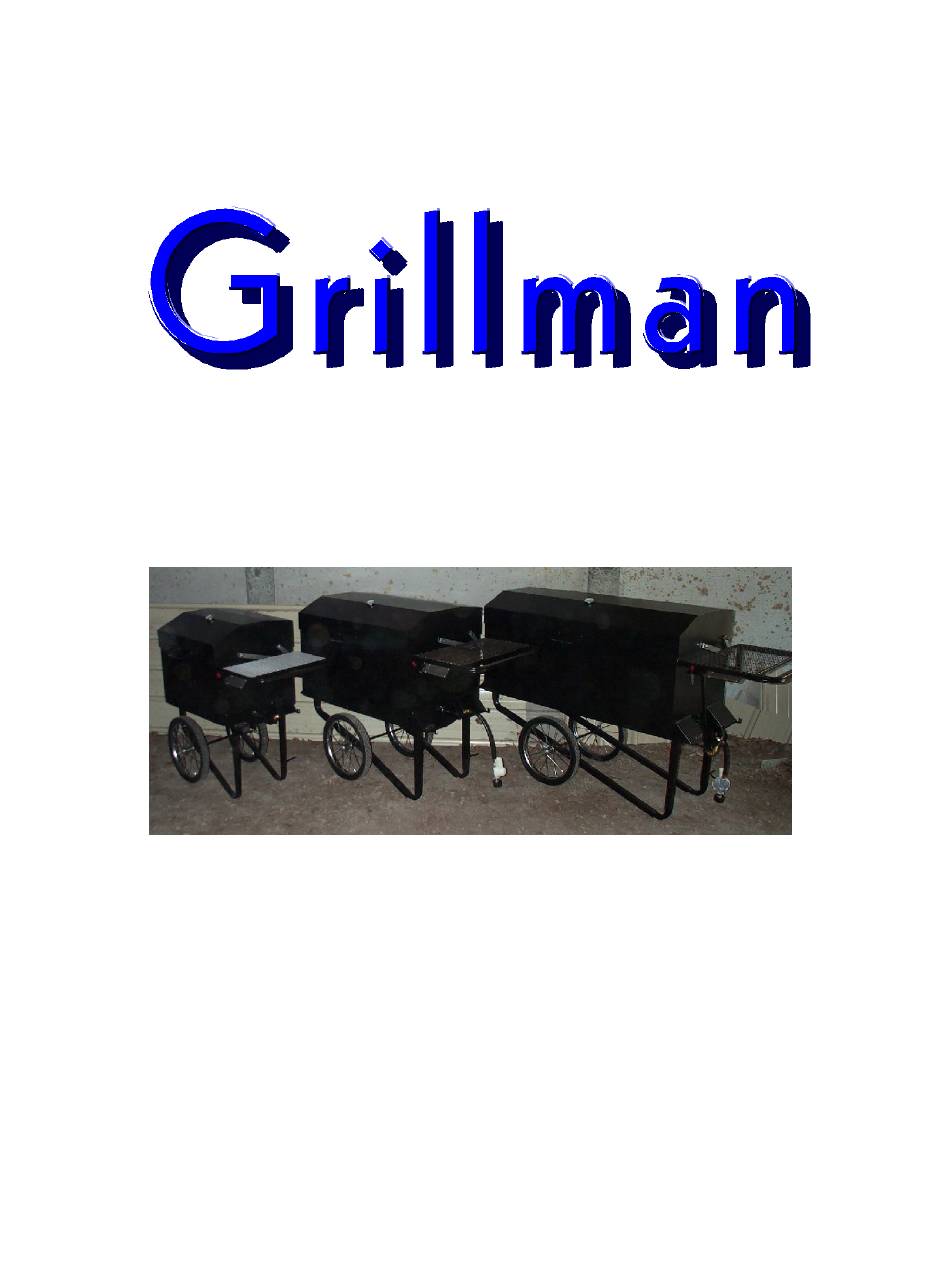

  • Page 1 Grill Owner’s Manual Model 200YG Model 300YG Model 400YG Model 600PC Consumer/User: Read all of these instructions, and keep them in a safe place for future reference.
  • Page 2 DANGER If you smell gas: 1. Shut off gas to the appliance Extinguish any open flame Open lid If odor continues, keep away from the appliance and imme- diately call your gas supplier or fire department. WARNING Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

  • Page 3: Table Of Contents

    Table of Contents Choosing a Safe Location for a Gas Barbecue Grill ....2 Portable L.P. Gas Barbecue Grills .......... 3 Take These Instructions to the L.P. Gas Dealer ....6 Installing a L.P. Gas Cylinder ..........8 Leak Testing ................10 Lighting Instructions ..............11 Burner's Flame ...............

  • Page 4: Choosing A Safe Location For A Gas Barbecue Grill

    Choosing a Safe Location for a Gas Barbecue 1. The gas barbecue grill may only be used for cooking out-of-doors. • Do not operate this barbecue in garages, breezeways, sheds or any enclosed area. • Operating this or any gas-fired appliance in an enclosed area can produce a build-up of carbon-monoxide, which could result in injury or death.

  • Page 5: Portable L.p. Gas Barbecue Grills

    Portable Liquid Propane Gas Barbecue Grills WARNING: Do not use natural gas in an appliance designed for L.P. gas. Use only liquid propane (L.P.) gas in an appliance designed for L.P. gas. L.P. Gas Liquid Propane (abbreviated L.P.) gas is stored under high pressure inside a cylinder and vaporizes when released.
  • Page 6 Portable L. P. Gas Barbecue Grills FUEL REGULATOR AND HOSE The fuel regulator supplied is equipped with a Type 1 coupling nut. Do not at- tempt to connect to any other L.P. cylinder not equipped with a mating Type 1 cylinder valve.
  • Page 7 National Standard of Canada, CAN/CSAB339, Cylinders, Spheres and Tubes for Transporta- filling-prevention device. Read labels on the L.P. gas-supply cylinder. If a cylinder is provided by Grillman Grills, it is empty for safety. Allow only a qualified L.P. gas dealer to fill or repair your L.P. gas-supply cylinder.

  • Page 8: Take These Instructions To The L.p. Gas Dealer

    Take These Instructions to the L.P. Gas Dealer When using a cylinder exchange, be sure the exchanged cylinder is a FILLING AND PURGING TYPE 1 L.P. GAS CYLINDERS DANGER! Purging and filling of L.P. Gas cylinders must be per- formed by personnel who have been thoroughly trained in accepted L.P. gas industry procedures.
  • Page 9 Take These Instructions to the L.P. Gas Dealer The L.P. gas cylinder has a Type 1 cylinder valve with a back-check module in its outlet that will not permit gas to flow until an evacuation device is installed. To purge the L.P. gas cylinder, the back-check module must be opened with an evacuation device.

  • Page 10: Installing A L.p. Gas Cylinder

    Installing a L.P. Gas Cylinder WARNING: Connect the L.P. cylinder to the grill outdoors only. Fill the cylinder before connecting. Read and follow all directions on the cylinder and fuel hose safety tags. On Yard Grills: Hang the L.P. Gas Cylinder from the hook extending from the vent cover on the right side of the grill.
  • Page 11 Connecting a L.P. Gas Cylinder The top knob on the supply cylinder must be closed. See that the top cylinder knob is turned clockwise to a full stop. Check that all the grill burner knobs are turned off. Remove the protective caps from the cylinder valve and coupling nut, if present. Hold the regulator in one hand and insert the nipple into the valve outlet.

  • Page 12: Leak Testing

    Leak Testing DANGER To prevent fire or explosion hazard: Do not smoke while performing a leak test. • Do not permit any sources of ignition in the area when testing for leaks. • Perform leak tests outdoors only. • Never perform a leak test near a fire or flame. •...

  • Page 13: Lighting Instructions

    Lighting Instructions IGNITER LIGHTING SYSTEM The Igniter System consists of an igniter unit, a gas-collector box, a ceramic electrode, and lead wire. Gas is collected in the metal collector box located at the burner. When the igniter button is pushed, an electric spark is created at the ceramic electrodes. The gas is then ignited by the spark.
  • Page 14 Lighting Instructions Continued MATCH LIGHTING IMPORTANT! The match-lighting hole is found on the right side of the Grill, above the burner tube. Repeat steps 1 to 4 of “Lighting Instructions.” STEP 5. To match light: Strike a long wooden match and position the burning match through match-lighting hole in the grill side STEP 6.

  • Page 15: Burner's Flame

    Burner's Flame Keep the grill lid closed and the baffle plates in place. Inspect the burner’s flame by carefully looking below and through the air-supply openings at the grill bottom. A good flame should be blue with some yellow tip coming from the burner holes.

  • Page 16: Caring For Your Gas Grill

    Caring for Your Gas Grill Coat cooking grate with cooking oil to prevent food from sticking. Preheat the grill with the lid closed about five minutes before cooking. Cook with lid down when possible. This will keep temper- ature even, conserve fuel, improve food’s flavor, and lessen flare-ups. Never leave cooking food unattended.

  • Page 17: Clearing The Burner Tube

    Clearing The Burner Tube Spiders and other insects are known to sometimes build homes inside the burner tube. This can become a serious problem. A spider web or wasp nest inside the burner tube can block gas flow and can cause a fire at the gas-control valve. Such a fire can cause operator injury and do serious damage to your grill.

  • Page 18: Storing A L.p. Gas Barbecue Grill

    Storing a L. P. Gas Barbecue Grill *WARNING! St re L.P. s-supp y y nder utd rs n re , ut f d re t sun- t, nd w y fr m pe p e r pets. *P rt b e r s n be st red nd rs w t ut t e y nder.

  • Page 19: Replacement Parts & Contact Information

    Charges for replacement parts and shipping may apply. To order parts or inquire about repairs call in the USA: (252) 638 - 8316 or write to: The GRILLMAN Grills A&H Manufacturing 5080 US Hwy 70 East New Bern, N.C. 28650...
  • Page 20 If the grill does not light turn the gas off, wait a few moments, then try again. Once lit, your Grillman Grill will reach 450 degrees Fahrenheit in 4 to 5 minutes. Leaving the grill unattended for too long a duration will cause it to reach temperatures that may damage the grill’s coat-...

This manual is also suitable for:

300yg400yg600pc
