Summary of Contents for Stahls Hot Berry

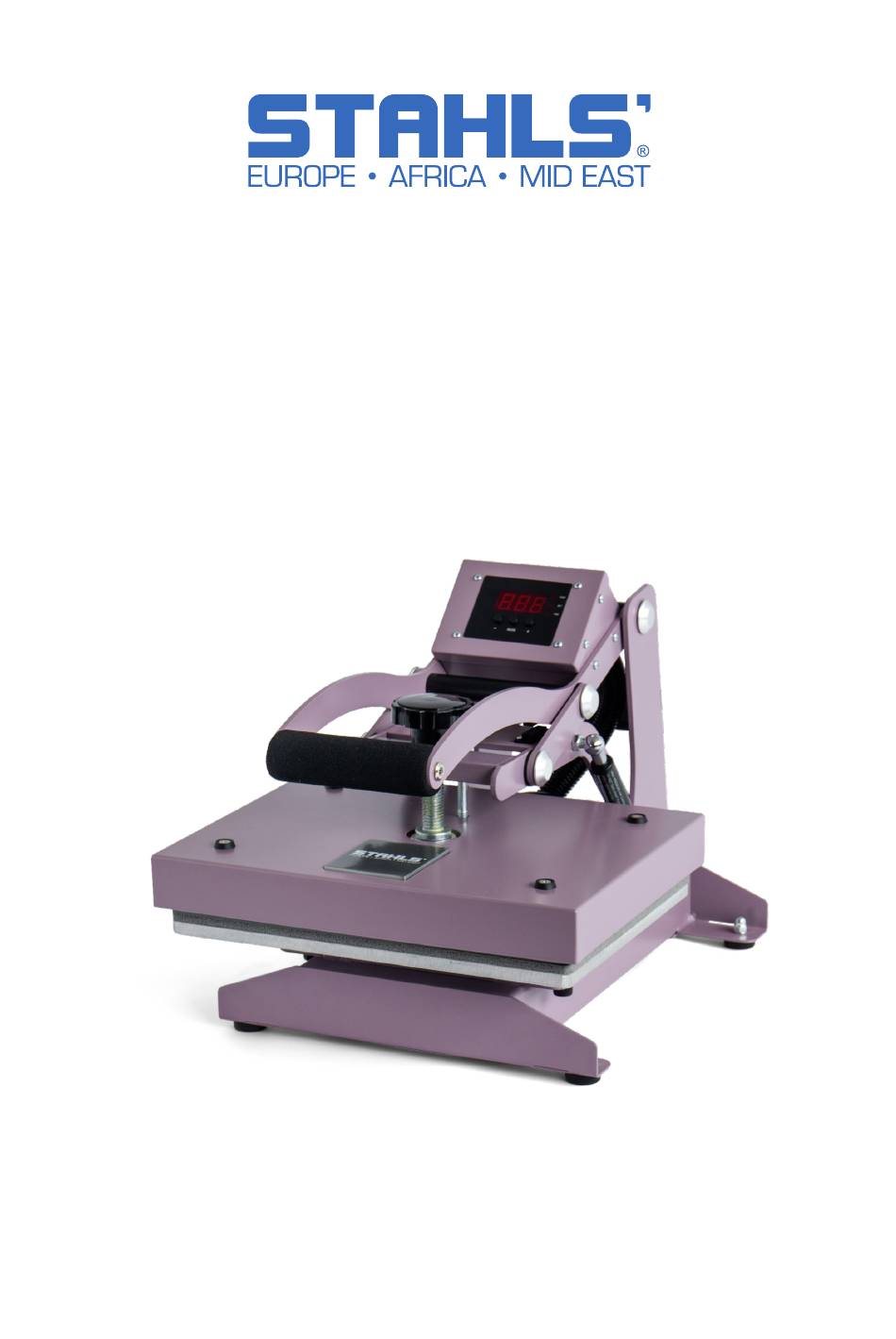

- Page 1 STAHLS‘ HOT BERRY OPERATING MANUAL...
- Page 2 HOT BERRY...
-
Page 3: Table Of Contents
CONTENT SAFETY INSTRUCTIONS PREFACE TO THE MANUAL DETAIL PICTURE TURNING THE SYSTEM ON CONTROL PANEL ADJUSTING TEMPERATURE & TIME ADJUSTING PRESSURE PRINTING / PRESSING... - Page 4 PREFACE TO THE MANUAL HOT BERRY This manual has been designed to be user friendly. Read it carefully, and follow the step-by-step instructions to get the best possible printing results. • Work very carefully and avoid contact with the hot plate to avoid serious burns. Keep hands clear of heat platen while closing the press to prevent bruises and burns.
-
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Important Safety Instructions Before you use your press, you should follow some basic precautions, including the following: • Read the complete manual before you start to use your press. Use the press exclusively for prin- ting textiles, or other suitable products that do not contain heat sensitive components, and have not been treated with chemical additives. -
Page 6: Detail Picture

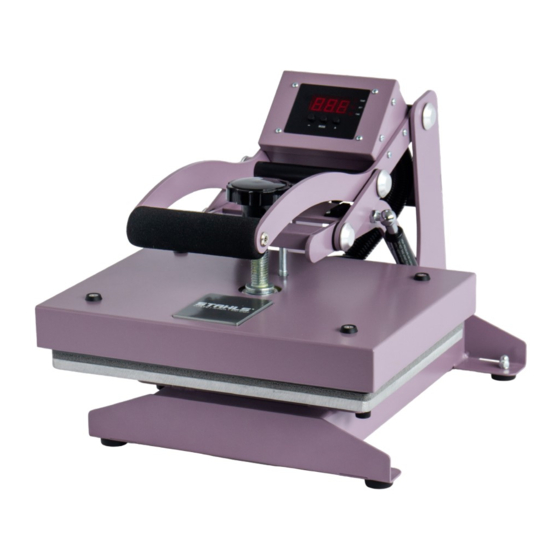

DETAIL PICTURE HOT BERRY LED-Display Pressure Adjustment Knob Lift Handle Power Supply Fuse 4 Amp Power ON/OFF Switch Rear view of heat press... -
Page 7: Turning The System On
TURNING THE SYSTEM ON Connecting the Power Cord Ensure that the operating voltage of the mains supply is 230 V before connecting the machine. The socket must be secured with at least 10 amps. Only connect one machine per socket. Do NOT use extension cords, as this can lead to overheating of the cable (fire hazard), or to a loss of voltage. -
Page 8: Control Panel
CONTROL PANEL HOT BERRY LED Display Temp Indicator Set Indicator Time Indicator Dectrease Button (-) Mode Button Increase Button (+) Power: 230 Volt, 700 Watt Digital Timer: 1-999 seconds Digital temperature control: 96-221°C measurements (Press closed): approx. 45 cm L x 32 cm W x 30 cm H... -
Page 9: Adjusting Temperature & Time
ADJUSTING TEMPERATURE & TIME Press the mode button on your control panel. The (SET) and (TEMP) lights located next to the display will illuminate indicating you are in the Adjust Temperature Mode. Use the Minus (-) button or the Plus (+) button to lower or raise the temperature until the desired temperature appears in the display. -
Page 10: Adjusting Pressure
ADJUSTING PRESSURE HOT BERRY The pressure adjustment knob is located in the centre of the heat platen. Adjust the pressure by turning the screw clockwise to increase pressure and counter-clockwise to decrease pressure. If you are not satisfied with the printing results, change the pressure. -
Page 11: Printing / Pressing
PRINTING / PRESSING Heat Up: It takes around 12 minutes to reach 150° C. Once your machine has reached the designated temperature: • Position the garment and application and proceed to press. • Lower and lock the heat platen into the press position. This procedure will start the automatic timing process. - Page 12 CONTACT STAHLS’ Europe GmbH Dieselstraße 62 66763 Dillingen Germany Technischer Support & Kundenservice +49 (0) 68 31/97 33 0 E-Mail info@stahls.de stahls.de...
