Mora Armatur
Box 480
SE-792 27 MORA
SWEDEN
www.moraarmatur.com
A
Packning/
Gasket
Styrring/
Guide ring
Vanlig
DM
C

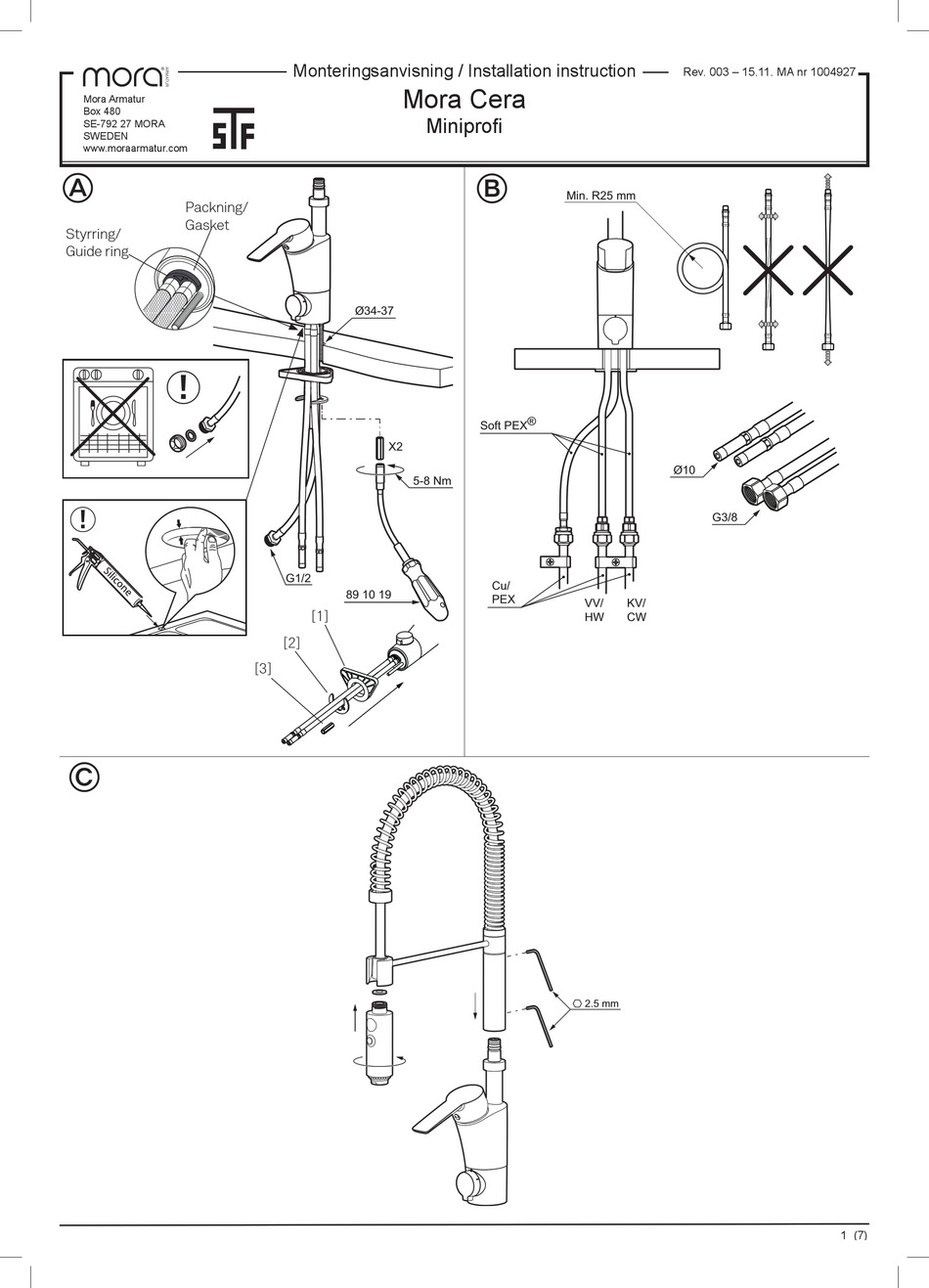

Monteringsanvisning / Installation instruction
Mora Cera
Miniprofi
Ø34-37
X2
5-8 Nm
G1/2
89 10 19
[1]
[2]
[3]
B
Min. R25 mm
Soft PEX ®
Cu/
PEX
VV/
KV/
HW
CW
2.5 mm
Rev. 003 – 15.11. MA nr 1004927
Ø10
G3/8
1 (7)
