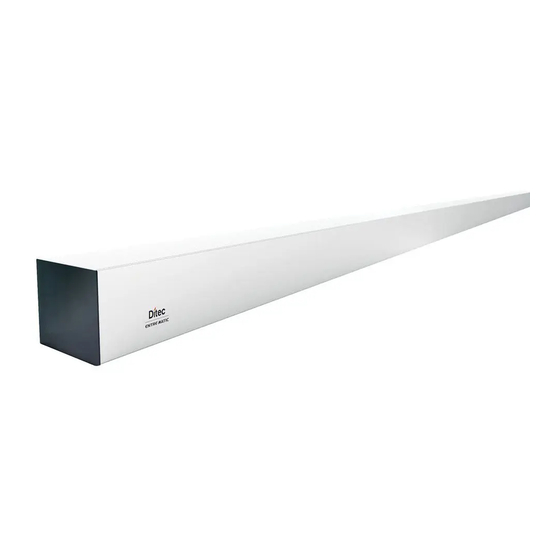

DITEC DAS107PLUS Technical Manual
Automation for sliding doors
Hide thumbs
Also See for DAS107PLUS:
- User manual (8 pages) ,
- Quick reference (20 pages) ,
- Quick reference (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for DITEC DAS107PLUS
Summary of Contents for DITEC DAS107PLUS
- Page 1 IP2282EN • 2021-03-31 Ditec DAS107PLUS Technical Manual Automation for sliding doors (Translation of the original instructions) www.ditecautomations.com...
-
Page 2: Table Of Contents
Contents Subject Page General safety precautions Declaration of incorporation of partly completed machinery Technical specifications Standard installation Main components Installing the automation 5.1 Removing the cover 5.2 Fastening of box using supplied wing anchoring brackets 5.3 Example with DAS11M8 and DAS18M8 5.4 Preparing the glass door wing 5.5 Installing and adjusting the door wings 5.6 Installing the floor guides... -
Page 3: General Safety Precautions
1. General safety precautions Failure to respect the information given in this manual may cause personal injury or damage to the device. Keep these instructions for future reference This assembly and installation manual is intended exclusively for the use of qualified personnel. Installation, electrical connections and adjustments must be performed by qualified personnel, in accordance with Good Working Methods and in compliance with the current regulations. -
Page 4: Declaration Of Incorporation Of Partly Completed Machinery
ASSA ABLOY Entrance System AB Lodjursgatan 10 SE-261 44 Landskrona Sweden declare under our responsibility that the following types of equipment: Ditec DAS107PLUS Sliding door operator comply with the following directives: 2014/30/EU Electromagnetic Compatibility Directive (EMCD) 2006/42/EC Machinery Directive (MD) for the following essential health and safety requirements: 1.1.2, 1.2.1, 1.2.2, 1.2.3, 1.2.4.2, 1.2.6, 1.3.9, 1.4.3, 1.7.2, 1.7.4,... -
Page 5: Technical Specifications
2. Technical specifications Power supply 100V~ / 240V~ 50/60Hz Rated power Opening speed (2 door wings) 1m/s Closing speed (2 door wings) 1m/s 120kg (1 door wing) Maximum load 160kg (2 door wing) Intermittence S3=100% Temperature -20°C +50°C IP20 Degree of protection (FOR INTERNAL USE ONLY) Power supply for accessories 0,64A... -
Page 6: Standard Installation
3. Standard installation Ref. Description Automation for sliding doors Combined opening and safe closing sensor Safe opening sensor Safety photocell Function selector switch Connect the power supply cable to a type-approved omnipolar switch with category III insulation and a contact opening distance of at least 3mm. The connections to the mains and low voltage wires must be made on an independent channel sep- arated from the connections to the command and safety devices (SELV = Safety Extra Low Voltage). -
Page 7: Main Components
Anti-panic lock DAS801LOKA NOTE: the given operating and performance features can only be guaranteed with the use of DITEC accessories and safety devices. 5. Installing the automation 5.1 Removing the cover Loosen screw C to free the cover supports and lift the cover to remove it. -
Page 8: Fastening Of Box Using Supplied Wing Anchoring Brackets
The figure shows the measurements for fastening the DAS107PLUS automation to the wall, con- sidering that the automation door wings are made using profiles not manufactured by us. If the door wings are made with DITEC profiles in the ALU/PAM series: refer to the measurements given in the relative manuals. -
Page 9: Example With Das11M8 And Das18M8
5.3 Example with DAS11M8 and DAS18M8 +/- 8 DAS11M8 AC1356 DAS107PLUS-AC1356 +/- 8 DAS18M8 AC4255 DAS107PLUS-AC4255... -
Page 10: Preparing The Glass Door Wing
5.4 Preparing the glass door wing The diagram indicates the process measurements of the AC1356 aluminium profile and glass. Ø10 through holes are required on the aluminium profile and Ø15 on the glass for fastening. The number of holes and related distance between centres are based on the door wing width. Silicon should ideally be used between the edge of the glass and the internal base of the profile. -
Page 11: Installing And Adjusting The Door Wings
5.5 Installing and adjusting the door wings +/- 8 +/- 19 WARNING: after door leaves installation and adjustment REMOVE ALL THE CAR- RIAGE SELF SUPPORT BRACKETS (K). Fix the door wing to the carriage with screws [J]. The door wing can be adjusted as shown in the figure. •... - Page 12 AUTOMATION WITH ONE DOOR WING WITH RIGHT-HAND OPENING O P E N AUTOMATION WITH ONE DOOR WING WITH LEFT-HAND OPENING O P E N • Place the end stops [E] on the opening and closing positions. • For the 2 wing automations, a third end stop is provided which must be placed near the end of the box which is used as a stop for the cover support.
-
Page 13: Installing The Floor Guides
5.6 Installing the floor guides The floor guides must be made of an anti-friction material such as PVC, NYLON or TEFLON. The length of the floor guide should be no greater than the overlap between the fixed and mobile door wings, and should not enter the passage opening. Examples of floor guides min 21 max 40... -
Page 14: Adjusting The Belt
5.8 Adjusting the belt WARNING: incorrect adjustment impairs the correct functioning of the automation. The belt tension is factory-adjusted and readjustment is normally not needed. If despite this, the belt tension has to be corrected, proceed as follows: 5.8.1 Type A a) Loosen the two fixing screws (F). -
Page 15: Installing The Door Wing Block (Optional)
5.9 Installing the door wing block (optional) A blocking device can be installed to keep the door wings closed. The control panel automatically recognises the type of block installed. For installation, refer to the blocking device installation manual. 6. Electrical connections Connect the automation to an efficient earthing system that complies with current safety standards. -
Page 16: Standard Electrical Connections
6.1 Standard electrical connections 1DAS1ALP 1DAS1QEP 1DAS1MR DAS902BAT2 (24 V) (optional) DAS901BAT1 (12 V) (optional) DAS902BAT2: the fuse in the cable harness is T10A Output Description Power supply unit connection Motor connection Encoder connection Used for connection of 1 selector COM501MHS/COM501MKS/ COM500ES. DO NOT USE green LED Green LED: If this LED is switched off or flashing, it means the control... -
Page 17: Control Panel Commands
6.2 Control panel commands Jumper the unused N.C. contacts DO NOT USE Blocking device blocking device connection Blocking device (+) 24 V NOTE: Power supply output for exter- Inner side opening nal accessories 24V 0,64A. (-) 0 V The maximum absorption of 0,64A corresponds to the sum of all termi- (+) 24 V nals power supply output (1-7;... - Page 18 Contact Description N.C. SAFETY PHO- Connect safety photocell 1 or central presence sensor 1 as shown TOCELL 1 OR in the examples in paragraphs 10.1 and 10.2. CENTRAL (ref. parameter 07) PRESENCE SENSOR 1 N.C. SAFETY Connect safety photocell 2 or central presence sensor 2 as shown PHOTOCELL 2 in the examples in paragraphs 10.1 and 10.2.
-
Page 19: Adjustment And Selection Of Control Functions
7. Adjustment and selection of control functions The control panel has a two-figure display that displays text and/or numbers. It has four buttons. LEARN / EXIT LEARN / EXIT SELECT SELECT DOWN DOWN The procedure to switch on the display is as follows: press the 2-SELECT key to launch the display test NOTE: make sure all seven segments of the two displays light up correctly to avoid incorrect reading. -
Page 20: Display Test
7.1 Display test a. When the display shows " ", push the SELECT button and each of the two display win- dows make a rotating test pattern. b. Verify that all seven segments of the two display windows are lit during the test. If not there is a risk of misjudgment of the digits shown in a defective display. -
Page 21: Start Up
8. Start up Before performing any type of operation, make sure that the automation is turned off and the batteries are disconnected. Start-up and adjustment must be performed in the following order when the automation is installed: 1. Connect the accessories, opening and safety sensors, blocking device, batteries and selector. 2. - Page 22 quired automatically, for example, if the door is a 2-wing or 1-wing door (parameter 67). The parameters P05,P06,P67 can be configured by the installer, check that there are no obstacles which prevents correct learning of open position (the display indicates P59: check that the door run must not be less than 300mm) and door weight/ friction ( the display indicates P68, P69).
-
Page 23: Parameters
9. Parameters 9.1 Configuration parameters according to function For more information on the parameters, see par. 9.2 SPEED parameters Parameter Description Range High Speed Opening (10= 10cm/s; 70= 50cm/s) 10÷50cm/s High Speed Closing (10= 10cm/s; 70= 50cm/s) 10÷50cm/s TIME parameters Parameter Description Range... - Page 24 SENSOR parameters Parameter Description Range Presence impulse 1 configuration. N.O. (00) / N.C. (01) 00÷01 Presence impulse 2 configuration. N.O. (00) / N.C. (01) 00÷01 Central presence sensor test. 00÷02 None (00) / sensor 1 (01) / sensor 1 and 2 (02) Side presence input 1 configuration.
-
Page 25: Description Of The Parameters
9.2 Description of the parameters In the “INSTALLATION SETTINGS” column you can note the modified setting values. Installation Parameter Description Factory setting setting Selection of opening speed (10÷70, 10= 10cm/s; 70= 50cm/s for single door wing) Sets the maximum opening speed. Selection of closing speed AUTOMATIC (10÷70, 10= 10cm/s;... - Page 26 Partial opening selection (00÷99%) Selection of opening direction (00÷01) 00= right hand opening for single door wing automation; 01= left hand opening for single door wing automation and for double door automation. Acceleration and braking performance adjustment (01÷05) 01= Minimum performance, for light door wings; 05= maximum performance, for heavy door wings.
- Page 27 Adjustment of the thrust to verify the closure end stop (00÷19N x10) Adjustment of maximum force during closure (02÷19N x10) The force applied from the operator to the door leaf during closing. Push&Close (00÷01) When this parameter is set to On (01) the motor will in operation mode selections OFF or EXIT try to close the door with the force selected by parameter 50 “Closing Max Force”, if someone tries to open it manually.
- Page 28 Operation mode selector key lock (00÷03) COM500ES There are three different levels of access code choices for the operation mode selector. 00= No access code 01= Hold for two sec. access is obtained by holding for 2 seconds 02= Passcode. Passcode can be selected where the access is obtained by briefly pushing in turn The entire passcode must be entered within 3 seconds.
-
Page 29: Example Of Connection
10. Example of connection 10.1 Example of connection with opening radar and photocell INNER SENSOR OUTER SENSOR Photocells Photocell DAS900PH1A INSIDE INNER SENSOR SENSOR Ø8,4 24 V 16 17 marrone brown +24 V nero black blue -0 V marrone brown +24 V Ø3,5 blue... -
Page 30: Combined Opening And Safety Sensor + Safety Sensor On Opening
10.2 Combined opening and safety sensor + safety sensor on opening The electrical connections must be made when the mains power supply is switched off. PAS005AP(2) PAS024AS(W) (1) PAS005AP(1) PASAA2 (1) PAS024AS(W) (2) With these connections, the auto- PASAA2 (2) mation opens and makes a reversal safety contact on the passage opening with a command from the internal... -
Page 31: Troubleshooting / Alarms
INNER SENSOR INNER SENSOR SIDE SENSOR PAS005AP PASAA2 PAS024AS(W) Green White Green Brown Brown Brown Yellow Green Yellow White Yellow White Pink Pink Pink Grey Blue Grey Blue Black Blue OUTER SENSOR OUTER SENSOR SIDE SENSOR PASAA2 PAS024AS(W) PAS005AP Green White Green Brown... - Page 32 2-figure number indicating the specific error (e.g. - Encoder error). • If there are several errors, they will be visualised in alphabetic order and in sequence. • It is possible to give a RESET to the control unit by the function selector switch. •...
- Page 33 Registration error within the program Make a RESET. If the problem persists, replace the control panel. The green LED flashes or is switched off. Error within the program Make a RESET. If the problem persists, replace the control panel. The green LED flashes or is switched off. Blocking device current error Check the blocking device is correctly installed.
- Page 34 RESET, check connections, and if the problem Operation mode selector disconnected from the remains, replace the operation mode selector. external bus. It is not possible to replace a Ditec operator component with a component from a different brand. E7 - Motor temperature error Error...
-
Page 35: Routine Maintenance Plan
12. Routine maintenance plan Perform the following operations and checks every 6 months, according to the intensity of use of the automation. With power supply and batteries disconnected: Clean and lubricate the mobile parts (the carriage slide guides and the floor guides). Check the belt and its tension. - Page 36 All the rights concerning this material are the exclusive property of ASSA ABLOY Entrance System AB. Although the contents of this publication have been drawn up with the greatest care, ASSA ABLOY Entrance System AB cannot be held responsible in any way for any damage caused by mistakes or omissions. We reserve the right to make changes without prior notice.
