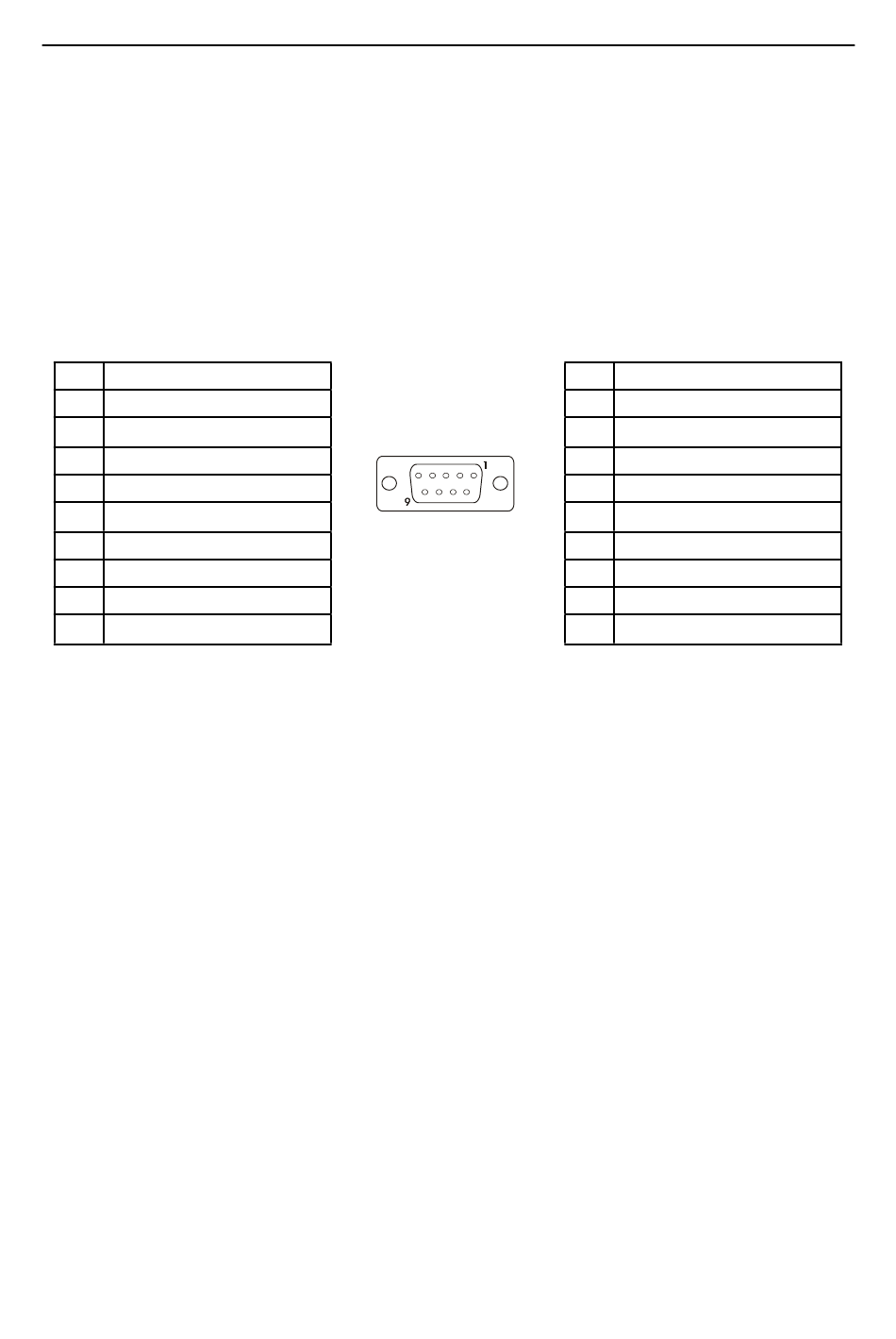

5.1 Serial port

The serial port is used to communicate with the PLC or with another type of controller.
Standards available for the signals in the PLC port connector are: RS-232, RS-422, RS-485.
The serial port is software programmable. Make sure you select the appropriate
interface in the programming software.
RS-232
Pin Description
1 GND
2
3 TX
4 RX
5
6 +5V output
7 CTS
8 RTS
9
The communication cable must be chosen for the type of device being connected.
It is highly recommended to use communication cable for AC500 (-eCo), TK682 (Order No. 1SA-
P500982R0001)
SERIAL PORT
RS-422, RS-485
Pin Description
1 GND
2
3 CHA-
4 CHB-
5
6 +5V output
7 CHB+
8 CHA+
9
To operate in RS485 pins 4-3 and
8-7 must be connected externally.
Connections
