Standard power (4 Watts) and 8-10 Watts high power Modification
Open speaker side cabinet, find the plug-in jumper location on main board between VCO
(shielded part) and RF power amplifier transistors (see photos)
Connect two pins connector left side
Standard delivery
Connect two pins connector right side
Or open jumper (see photo)
Standard position 4 Watt

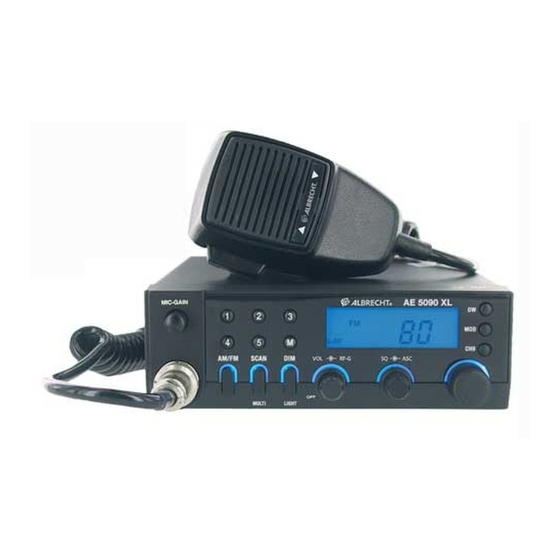

AE5090 XL MULTI MODE
Power & 400 CH settings
Multi 01 and 02:
Multi 03
Multi 04 and 05:
CPU # 38 or 39 or 40 = L: 4W AM/FM
Multi 01 and 02:
Multi 03
Multi 04 and 05:
CPU # 38 or 39 or 40 = L: 8W AM/FM
1W AM / 4W FM
:
4W FM
4W AM/FM
1W AM / 8W FM
:
8W FM
8W AM/FM
High power position 8...10 W max
Advertisement
Table of Contents
Related Manuals for Albrecht AE5090 XL
Summary of Contents for Albrecht AE5090 XL
- Page 1 AE5090 XL MULTI MODE Power & 400 CH settings Standard power (4 Watts) and 8-10 Watts high power Modification Open speaker side cabinet, find the plug-in jumper location on main board between VCO (shielded part) and RF power amplifier transistors (see photos)
- Page 2 Standard Multi Mode (this is the factory default mode: Press MULTI during switching on = 80/40, FM/AM Germany and CZ = 40/40, FM/AM all countries, FM 4 Watt, AM 1 Watt = 40 FM only 0 4 = 40/40, FM/AM Spain, AM + FM both 4 Watts = 40/40, FM/AM “0"...
