Summary of Contents for Proactive PROTEKT 30300

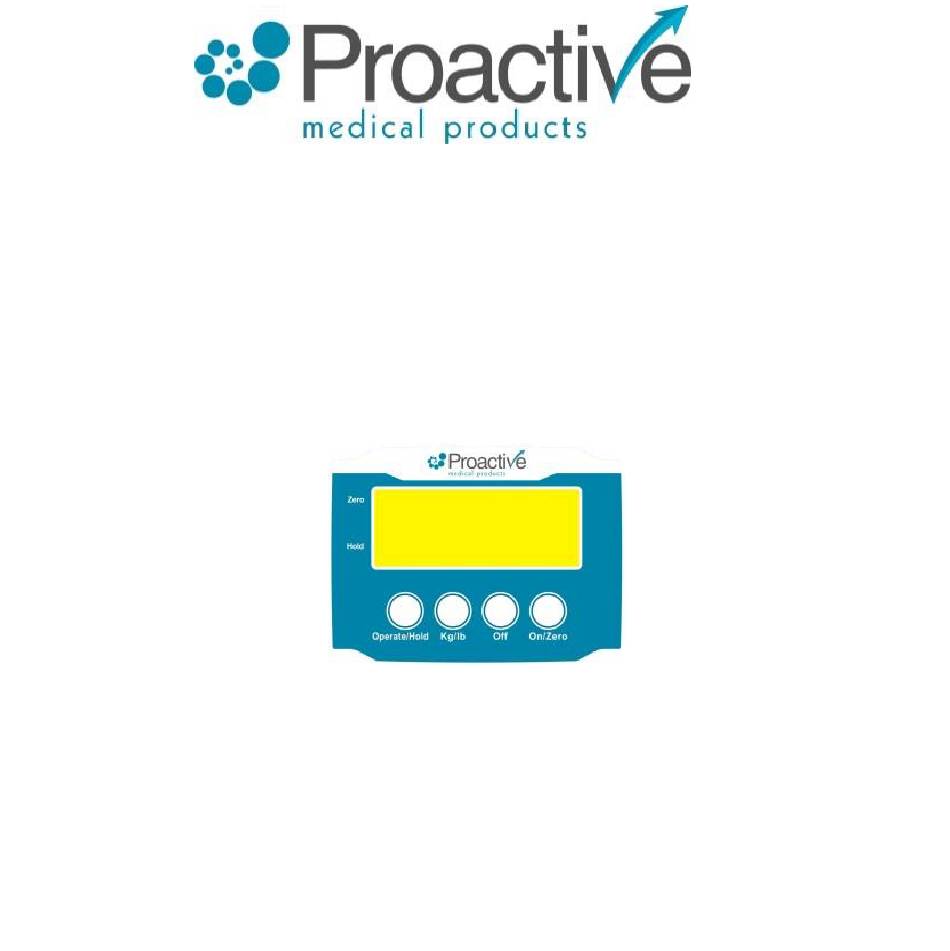

- Page 1 PROTEKT ® DIGITAL PATIENT LIFT SCALE MODEL: 30300 For use with Patient Lift Models: 33500/33600/33400P OWNER’S MANUAL 270 Washington Street Mount Vernon, NY 10553 855-237-7622 www.proactivemedical.com...
- Page 2 If the merchandise is received damaged or is missing components, contact the shipping company immediately and file a claim. For further assistance, contact your local dealer or Proactive Medical Products at the following: Proactive Medical Products 270 Washington Street...
- Page 3 WARNING: If components are damaged or missing, contact your Proactive Medical distributor immediately. DO NOT use substitute parts. Use only Proactive Medical replacement parts. Non-Proactive replacement parts could cause personal injury and damage to the Lift Scale.
- Page 4 This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm. WARNING: Proactive Medical Products assumes no responsibility for any damage or injury caused by improper assembly, installation or use of this product.
- Page 5 SCALE INSTALLATION ON PATIENT LIFT 1. Use the following instructions to attach the Lift Scale to the appropriate Patient Lift with the included mounting hardware. Do not use any other mounting hardware than that provided. 2. Keep the scale in a cool, dry place. If operation temperature is over 104°F (40°C), the tolerance will not be accurate within 0.2 lb (0.1 kg).
- Page 6 Protekt ® Digital Lift (30300) SCALE COMPONENTS Ensure all components shown below are included in the Scale package. Item Picture Description Scale Bushing 1220 Bushing 1020 Universal bracket Key ring Washer...
- Page 7 SCALE INSTALLATION ON PROACTIVE PATIENT LIFTS: 33500 / 33600 / 33400P Install 30300 Scale on Proactive Patient Lifts 33500/33600/33400P as shown above. WARNING: Ensure scale is securely mounted as shown above before proceeding.
- Page 8 LIFT SCALE OPERATION INSTRUCTIONS Keyboard Illustration Display Illustration...
- Page 9 Instructions for Use Place sling to be used onto spreader bar without patient/resident/user. Press the scale faceplate On/Zero button to zero-out the sling weight (this weight will remain zeroed out until the Off button is pressed). Press the Lb. button to select mode you prefer. Carefully lift the patient/resident/user in the sling, performing the procedure so that all of the weight is supported by the lift.
- Page 10 LIFT SCALE MAINTENANCE Cleaning As needed, wipe scale gently, using mild soap or a mild disinfectant. NOTICE: DO NOT wash under water pressure or steam clean. DO NOT use solvents, abrasive cleaners, or scouring pads to clean scale.
- Page 11 Battery Replacement When the low battery indicator ( ) appears in the display＇ s right corner, replace the battery: 1. Open the scale back battery compartment. 2. Remove battery and replace with a 9V alkaline battery. Ensure battery polarity is correct. 3.
- Page 12 LIFT SCALE SPECIFICATIONS Model Number 30300 Capacity 600 lb (300 kg) 1/3,000 ±1d Resolution 0.2 lb (0.1 kg) Division 9V alkaline battery x 1 Power Source Operating 32°F ~ 104°F (0°C ~ 40°C) Temperature 32°F ~ 158°F (0°C ~ 70°C) Storage Dimensions (W x H x D) 3.54 x 2.83 x 2.17 in.
-
Page 13: Limited Warranty
1 Year from the date of purchase by the original purchaser. This warranty shall be voided upon transfer of ownership of this Product. Proactive Medical agrees to repair or replace this product, at our discretion and at no charge, within the warranty period provided and that Proactive Medical consents the unit is defective. - Page 14 This warranty shall not apply to any product which has been repaired or altered in any way so as, in our judgment, to affect its functionality and durability, nor to any product subject to abuse, misuse, negligence or accident, improper maintenance, improper installation, nor to any product used with other parts, components and/or accessories with quality and/or specifications not compatible with this product.
