- Page 1 Installation Manual for AQUATO ® AQUATO KOM-PAKT ® Effluent classes (please tick) Serial number Date of commissioning Tank Concrete (please tick) Primary volume SBR volume Fully Biological wastewater treatment plant for domestic wastewater according to DIN 4261 / EN 12566...
- Page 2 ® Dear AQUATO cutomer, ® When you put your AQUATO wastewater treatment plant together with a tank of your ® choice, you have to prepare the following documents: • compliance of the tank according to DIN EN 12566-3 (test for water tight ness, durability and stability) •...
- Page 3 Marketing Authorisation Holder (MAH) EN 12566-3 Prefabricated sewage treatment plants for to the treatment of domestic wastewater AQUATO KOM / KOM-PAKT ® ® Concrete / Plastic Efficiency of treatment: Efficiency of the cleaning performance COB: 87,2% (with a certified daily organic pollution load : 92,3% = 0.06 kg / d)
- Page 4 Your sticker EN 12566-3 Please attach it clearly visible and durable to the plant, for example, on the control panel.
-
Page 5: Ec Declaration Of Conformity
+ 49 (0) 5221-10 21 9 - 20 info@aquato.de www.aquato.de We hereby declare that the product AQUATO AQUATO KOM / KOM-PAKT ® ® for small wastewater treatment plants from 4 to 50 PE is according to the following directives:... -
Page 6: Overview Approvals
By signing a maintenance contract, the plant and its biological effluent values are monitored continuously. For more information, contact your installation partner or your service company. This installation manual is available in A4 format as a PDF file to download on our website www.aquato.de under "Downloads". stand: 01.09.2012... -
Page 7: Table Of Contents
20-21 Laying and installation of the hoses Installation of an optional float switch To be considered maximum water levels Installation view of KOM in 3-chamber concrete tank Installation view of KOM - PAKT in 2-chamber PE tank Declaration of Conformity... -
Page 8: Safety Information
Safety Information By using the Aquato wastewater treatment plant for other purposes wit- hout explicit permission of Aquato GmbH and / or ignoring following safety instructions, danger or injury to persons can occure and cause malfunctions or defects of the system. -
Page 9: Kom Drawing In Concrete Tanks
KOM Drawing in Concrete Tank 3 chamber concrete tank Installation in 1/2 chamber Feeding siphon Outlet Primary Treatment/ Buffer Clear Water siphon Opening below SBR-Reactor waterlevel Plate aerator (besser membrane diffusor) Inlet Sludge Siphon Outlet Inlet... -
Page 10: Kom Drawing In Pe Tanks
Zeichnung KOM in PE-Behälter Feeding siphon Clear Water siphon 2 Kammer Kunststoffbehälter Primary Treatment/ Einbau in der 1/2 Kammer Buffer SBR-Reactor Inlet Activation Sludge Siphon Membrane diffusor Inlet Outlet Length Width Einbauanweisung AQUATO KOM + KOM - PAKT, Ausgabe 01.04.2012... -
Page 11: Scope Of Delivery Kom

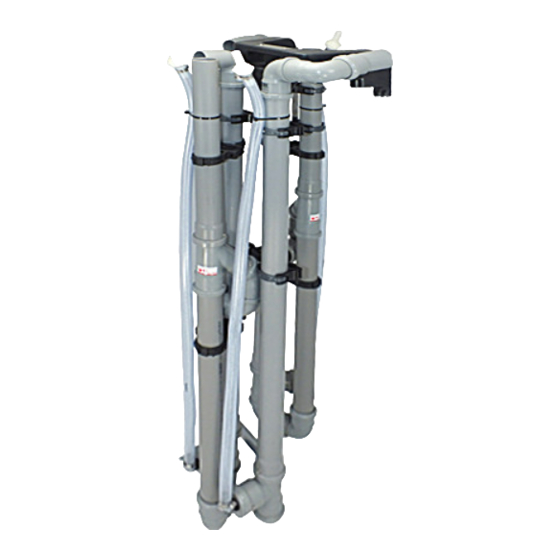

Scope of Delivery KOM Feeding siphon made of pre-assembled HT (High Temperature) pipe DN 50 mm for the feeding of the aeration tank Sludge and clearwater siphon made of pre-assembled HT (High Temperature) pipe DN 50 mm for the return-sludge and clear water discharge... -
Page 12: Scope Of Delivery Kom Chain System
Scope of Delivery KOM Chain System Feeding siphon made of pre-assembled HT (High Temperature) pipe DN 50 mm for the feeding of the aeration tank Sludge and clearwater siphon made of pre-assembled HT (High Temperature) pipe DN 50 mm for... -
Page 13: Scope Of Delivery Kom - Pakt
Scope of Delivery KOM - PAKT Feeding siphon made of pre-assembled HT (High Temperature) pipe DN 50 mm for the feeding of the aeration tank Sludge and clearwater siphon made of pre-assembled HT (High Temperature) pipe DN 50 mm for... -
Page 14: Assembly Preparation In A Concrete Tank (Example)
Assembly Preparation in a Concrete Tank (Example) Tank preparation by the example of a 3-chamber pit with two quarter chambers as primary treatment (sludge storage and buffer) and a half chamber as treatment chamber (biology) - All dimensions should be checked on site. - The accident prevention regulations must be observed. -
Page 15: Feeding Siphon Kom
Feeding Siphon KOM Discharge port feeding Fastening clamps The feeder Suction port feeding siphon has to be fixed on the level -H (The value can be taken out of the design Hose connector calculation or the (port for feeding= approval) colourless) Installation: In 1 tank: ½... -
Page 16: Sludge And Clearwater Siphon Kom
Sludge and Clearwater Siphon KOM Discharge port Discharge port sludge siphon clearwater siphon Fastening clamps w,min w,min The clearwater siphon has to be fixed on the level Suction port clearwater w,min (The value can be taken out of the des... -
Page 17: Feeding-Sludge-Clear Water Siphon Kom - Chain Unit
Siphon KOM Chain Unit Feeding siphon Sludge- & Clearwater siphon Discharge Discharge port port feeding clearwater Discharge port excess sludge w,min Installation height w,min Suction port (The values can clearwater be taken out of the design calculation or the approval) -
Page 18: Feeding-Sludge-Clear Water Siphon Kom - Pakt
Siphon KOM-PAKT Feeding-, Sludge and Clearwater siphon as one unit Discharge port sludge siphon Discharge port feeding Discharge port clearwater siphon w,min w,min (The values can be taken out of the design calculation Suction port or the approval) clearwater Suction port... -
Page 19: General Installation Instructions And Special Solutions
GRP tanks, which are not automatically included and have to be ordered separately. Special case of divergent head at all KOM systems The Standard lift height (head) of our KOM system for the clearwater discharge is max. 50 cm, which corresponds approximately to the distance up to the outlet. -
Page 20: Installation Of Control And Compressor
Installation of Control and Compressor Control with wall bracket The control panel is completely assembled to the wall bracket. - When selecting the installation location, the weight of the finished unit is to be considered (here, for example, 10 kg). Furthermore, a building structure which transmits sound or vibration is unsuitable. - Page 21 Installation of Control and Compressor Control in open air column Control in closet display may be operated externally hose connectors For the installation, follow the same principles as described in of previous page. In addition, special installation notes applie for the open air column described in special installati- on instructions, which is included in delivery.
-
Page 22: Laying And Installation Of The Hoses
Laying and Installation of the Hoses Installation steps: - Cut 4 hoses (50 m result in max. 4 x 12.5 m hose length). - Mark at both ends according to its use with the supplied color strips. - Close hose ends temporarily (keep the inside clean) and pull all 4 hoses at once through the empty pipe from of the control to the tank. -
Page 23: Installation Of An Optional Float Switch
Installation of Float Switch A float switch for retrofitting is available optionally -With cable and installation clamp for the clearwater siphon - Cable lengths of 5m / 10m / 15m / 20m available - Bracket is clicked to the pipe - Height adjustable by moving on the pipe - Adjustment of the switching point to HW-min - Laying of the float switch cable together with hoses... -
Page 24: Installation View Of Kom In 3-Chamber Concrete Tank
Installation View KOM in 3-Chamber Tank - Concrete - The clearwater siphon has to be extended to the outlet by the customer - A sampling device has to be provided or a separate sampling chamber has to be set in the outlet by the customer. -
Page 25: Installation View Of Kom - Pakt In 2-Chamber Pe Tank
Installation View KOM-PAKT in 2-Chamber Tank - PE - The clearwater siphon has to be extended to the outlet by the customer - A sampling device has to be provided or a separate sampling chamber has to be set in the outlet by the customer. -
