Summary of Contents for CM CM-P3

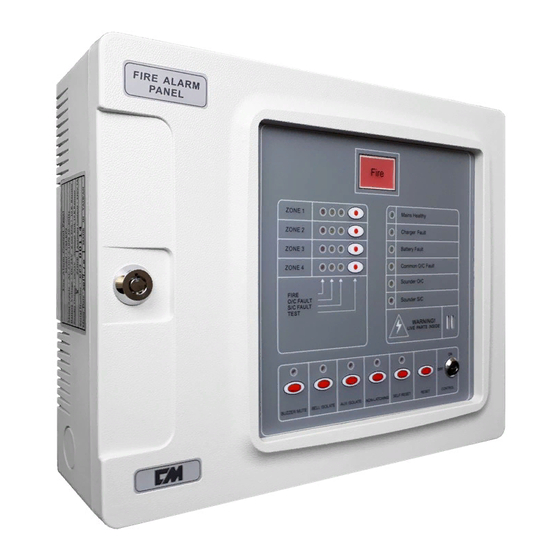

- Page 1 CM-P3 / CM-EP3 Conventional Fire Alarm Control Panel Manual Book 2016.03.02 REV.1 71114-023-E...
-
Page 2: Table Of Contents
CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment CONTENTS Ａ. Metal Cabinet Dimensions ……………………………………..2 Ｂ. Plastic Cabinet Dimensions ……………………………………3 Ｃ. Description …................4 Ｄ. Electric Characteristics …………………………………………4 Ｅ. Panel Functions ………...………………………………………4 Ｆ. Specification .…..………………………………………………..7 Ｇ. Basic Troubleshooting .…..……………………………………..8 Ｈ. -
Page 3: Ａ. Metal Cabinet Dimensions
CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment A. Metal Cabinet Dimensions Size (mm) (mm) (mm) Number of zone 1L / 2L / 4L / 5L / 8L 330 * 280 * 120 12L / 16L... -
Page 4: Ｂ. Plastic Cabinet Dimensions
CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment B. Plastic Cabinet Dimensions Size (mm) (mm) (mm) Number of zone 1L / 2L / 4L / 5L / 8L 260 * 330 * 96 12L / 16L / 20L... -
Page 5: Ｃ. Description
CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment C. Description The concept of module design is applied to each circuit board. The automatic testing function makes operation and maintenance easily and effectively. D. Electric Characteristics Input Power : AC 240V... - Page 6 CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment Mute When fire or error has happened, the control unit will sound as warning. Press “PANEL MUTE” button to stop the sound. When fire is happened, the fire alarm bell will ring on the spot.
- Page 7 CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment Indicator ZONE FIRE ALARM：light on indicating fire happened in specific zone. ZONE OPEN CIRCUIT：light on indicating detector broken circuit happened in specific zone. ZONE SHORT CIRCUIT：light on indicating detector short circuit happened in specific zone.
-
Page 8: Ｆ. Specification
CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment F. Specification Item Specification Model CM-P3 / CM-EP3 Category Conventional Fire Alarm Control Panel Type Wall-mount Power Source 240V AC 50 / 60 Hz ±10％ Standby Battery 24V DC... -
Page 9: Ｇ. Basic Troubleshooting
CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment G. Basic troubleshooting 1. The indicator of “Mains Healthy” doesn’t light up： (1) Check whether the mains of AC 230V and the battery power in working normally. (2) Check whether Fuse 1, Fuse 2 or Fuse 3 is burned. -
Page 10: Ｈ. Fuse Specification
CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment H. Fuse Specification Charging Voltage F1 Sounder 1 Fuse F2 ZONE 1 Sounder 2 Fuse F3 ZONE 8 Fuse-BATTERY Fuse-AC Charging Voltage F1 Sounder 1 Fuse F2 1.5A... -
Page 11: Ｉ. Wiring Diagram Of The Central Control Unit
CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment I. Wiring Diagram of the Central Control unit 1. 1 ~ 8L Manual Book... - Page 12 CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment 2. 9 ~ 16L Manual Book...
- Page 13 CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment 3. 17~24L Manual Book...
- Page 14 CM-P3/ CM-EP3 Conventional Fire Alarm Control Panel Yun Yang Fire Safety Equipment 4. 25 ~ 32L Manual Book...
