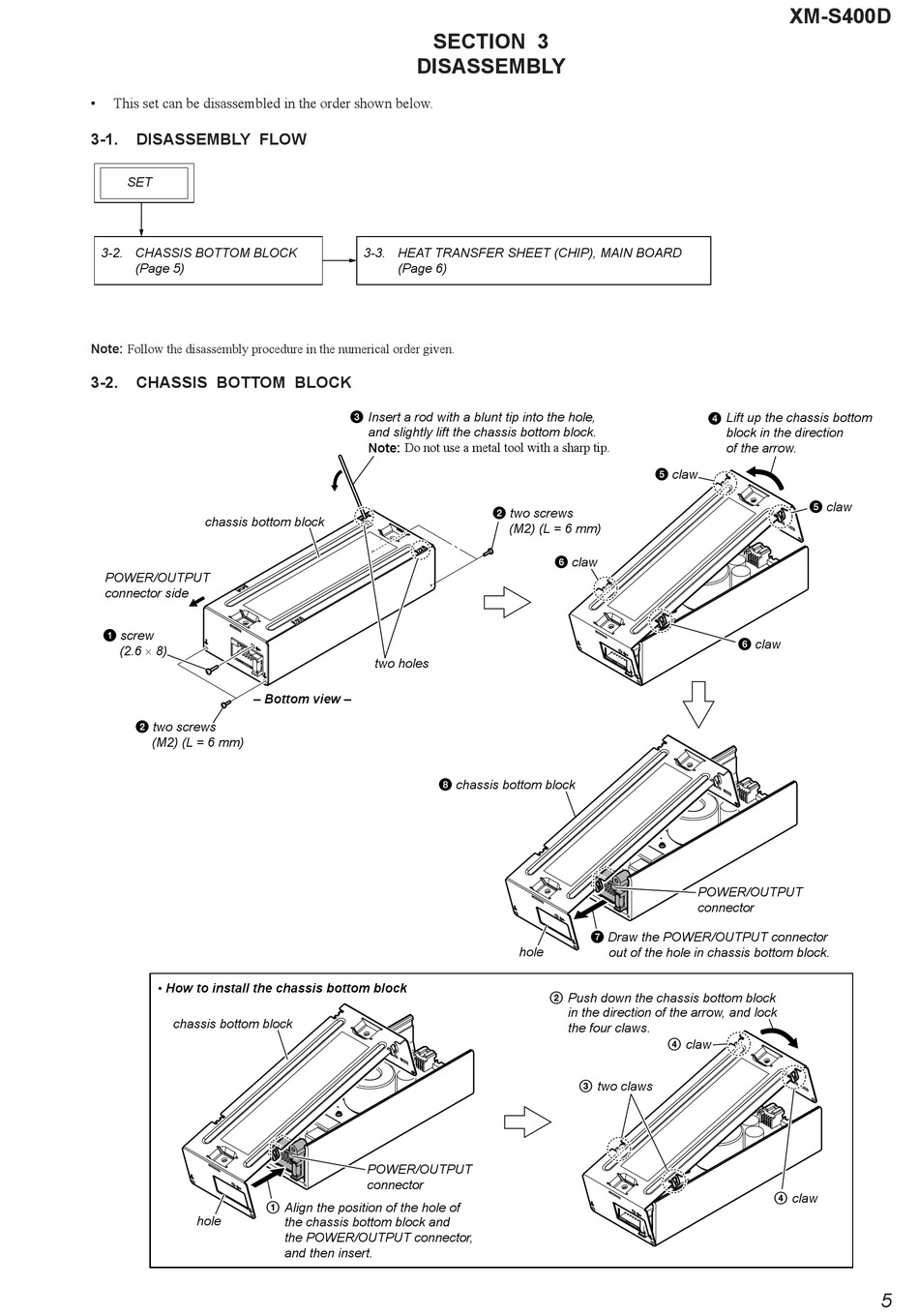

Section 3 Disassembly; Disassembly Flow - Sony XM-S400D Service Manual

• This set can be disassembled in the order shown below.
3-1.

DISASSEMBLY FLOW

SET
3-2. CHASSIS BOTTOM BLOCK
(Page 5)
Note: Follow the disassembly procedure in the numerical order given.
3-2. CHASSIS BOTTOM BLOCK
chassis bottom block
POWER/OUTPUT
connector side
1 screw
(2.6 8)
– Bottom view –
2 two screws
(M2) (L = 6 mm)
chassis bottom block
hole
SECTION 3
DISASSEMBLY
3-3. HEAT TRANSFER SHEET (CHIP), MAIN BOARD
(Page 6)
3 Insert a rod with a blunt tip into the hole,
and slightly lift the chassis bottom block.
Note: Do not use a metal tool with a sharp tip.
two holes
8 chassis bottom block
POWER/OUTPUT
connector
1 Align the position of the hole of
the chassis bottom block and
the POWER/OUTPUT connector,
and then insert.
5 claw
2 two screws
(M2) (L = 6 mm)
6 claw
7 Draw the POWER/OUTPUT connector
hole out of the hole in chassis bottom block.
2 Push down the chassis bottom block
in the direction of the arrow, and lock
the four claws.
3 two claws
XM-S400D
4 Lift up the chassis bottom
block in the direction
of the arrow.
5 claw
6 claw
POWER/OUTPUT
connector
4 claw
4 claw
