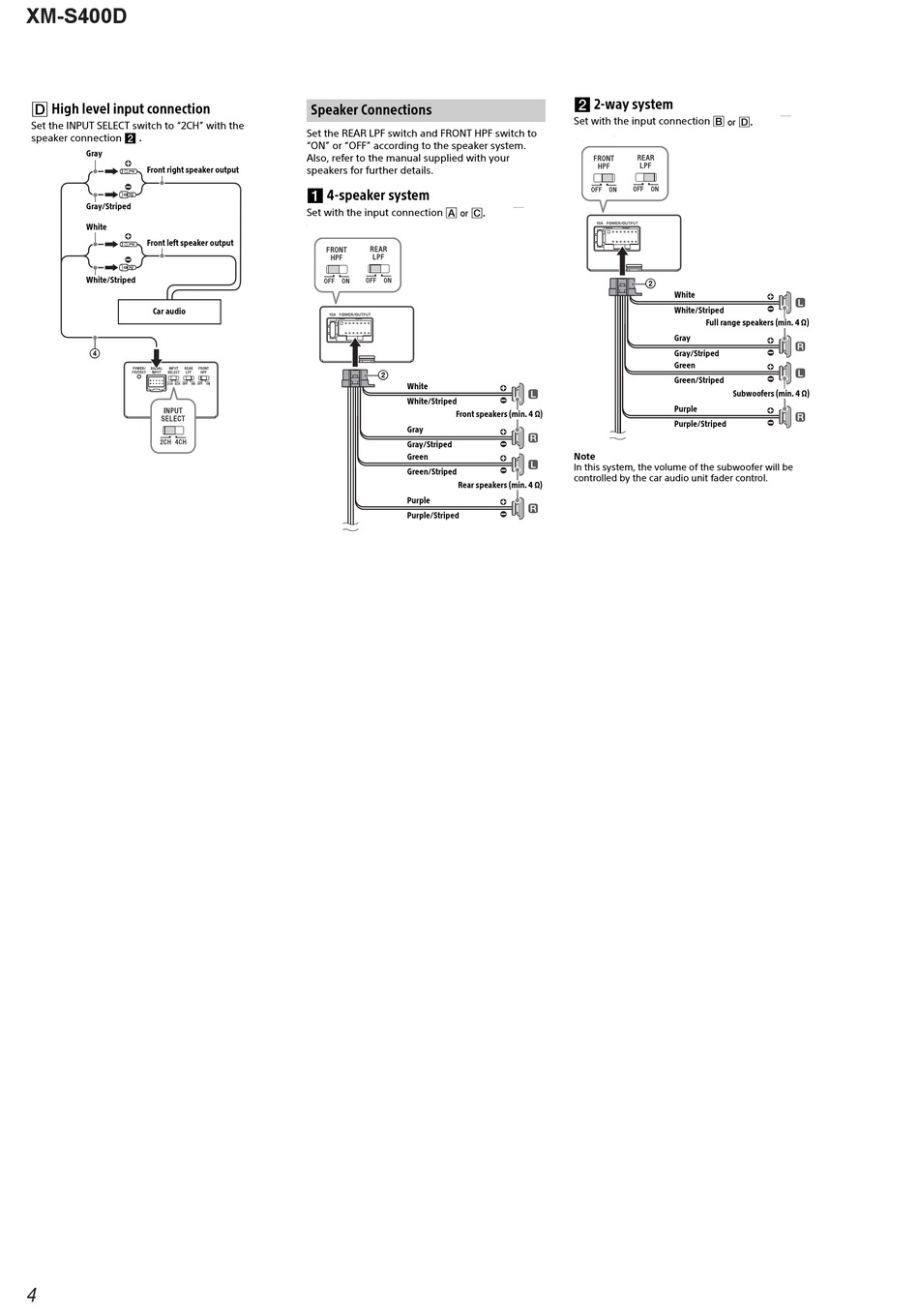

XM-S400D
High level input connection
Set the INPUT SELECT switch to "2CH" with the
.
speaker connection (page 9).
Gray
Front right speaker output
Gray/Striped
White
Front left speaker output
White/Striped
Car audio
4
Speaker Connections
Set the REAR LPF switch and FRONT HPF switch to
"ON" or "OFF" according to the speaker system.
Also, refer to the manual supplied with your
speakers for further details.
4-speaker system
Set with the input connection or C. (page 7) or
(page 8).
White
White/Striped
Front speakers (min. 4 Ω)
Gray
Gray/Striped
Green
Green/Striped
Rear speakers (min. 4 Ω)
Purple
Purple/Striped
2-way system
Set with the input connection (page 7) or or D.
(page 8).
White
White/Striped
Full range speakers (min. 4 Ω)
Gray
Gray/Striped
Green
Green/Striped
Subwoofers (min. 4 Ω)
Purple
Purple/Striped
Note
In this system, the volume of the subwoofer will be
controlled by the car audio unit fader control.
