Note:
• Due to standardization, replacements in
the parts list may be different from the
parts specifi ed in the diagrams or the com-
ponents used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked "*" are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• RESISTORS
All resistors are in ohms.
METAL: Metal-fi lm resistor.
METAL OXIDE: Metal oxide-fi lm resistor.
F: nonfl ammable
Ref. No.
Part No.
Description
A-2090-858-A
MAIN BOARD, COMPLETE (See Note)
********************
< CONNECTOR >
CN101
1-843-527-11
PIN, CONNECTOR 10P (SIGNAL INPUT)
CN501
1-843-330-31
PIN, CONNECTOR 16P
< LED >
D514
6-504-260-01
LED 1L034XG42A0CAT01 (POWER PROTECT)
< FUSE >
FU1
1-523-461-11
MINI FUSE (BLADE TYPE) (15 A/32 V)
< IC >
IC301
6-721-943-01
IC TAS5414CTPHDRQ1 (See Note)
IC503
8-759-836-33
IC TL594CDTB-R2
IC507
6-722-640-01
IC NJM78L18UA-TE1
< FET >
Q513
6-553-668-01
FET
Q514
6-553-668-01
FET
< SWITCH >
S101
1-570-114-31
SWITCH, SLIDE (INPUT SELECT)
S102
1-570-114-31
SWITCH, SLIDE (REAR LPF)
S103
1-570-114-31
SWITCH, SLIDE (FRONT HPF)
************************************************************
ACCESSORIES
************
4-581-373-11
MANUAL, INSTRUCTION (ENGLISH, FRENCH,
ITALIAN, PORTUGUESE, POLISH, RUSSIAN,
4-581-373-21
MANUAL, INSTRUCTION (ENGLISH) (IND)
************************************************************
Note: When the complete MAIN board or IC301 on the MAIN board are replaced, be sure to apply
the grease (OIL COMPOUND (KS609)) so as to cover the IC301 on the MAIN board.
SECTION 6
ELECTRICAL PARTS LIST
• CAPACITORS
uF: μF
• COILS
uH: μH
• SEMICONDUCTORS
In each case, u: μ, for example:
uA. .
: μA. . , uPA. . , μPA. . ,
uPB. . : μPB. . , uPC. . , μPC. . ,
uPD. . : μPD. .
Remark
NTMFS5C646NL
NTMFS5C646NL
GERMAN, SPANISH, DUTCH, SWEDISH,
ARABIC, PERSIAN, THAI) (U)
When indicating parts by reference num-
ber, please include the board name.
Only part of electrical parts that mounted
on the board of this unit can be replaced
for repair.
Since electrical parts that are not de-
scribed in the electrical parts list cannot be
replaced for repair, replace the complete
mounted board when these electrical parts
are defective.
Ref. No.
Part No.
Description

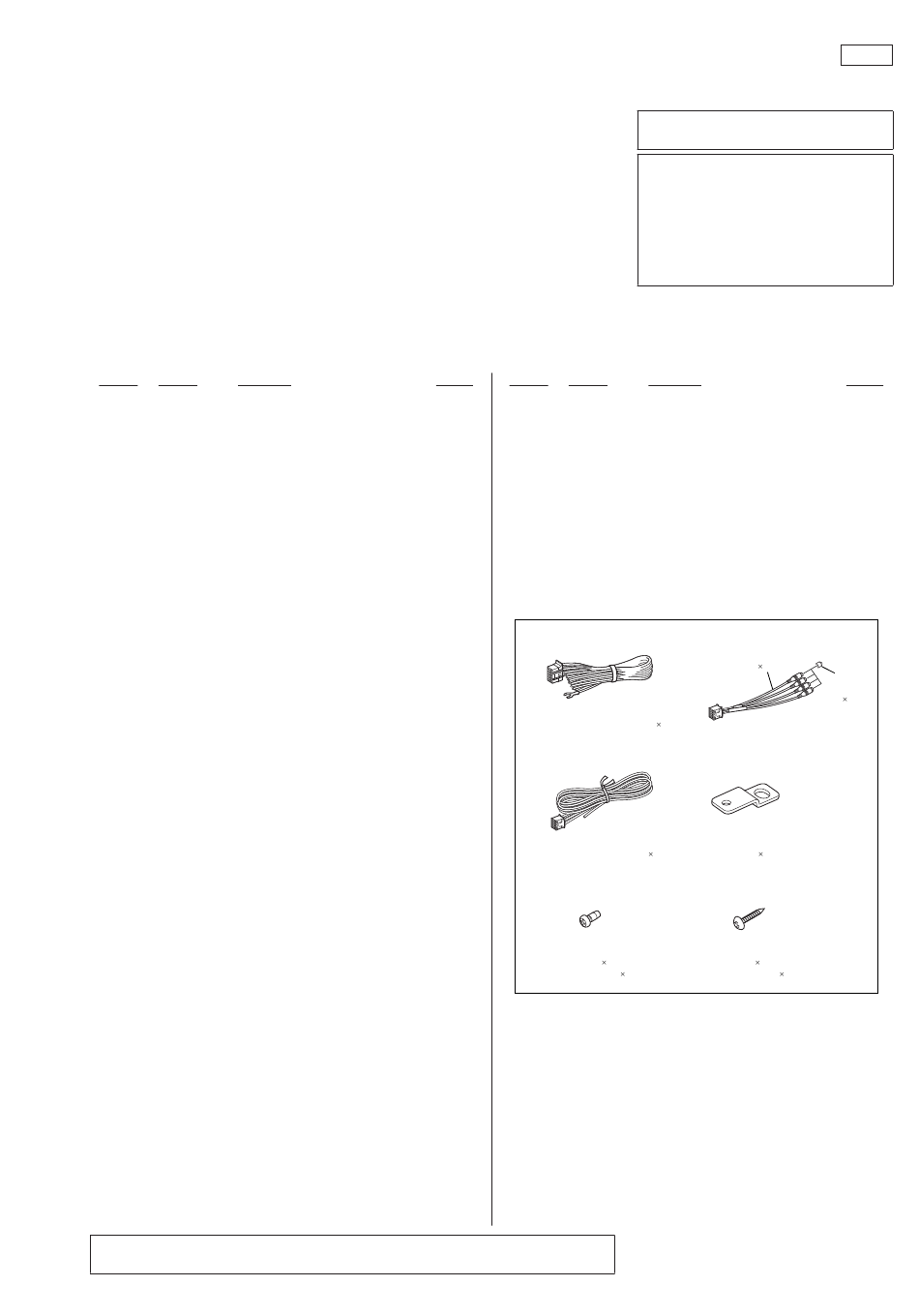

PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
501
1-849-186-11
CONNECTION CABLE (Power connection cable)
502
1-849-187-11
RCA CABLE 200 mm (RCA input cord)
503
3-264-798-01
CAP (for RCA input cord) (1 piece)
504
1-849-185-11
CABLE (WITH CONNECTOR) 1 m
505
4-578-769-01
BRACKET FOOT (Bracket) (1 piece)
506
7-685-792-09
SCREW +PTT 2.6X6 (S) (Bracket screw) (1 piece)
507
4-238-407-12
SCREW (1) (4X20), +BV TAPPING
501
POWER CONNECTION CABLE
1
504
HIGH LEVEL INPUT CORD
1
506
BRACKET SCREW
ø 2.6 mm
6 mm
2
XM-S400D
MAIN
Remark
(High level input cord)
(Mounting screw) (1 piece)
502
RCA INPUT CORD
1
503
CAP
4
505
BRACKET
2
507
MOUNTING SCREW
ø 4 mm
20 mm
2
15
