PART IDENTIFICATION CHART

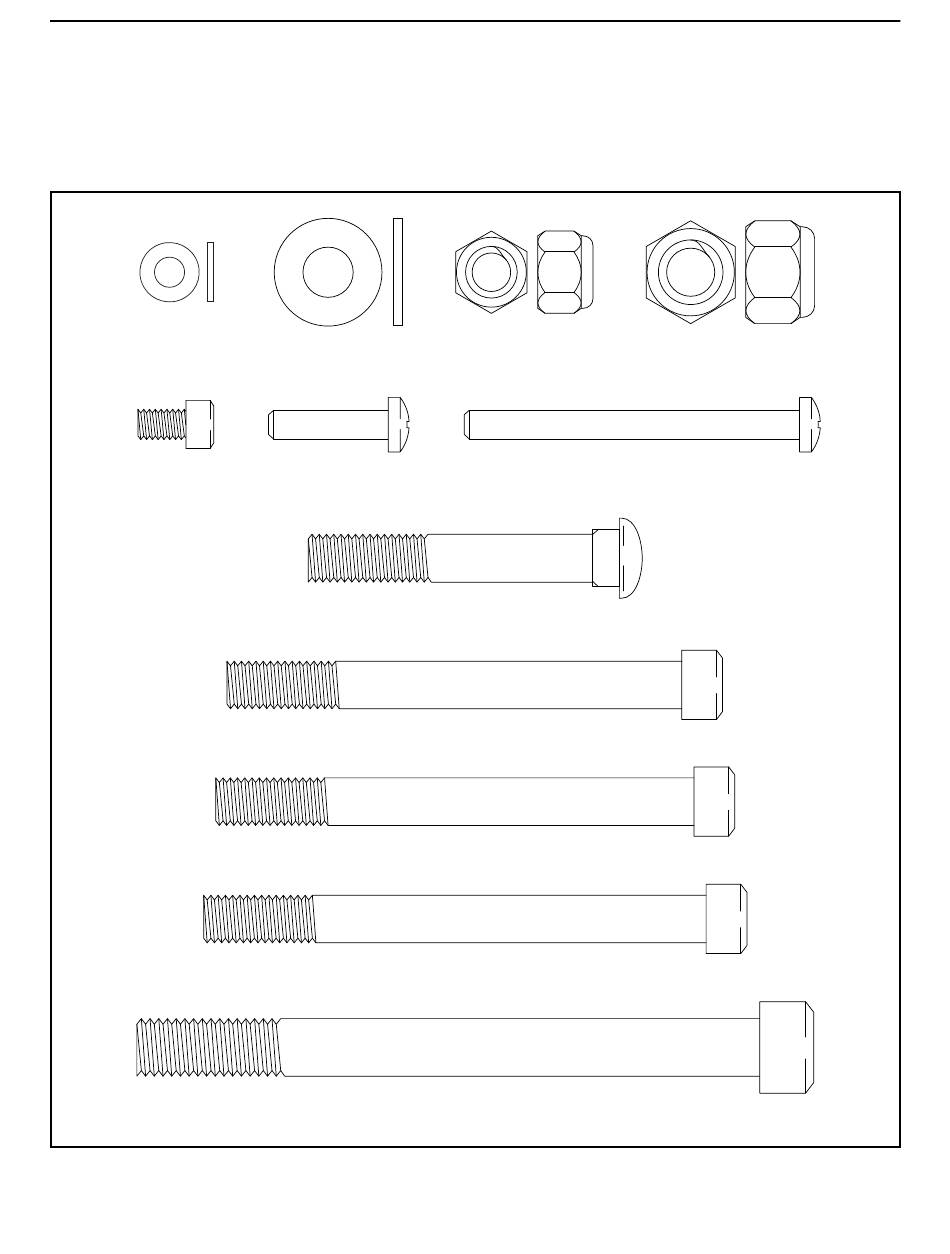

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see
whether it has been preassembled. Extra parts may be included.
M6 Washer
(25)–1
M6 x 10mm
Screw (19)–2
M10 Washer
(22)–6
M6 x 25mm
Screw (20)–6
M10 x 65mm Carriage Bolt (26)–2
M10 x 95mm Bolt (30)–2
M10 x 100mm Bolt (29)–2
M10 x 105mm Bolt (23)–2
M12 x 130mm Bolt (17)–1
M10 Locknut
(15)–8
M6 x 70mm Screw (24)–1
6
M12 Locknut
(16)–1
