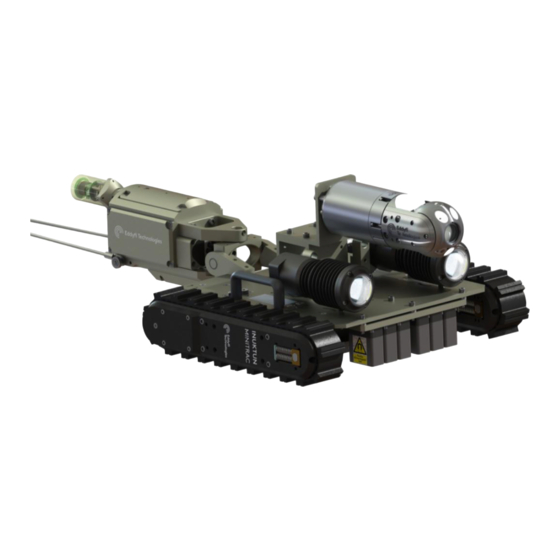

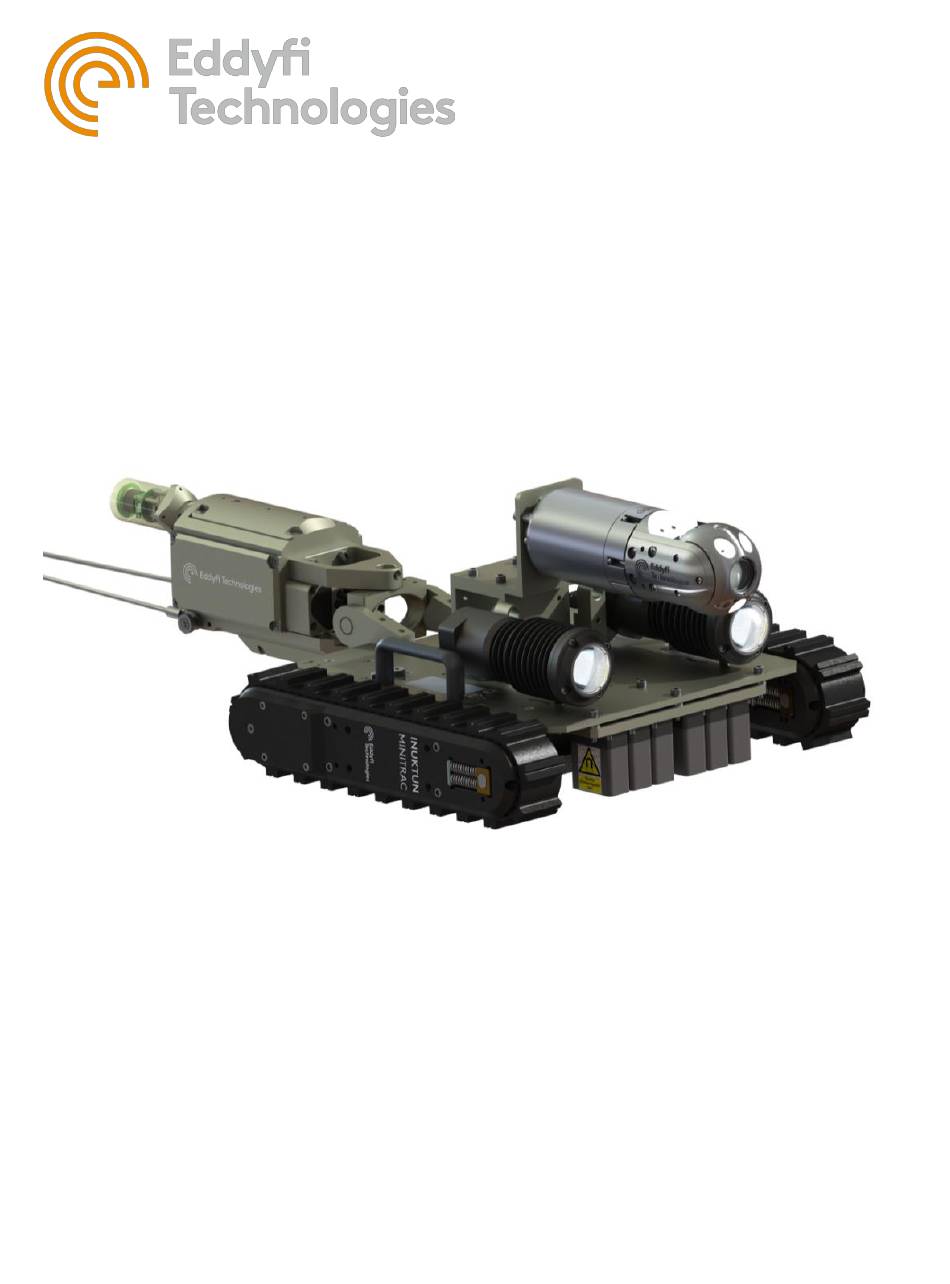

- Page 1 Eddyfi Robotics Inc. 2569 Kenworth Road, Suite C Nanaimo, BC, V9T 3M4 CANADA +1.250.729.8080 info@eddyfitechnologies.com www.eddyfitechnologies.com Magg™480 Magnetic Inspection Crawler...
-
Page 2: Table Of Contents
Magg™ 480 User Manual Table of Contents About this Manual ............................5 Description ..............................5 Specifications ............................6 Certification ............................... 6 Safety ................................ 7 System Setup .............................. 11 Personnel Requirements ........................11 Working and Storage Environment ......................11 System Power ............................12 Power Requirements ........................... - Page 3 Magg™ 480 User Manual Minitrac™ Control ..........................24 Camera / Light Installation ........................25 Payload Calculations ........................... 26 Fall Arrest ............................. 27 Shipping ............................... 27 Operation..............................28 Pre-Operations Check ..........................28 Post-Operations Check ........................... 29 ICON™ Software ............................ 29 Power-Up Sequence ..........................29 Ground Fault Detection &...
- Page 4 Magg™ 480 User Manual Ordering Parts/Customer Service ......................37 Warranty Repairs ............................ 37 Factory Returns to Canada ........................38 Product/System Drawing Package Availability ..................38 Limited Warranty Policy ..........................38 Document: UMDU011367.docm Revision: A06 Created by: JS Date: 13 Apr 2021 IPN: 3063241-A06 Source Location: C:\ePDM\ISLEng\Products\DU-MiniMag\Manuals\UMDU011367.docm Page 4 of 38...
-
Page 5: About This Manual
Furthermore, schematics or pictorials and detailed functionality may differ slightly from what is described in this manual. Eddyfi Technologies reserves the right to change and/or amend these specifications at any time without notice. Information in this manual does not necessarily replace specific regulations, codes, standards, or requirements of others such as government regulations. -
Page 6: Specifications
Actual travel distance may be decreased depending on inspection geometry (traction and number of bends) Maximum power requirements depend on tether reel options Certification The Magg 480 system is built in accordance with the Low Voltage Directive 2014/35/EU, Machinery Directive 2006/42/EC, and Electromagnetic Compatibility Directive 2014/30/EU. Document: UMDU011367.docm... -
Page 7: Safety
The power supply is equipped with a ground fault interrupt circuit. Do not cheat or bypass the ground fault interrupt circuit. Do not power the equipment from a source other than the Eddyfi Technologies provided power supply. Document: UMDU011367.docm Revision: A06... - Page 8 Magg™ 480 User Manual WARNING: Magnetic Pinch Hazard – The magnetic chassis is fitted with rare earth magnets. These magnets are very strong and create an immanent pinch hazard. Use caution when handling the magnets or vehicle near steel objects and tools, they may snap together unexpectedly.
- Page 9 All personnel operating or maintaining this equipment must be trained and competent. • Eddyfi Technologies equipment is used in many varied environments from hot/dry to confined spaces to deep underwater. Such diverse environment risks must be addressed by the operators who are trained to work in such surroundings.
- Page 10 Magg™ 480 User Manual WARNING: Mechanical Pinch Hazard – Rotating or moving components can draw fingers into a pinch position. Do not handle the vehicle while mobile parts are running, turn off power or disconnect the tether while reconfiguring or maintaining the vehicle.
-
Page 11: System Setup
Magg™ 480 User Manual System Setup Personnel Requirements Basic deployment of the Magg™ 480 system may be performed by one person. Operations at more complex worksites may require two people, especially when the console location is removed from the point of deployment. •... -
Page 12: System Power
Magg™ 480 User Manual System Power Power Requirements The power requirements given below are maximums for a fully configured system with cable reel. use with 115 VAC source, a fully configured Magg™ 480 system requires three independent standard 15 A circuits for power, or one 20 A and one 15 A circuits as follows. Set the Line Voltage Before powering on the Magg™... -
Page 13: Connections
Magg™ 480 User Manual Connections Pre-Configured Control Rack The monitor, computer, interface box and power supply are typically installed and connected in a shock- mount portable 19 in rack case. Systems pre-configured in a control rack will only need the tether, winch and vehicle connections to be made before operations. -
Page 14: Control System Connections - Sd Video
Magg™ 480 User Manual Control System Connections – SD Video The ability to receive standard definition or high definition video depends on the interface box used with the system. A standard definition interface box is depicted below which would be connected to the high voltage power supply. - Page 15 Magg™ 480 User Manual video system) and D, E or F for rear video. There are spare front and rear video outputs which can be connected to external monitors. 6. Options for HD video out include HD-SDI, USB3 (internal capture device) and component Pr-Y- Pb.
-
Page 16: Vehicle And Tether
Magg™ 480 User Manual Vehicle and Tether It is important that the tether be properly connected to the vehicle – otherwise damage to the system may result. 1. Connect the vehicle end of tether to the back of the integrated harness block. Visually line up the key in the connector before mating. -
Page 17: Winch Installation
Magg™ 480 User Manual Winch Installation If your system includes an AC powered winch refer to the winch manual for setup and installation instructions. Portable Reel Setup If your system includes a portable reel, follow these steps to operate: 1. Remove the shipping cap from the front of the case and insert the crank handle. 2. -
Page 18: Mini-Reel Setup
Magg™ 480 User Manual Mini-Reel Setup If your system includes a Mini-Reel, follow these steps to operate: 1. Remove the Mini-Reel from the shipping case. 2. Connect the deck cable from the reel to the Video Interface and Power Supply. 3. -
Page 19: Connector Handling
Magg™ 480 User Manual • Do not kink the tether • Do not snap load the tether • Avoid loading the tether whenever possible • Always use the cable grip strain relief if applicable to your system • Regularly inspect the tether for damage •... - Page 20 Magg™ 480 User Manual Document: UMDU011367.docm Revision: A06 Created by: JS Date: 13 Apr 2021 IPN: 3063241-A06 Source Location: C:\ePDM\ISLEng\Products\DU-MiniMag\Manuals\UMDU011367.docm Page 20 of 38...
-
Page 21: Vehicle Configuration
Magg™ 480 User Manual Vehicle Configuration Magnet Removal / Installation The Magg™ 480 comes equipped with two extremely powerful magnet modules. It is recommended that these modules remain on the vehicle to minimize handling and potential injury. If they must be removed take the following precautions: 1. - Page 22 Magg™ 480 User Manual To remove the modules from the vehicle, do the following: 1. Lay the vehicle on its side; bracing may be required. 2. Cover the top magnet module with foam, wood or some other non-ferrous material at least 50 mm (2 in) thick.
-
Page 23: Magnet Spacing
Magg™ 480 User Manual Magnet Spacing The Magg™ 480 vehicle uses two very powerful permanent magnet modules to adhere the vehicle to a wall or pipe. In order to change the magnetic adhesion force, the spacing of the magnets away from the driving surface can be changed by rotating the height adjustment screws (4x M8 HEX BOLTS) by a full turn at a time, in a star pattern across the four corners. -
Page 24: Peripheral Devices
Magg™ 480 User Manual Peripheral Devices Minitrac™ Mounting The Magg™ 480 comes equipped with two Minitracs™ 8000s. In order to remove the tracks, the magnet modules must first be removed (see Magnet Removal / Installation). Once the magnets are removed the tracks can be dis-mounted by removing 6x M6 x 16 mm SHCS from the inner mounting rails. -
Page 25: Camera / Light Installation
Magg™ 480 User Manual surface. The Magg™ 480 vehicle can be ‘parked’ on a vertical surface by orientating the tracks sideways instead of up/down. WARNING: Track Creep – The Minitracs™ on the vehicle may back-drive and creep downwards while operating on a vertical surface. WARNING: Clutched Tracks –... -
Page 26: Payload Calculations
Magg™ 480 User Manual Payload Calculations FIGURE 1: PAYLOAD CALCULATION The maximum payload calculation is based on the magnet’s ability to resist the gravitational moment (or torque) induced at the driving surface. When payload weight and/or distance from the wall is increased, the vehicle tries to pivot away from the wall and the magnets resist this moment. -
Page 27: Fall Arrest
Magg™ 480 User Manual Fall Arrest Due to the weight of the Magg™ 480 vehicle, the Minitracs™ will back drive and not hold the position of the vehicle during power loss or power shutdown. A lifeline or fall arrest system should be used at all time when the vehicle is navigating on a vertical or inverted horizontal position. -
Page 28: Operation
Magg™ 480 User Manual Operation Pre-Operations Check Before each deployment of the Magg™ 480 system, ensure everything is completed on the following checklist. ❑ Check that the work area has been safely set up. ❑ Fall arrest is in place for vertical or inverted use. ❑... -
Page 29: Post-Operations Check
Magg™ 480 User Manual Post-Operations Check A Post-Ops inspection should be carried out after every deployment using the following checklist: ❑ Inspect the tether for damage as it is reeled in. ❑ Visually inspect vehicle for entrained debris or mechanical damage. ❑... -
Page 30: Ground Fault Detection & Alarms
Magg™ 480 User Manual Note 2: ICON always begins with identification of attached system components (cameras, tracks, etc.). If vehicle power is turned on after ICON is started, the system will not function until ICON is closed and restarted. Ground Fault Detection & Alarms The front of the high voltage power supply includes power on and off buttons as well as status indicators. -
Page 31: Driving The Vehicle
Magg™ 480 User Manual Driving the Vehicle When driving the vehicle, the operator should always be conscious of things that could cause the vehicle to disengage from the driving surface, either by drastically increasing magnet gap or overcoming the magnetic force entirely. These include the following: •... -
Page 32: Vehicle Recovery
Magg™ 480 User Manual Vehicle Recovery In the event the vehicle becomes disabled while on a mission in a pipe, provision has been made for recovery of the vehicle by pulling it out with the tether. Recovering the vehicle by pulling is a serious operation and can put great demand on the tether system. -
Page 33: Video Problems
Magg™ 480 User Manual Video Problems • No video (black or blue background) Interface box is not turned on. Video cables are not hooked up between interface box and computer. Camera connector on vehicle is loose (turn power off first before plugging in camera). Check that the camera harness whip is plugged into the correct socket on the telemetry can. -
Page 34: Winch Problems
– either submerged or in salt spray, regardless of camera or track material. Eddyfi Technologies’ vehicles are designed to use aluminum marine anodes. Aluminum anodes are common in the marine industry and are replacing zinc anodes in many areas. For vehicle systems that are often pulled in and out of the water, aluminum anodes are especially important, as zinc anodes tend to scale over when exposed to air and may not reactivate when submerged again. -
Page 35: Rinsing And Cleaning
Magg™ 480 User Manual be only one anode type throughout. Magnesium anodes must never be used with Eddyfi Technologies equipment. Because many of the chassis parts are electrically isolated, the anodes provide protection by proximity rather than by direct conductive contact. Anodes are installed onto the Magg™ 480 as illustrated below with Loctite 243 (blue). -
Page 36: Fuse Replacement
Refer to the Spectrum 90™ or Spectrum 120HD™ manual for camera maintenance and servicing instructions. Tether Re-termination Tether termination is a specialized service beyond the scope of this manual. Contact Eddyfi Technologies if the tether is damaged or requires re-termination. Document: UMDU011367.docm... -
Page 37: Parts And Repairs
2569 Kenworth Road, Suite C Nanaimo, BC, V9T 3M4 CANADA TF 1.877.468.5886 T +1.250.729.8080 info@eddyfi.com www.eddyfitechnologies.com Eddyfi Technologies – US (American Authorized Distributor and Service Centre) 812 W 13th Street Deer Park, TX, 77536 T +1.281.542.3292 info@eddyfi.com www.eddyfitechnologies.com Warranty Repairs Warranty conditions are specified in the Warranty section. - Page 38 Warranty claims must return to the factory for evaluation. To return an item for evaluation or repair, first contact Eddyfi Technologies at our toll-free number or e- mail address. Eddyfi Technologies will supply a Return Merchandise Authorization (RMA) number with detailed shipping and customs instructions.
