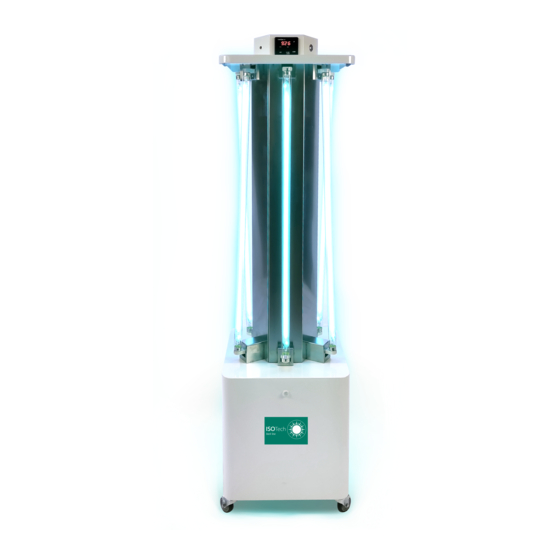

Summary of Contents for ISO Italia Group UVC HUNTER
- Page 1 I S O I TA L IA G R OU P S. r. l . Italian Spa Beauty and Tanning Equipment www.isobenessere.com www.isoitalia.com www.steril-line.com UVC HUNTER USER’S MANUAL Read all precautions and instructions in this manual before using this equipment contact@isoitalia.com UVC Hunter 20070E...
-
Page 2: Attention And Recommendations
– the copy, reproduction or partial dissemination, by any means of this document is prohibited without the express written permission of ISO Italia Group, which reserves all rights under law No. 633 of 22/4/1941, and subsequent amendments, in order to protect copyright and other... - Page 3 If in doubt, consult the installation and maintenance company of the electrical system. ISO ITALIA GROUP does not make and does not modify the electrical system and assumes no responsibility in this regard, it advises against the use of plug boards, adapters or extension leads to connect the appliance to the system.
-
Page 4: Technical Features Uvc Hunter
STERILIZZATORE D’ARIA HUNTER UVC ELECTRICAL CHARACTERISTICS Single-phase supply Electricity frequency Electric power max. Model voltage [Hz] [Vac] HUNTER UVC 350W ELECTROMAGNETIC FIELDS Maximum measured weighted Maximum limit imposed Model outcome value (CEI EN 62233) Hunter UVC 0,07 COMPLIANCE Other technical-construction characteristics of the product Characteristic References Code for spare parts... - Page 5 DIMENSIONS AND MECHANICAL CHARACTERISTICS The Hunter trolley is presented as a single component having the following measures Overall dimensions Width 400 mm Height 1500 mm Depth 400 mm Indicative weight : ~ 25 Kg Reset button TIMER The handling of the Hunter trolley must be carried out with caution, through the handles on the upper structure as the lamps are visible and therefore fragile if they are accidentally hit.
-
Page 6: Functional Characteristics And Use
Chairman, legal representative, under his own personal responsibility, Hereby DECLARES that the Model UVC HUNTER with code: HUNTER Device for the sterilization of surfaces, environments and objects with the use of UVC lamps is in accordance with the requirements of the following Community Directives, including the latest amendments, and with the relevant national transposition legislation: ·... -
Page 7: Functional Characteristics And Use
(preferably in the center of the environment you want to sanitize) and leaving it at least one meter away from the closest object (so as not to create an area of shadow). UVC Hunter is particularly suitable for facilities open to the public that need to sanitize multiple rooms daily: hotels, shops, beauty centers, spas, polyclinics, hospital rooms, retirement homes and etc. - Page 8 TIME OF USE HUNTER Referring to the declared irradiance for each of the lamps used in terms of UVC energy, 1.7 w / m² at a distance of one meter. In relation to and to the doses reported in official tables for the destruction of microorganisms, we can indicate that, with the cycles shown below in the different configurations, 99% of bacteria are killed on the surfaces and objects that are irradiated.
-
Page 9: Basic Concepts Uv Rays
TECHNICAL INFORMATION ON THE USE OF UVC IN ISO TECH PRODUCTS UV-C radiation is a proven and effective technology for destroying micro-organisms Iso Italia Group, with over 30 years of experience in UV lamp sector presents its product line for disinfection with UVC Steril Line germicidal lamps. - Page 10 UV BASICS Ultraviolet light belongs to the electromagnetic spectrum with a wavelength between 200 and 400 nm (nanome- ters), which is shorter than visible light, but longer than X-rays. All UV rays and bands are invisible to the human eye. The UV spectrum can be divided into the following bands: UV-A (Long Waves;...
- Page 11 DOSAGE DETERMINES EFFICACY The amount of UV-C energy required to inactivate a given micro-organism is measured on the basis of the dose, which is determined by a combination of radiation energy and exposure time. A key difference between surface inactivation and airflow inactivation of micro-organisms is exposure time. The residence time in the UV field for micro-organisms in the airflow is in the order of seconds and would require a much higher UV-C dose compared to surface application.
-
Page 13: Timer K400
TIMER MPI17618 FUNCTIONING DESCRIPTION SETTINGS AND COUNT-DOWN FUNCTIONALITY To set the time of a work cycle, press the SET key once. The numbers corresponding to the “seconds” will flash first; then adjust the value with the UP and DOWN keys. Subsequently, if you want to further increase the time, press the SET button again. -
Page 14: Installation And Commissioning
CONTACT WITH WATER IS POSSIBLE. THE APPLIANCE MUST NOT BE USED IN POTENTIALLY EXPLOSIVE ATMOSPHERES. DESCRIPTION OF UVC HUNTER COMPONENTS Once the packaging has been removed, the equipment is presented in the following way excluding the lamps that are sup- plied separate in order to guarantee their integrity during transport. - Page 15 COMMISSIONING The UVC Hunter model is supplied assembled but with the lamps separately; after the installation of the lamps (see paragraph “maintenance and changing lamps”) the product is ready to be connected to the electricity supply network, referring to what is reported in the paragraph “Connection to the electricity network”.
-
Page 16: Connection To The Electricity Network
SES THE SAFETY OF PEOPLE AND ANIMALS. Other technical notes On the back of the base of the UVC Hunter trolley there is a removable panel, fixed with 4 screws, inside which the electrical components that make up the trolley control system are located. -
Page 17: Maintenance
MAINTENANCE In order to maintain the sanitizing and germicidal efficiency of UVC HUNTER, it is essential to scrupulously comply with the maintenance program indicated below. CAUTION!! Before any type of maintenance, especially internal ones, it is mandatory to disconnect the components from the power supply. - Page 18 For a history of maintenance and assistance, it is recommended to use the form below, keeping it together with the product manual. Model equipment maintenance program: Serial number: Date intervention description replaced materials Note N°...
-
Page 20: Correct Disposal Of The Product
The maintenance booklet, in which, for example, all the technical work carried out is recorded, should be kept in a safe place. Also, please remember that a copy of the “Installation sheet” is to be returned to ISO Italia Group. -
Page 21: Table Of Contents
UVC HUNTER GENERAL INDEX ATTENTION AND RECOMMENDATIONS ....................2 TECHNICAL FEATURES UVC HUNTER ....................4 FUNCTIONAL CHARACTERISTICS AND USE ..................6 DECLARATION OF CONFORMITY ......................6 FUNCTIONAL CHARACTERISTICS AND USE ..................7 BASIC CONCEPTS UV RAYS ........................9 TIMER K400 ..............................13 INSTALLATION AND COMMISSIONING .....................14 CONNECTION TO THE ELECTRICITY NETWORK ................16 MAINTENANCE ............................17...
