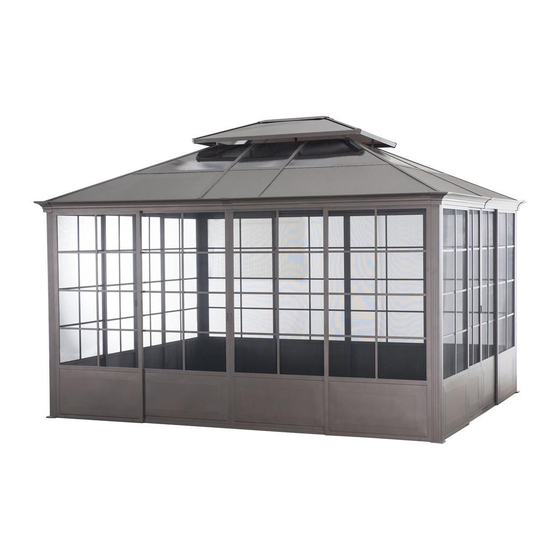

- Page 1 ITEM NO.:A108000100 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com customer.care@sunjoygroup.com 1-(866)-578-6569 Country of Origin: China Production Number: xxxxxxxxxx...
- Page 2 Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the gazebo. Caution! Always keep children under close supervision while they are playing around this product. Never leave children unattended. Keep pets away while setting up the gazebo.
- Page 3 P007600034 P004100077 P004100078 P007600035 P004100075 P007600032 P007600033 P004100076 P003300023 P000500688 P007600036 P000200273 P002200105 P007600037 P007600038 P002200106 P005000235 P007600039 P005600154 P005000236 P000500686 P005000237 P000500685 P005000238 P000400587 P000500687 P005600153 P000400586...
- Page 4 P000400585 P000700325 P000400584 Cover Piece(Right) - 4 P000700326 P000500681 Small Top Connector - 1 P000800142 Small Top Long Side Cover Sheet - 2 P000900051 P000800141 Small Tectum Small Top Short Side Cover Sheet - 2 P000600841 P005600151 P000600842 P005600152 P000600838 P005600155 P000500684 P005600156...
- Page 5 H010020011 Bolt M6*15 - 164+17 Spare H050010020 +24 Spare H010020015 Bolt M6*25 - +4 Spare H010020013 H010020009 H010020016 H010130001 Bolt M5*15 - 32+4 Spare H070010006 - 12 H090010017...
- Page 6 CAUTION! • Proper placement of the gazebo is essential. Do not place the product underneath electrical lines. • Keep children under close supervision while they are playing around this product. This product contains small parts which can be swallowed by children.
- Page 7 STEP 1: Assembly of Fixed Frame and Post...
- Page 8 STEP 2: Assembly of Long Guide and Short Guide...
- Page 9 STEP 3: Assembly of Long Guide and Short Guide...
- Page 10 STEP 4: Assembly of Support Tube...
- Page 11 STEP : Assembly of Long Support Tube and Short Support Tube 16x 16x...
- Page 12 STEP : Assembly of Middle Beam Connector and Slant Beam Connector 28x 28x...
- Page 13 STEP 7: Assembly of Short Side of Big Top Frame...
- Page 14 STEP 8: Assembly of Slant Beam For Small Roof...
- Page 15 STEP 9: Assembly of Small Tectum and Hook...
- Page 16 STEP 10: Assembly of Slant Beam For Big Roof...
- Page 17 STEP 11: Assembly of Middle Beam For Big Roof 12x 12x...
- Page 18 STEP 12: Assembly of Short Support Tube...
- Page 19 STEP 13: Assembly of Small Top Long Side Cover Sheet 12x 12x...
- Page 20 STEP 14: Assembly of Sunshine Plate and I-Shaped Slot...
- Page 21 STEP 15: Assembly of Left Baffle For Slant Beam and Cover Piece 20x 20x...
- Page 22 STEP 16: Assembly of Long Side Left Decorative Groove...
- Page 23 STEP 17: Assembly of Decorative Groove Connecting Piece 14x 14x...
- Page 24 STEP 18: Assembly of Corner Trim...
- Page 25 STEP 19: Assembly of Sliding Door and Pulley...
- Page 26 STEP 20: Assembly of Short Guide...
- Page 27 STEP 21: Assembly of Long Guide...
- Page 28 STEP 22: Assembly of Guide Rail Baffles...
- Page 29 STEP 23: Assembly of Stake...
-
Page 30: Care And Maintenance
CARE AND MAINTENANCE • Before using, clean the product completely with soft, dry towel. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. •...
