ARX 500/A106 and ARX500+/ A107
RMA4 Replacement Script
March 9, 2011
Version 1.02

Advertisement

loading
Need help?

Need help?

Do you have a question about the Acopia ARX 500/A106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for F5 Acopia ARX 500/A106

Summary of Contents for F5 Acopia ARX 500/A106

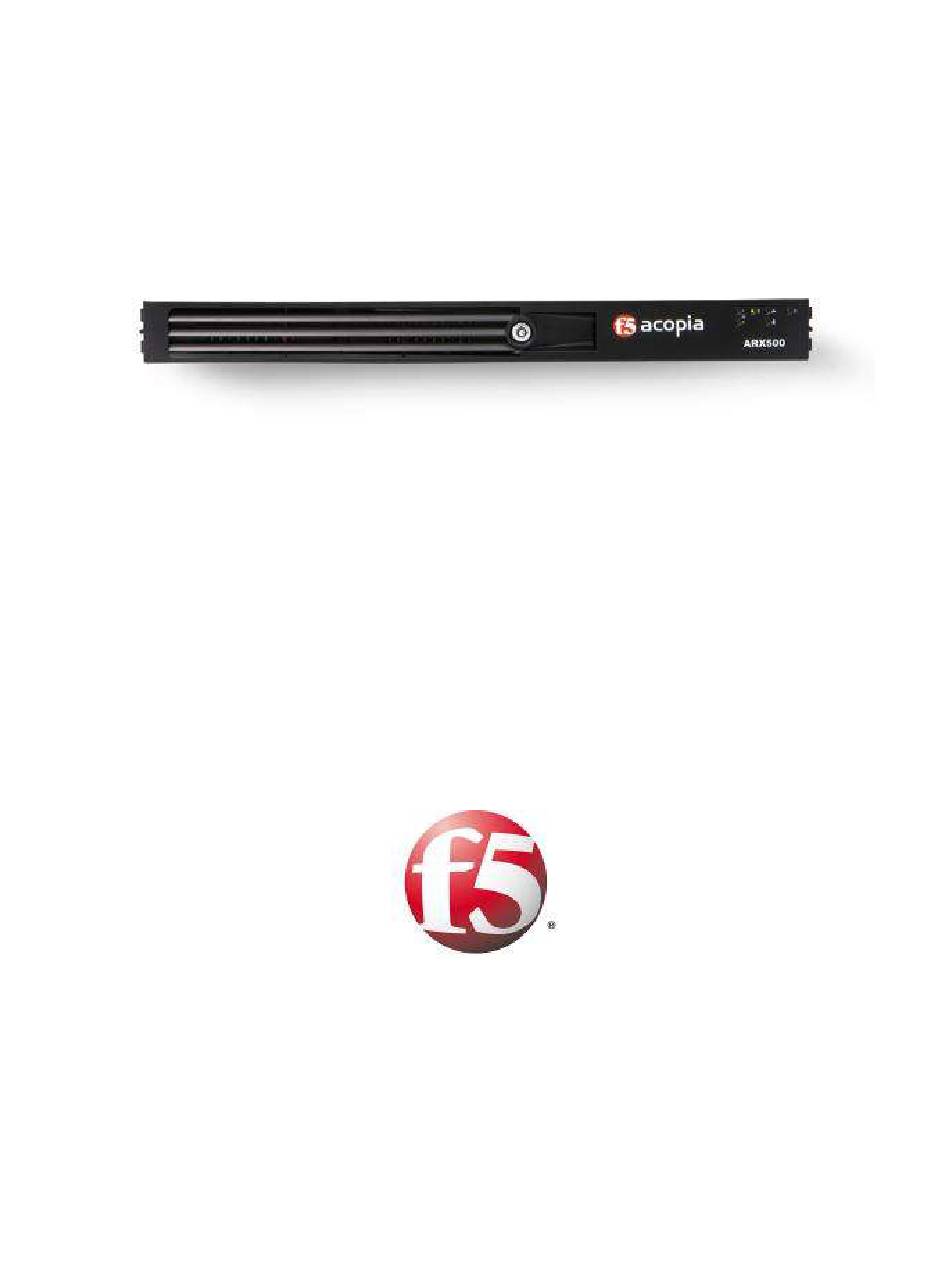

  • Page 1 ARX 500/A106 and ARX500+/ A107 RMA4 Replacement Script March 9, 2011 Version 1.02...
  • Page 2 ARX500 Chassis Overview – Front with Bezel - 1 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 3 Allows for the attachment of a video monitor to the front of the chassis. NOTE: You cannot use the front and read video ports at the same time - 2 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 4 RJ-45 100/1000 Base-T Ethernet (copper) port for “Port 1/1”) client/server traffic and in band management Redundancy-link Port RF-45 100/1000 Base-T Ethernet (copper) port for the dedicated connection to a redundant HA peer. - 3 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 5 Step 2 Remove rack screws  Instruct the Field Tech to remove rack screws on both sides that hold the chassis and rail kit to the rack. Fig. 2 - 4 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 6 - 5 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 7  Instruct the Field Tech to gently pull the unit out of the rack using the rack mount handles until the rail latch snaps into place and the rails reach full extension. Fig. 3 Fig. 4 - 6 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 8  Instruct the Field Tech to remove the ARX 500 chassis from the rail kit by locating the gold latches on either side of the rails and pull up on the end of the latch pointing toward the front of the unit. Fig. 4 Fig. 5 - 7 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 9  Instruct the Field Tech to slide the ARX500 forward and then remove the chassis from the rail Fig. 6 Fig. 7 - 8 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 10  Instruct the Field Tech to reach toward the back of the rail kit to release the locking tabs on either side of the rails and push the chassis partway into the rack. Fig. 9 - 9 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 11 Fig. 10  Instruct the Field Tech to replace the screws to secure the chassis to the rack Fig. 11 - 10 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 12  Instruct the Field Tech to standby while you ensure that the Replacement is functional. Step 8 Replace front bezel  Once you are satisfied that the Replacement is working, instruct the Field Tech to re-install the front bezel. - 11 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
  • Page 13 Step 9 Initial Interview Process, Software Restoration and Licensing Steps From this point on, all steps are executed by the NSE. Technician should be instructed to remain onsite just in case if he is needed for troubleshooting. - 12 – Copyright © 2010, F5 Networks, Inc. All rights reserved.
