CyberData 011304 Installation Quick Reference page 2

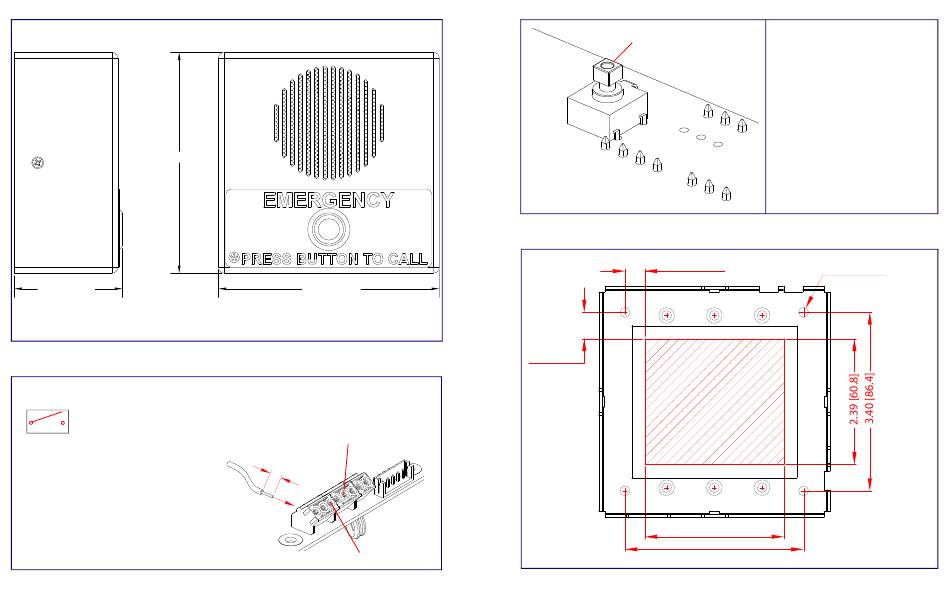

Dimensions
4.53 [115.0]
2.22 [56.3]
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
© 2017, CyberData Corporation, ALL RIGHTS RESERVED
4.53 [115.0]
DIMENSIONS ARE IN INCHES [MILLIMETER]
Use a 3.17 mm (1/8-inch) flat blade
screwdriver for the terminal block screws
Wire (IN)
0.25"
1
8
Terminal Block
can accept 16 AWG wire
930945C
RTFM Button
Maximum Recommended Wall Cutout Dimensions
0.50 [12.8]
Quick Reference Quick Reference
When the device is operational and linked to a net-
work, you can use the Reset Test Function Man-
RTFM button (SW1)
agement (RTFM) button (SW1 [see picture]) to
announce the device's IP address or restore the
device to the factory
default settings.
To announce the device's current IP address:
• Press and release the RTFM button within a
five second window.
Note
To restore the device to factory default settings:
• Press and hold the RTFM button for longer
than five seconds until you hear the device
announce that it is restoring the factory default
settings.
0.38 [9.5]
2.65 [67.3]
3.40 [86.4]
DIMENSIONS ARE IN INCHES [MILLIMETER]
930945C © 2017, CyberData Corporation, ALL RIGHTS RESERVED
The device will use DHCP to obtain the
new IP address (DHCP-assigned address
or default to 10.10.10.10 if a DHCP server
is not present).
ø0.19 [ø4.8]
(4 Places)
