DT Research DT590IC Basic Operation Manual

DT590IC/ DT590IB
I/O Ports

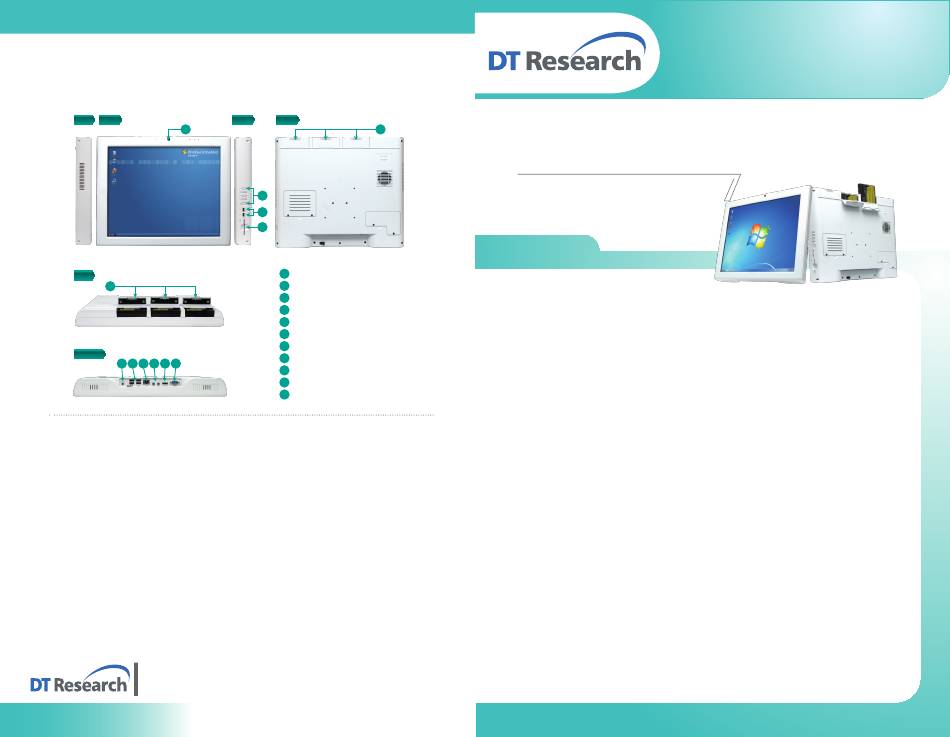

The DT590IC/ DT590IB has a comprehensive set of I/O ports. The following ports are located along
the lower rear edge of the display unit.
Left Front
A
Top
E
Bottom
F G H I J K
Cleaning the Screen
• A screen cleaning solution that is non-alcohol and non-abrasive can be used to clean the touch screen.
• We suggest cleaning with a micro-fiber cloth.
• Please spread the solution on to the cloth and then clean the touch screen.
Cleaning the Anti-microbial Enclosure
• Use a soft/non-abrasive cloth moistened with water to clean the enclosure.
• If using a cleaner, an alcohol-free and oxide-free cleaning liquid is recommended.
• To prevent scratching the anti-microbial coating, please wipe gently.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2013, DT Research, Inc. All Rights Reserved. DT Research is a registered trademark of DT Research, Inc.
BOG061614DT590ENG
4
signage dtri com
ENGLISH
Right Rear
E
B
C
D
A
Camera (optional)
B
Side panel function buttons
C
2 USB ports
D
Smart card reader (optional)
E
Battery packs (optional)
F
DC-in
G
USB ports
H Ethernet port (RJ45)
I
Audio jacks
J
Display port
K
COM port
http://www.dtresearch.com
Medical Cart Computer
DT590IC/ DT590IB
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION
Thank you for acquiring DT Research's DT590IC/ DT590IB medical cart computer. With a 19-inch
TFT display and powered by the Intel ® Celeron ® or Core™ i7 processor, the DT590IC/ DT590IB offers
optimal combinations of performance and power savings. With fully-integrated point-of-care modules
within an elegant, space-saving design, the DT590IC/ DT590IB is the optimum solution to enhance
workflow and service.
Please take a few moments to review the contents of this document to ensure that the setup and
startup proceed smoothly. The DT590IC/ DT590IB medical cart computer is ready for use, out of
the box, in its default configuration when powered by the power source provided. The following
discussion offers guidance on the hardware elements and features of the DT590IC/ DT590IB. Please
refer to your device provider for information pertaining to the software operating system or software
applications.
Package Contents
• One DT590IC or DT590IB
• Three DR202 Li-ion batteries (optional)
• AC-DC power adapter with power cord
• Basic operation guide
• Desktop stand (optional)
Options
The DT590IC/ DT590IB has a number of optional modules. These include:
• 2 mega pixels front camera with echo cancellation microphone
• Smart card reader
