Summary of Contents for Mangrove Jack's 71140
- Page 1 DUAL TEMPERATURE CONTROLLER INSTRUCTIONS...
- Page 2 MANGROVE JACK’S DUAL TEMPERATURE CONTROLLER Technical Specifications • TEMPERATURE MEASURING RANGE: -50-99°C (-58-210°F) • ACCURACY: +/- 1°C (-50-70°C OR -58-158°F) • POWER SUPPLY: 220V AC +/- 10%, 50/60Hz • SENSOR: NTC Sensor • RELAY CONTACT CAPACITY: Cooling (10A/250V AC), Heat (10A/250V AC) •...

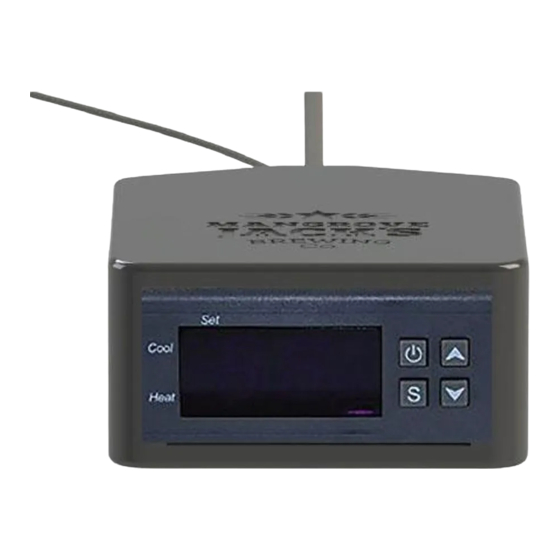

- Page 3 MANGROVE JACK’S DUAL TEMPERATURE CONTROLLER Basic Operation Set button Up button Down button Power button Button Press Once Hold for 3 Seconds Holding Continuously Power Switch controller on and off. Select, or finish step. Indicator light will Hold the Set button and appear.
- Page 4 MANGROVE JACK’S DUAL TEMPERATURE CONTROLLER Heating Cooling Thermometer Power Cord Heating The heat socket on the controller is for plugging a heating device into. Most common is the Mangrove Jack’s Heat Belt or Heat Pad. Cooling The cooling socket on the controller is for plugging a fridge or chiller into.
- Page 5 MANGROVE JACK’S DUAL TEMPERATURE CONTROLLER Additional Settings Apart from setting a target temperature (code F1), we recommend keeping all other settings as their defaults. However, for your reference, a complete list of the settings that you can change are described in the table below: Code Function...
- Page 6 Additional FAQs How do I change the temperature hysteresis value? 1. Press the set button and hold for 3 seconds. The Set indicator light on the screen will appear. 2. Use the Up or Down buttons to select F2, the code corresponding to temperature hysteresis value.
- Page 7 NZ/AU: EU/UK: Product name: Dual Temperature Controller Product name: Dual Temperature Controller Model number: 71140 Model number: 71141 (EU) and 71142 (UK) Voltage: 220-240V ~ 50/60Hz Voltage: 220-240V ~ 50/60Hz Made in: China Made in: China Correct disposal of this product:...
- Page 8 WWW.MANGROVEJACKS.COM VERSION: 2...
