Haworth Jive Assembly Instructions Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Jive
Congratulations on
your purchase of a
new Jive table!
For assembly assistance, visit Haworth.com, or call: 1-800-426-8562, or email support@haworth.com
Ready to create a dedicated workspace just for you?
We know you want to get up and running as soon as possible, but
before you dive right into setting up your table, be sure to:
1. Grab a friend to help you with the lifting. They can also help you
hold parts in place during assembly to make things a little easier.
2. Make sure you have all your parts and hardware, and gather the
necessary tools and safety equipment.
3. Follow all the steps and level your table before using it.
That's it! Once you've got your table assembled and leveled, you'll be
ready to get down to business with a fresh, new space that's
dedicated to helping you stay productive.

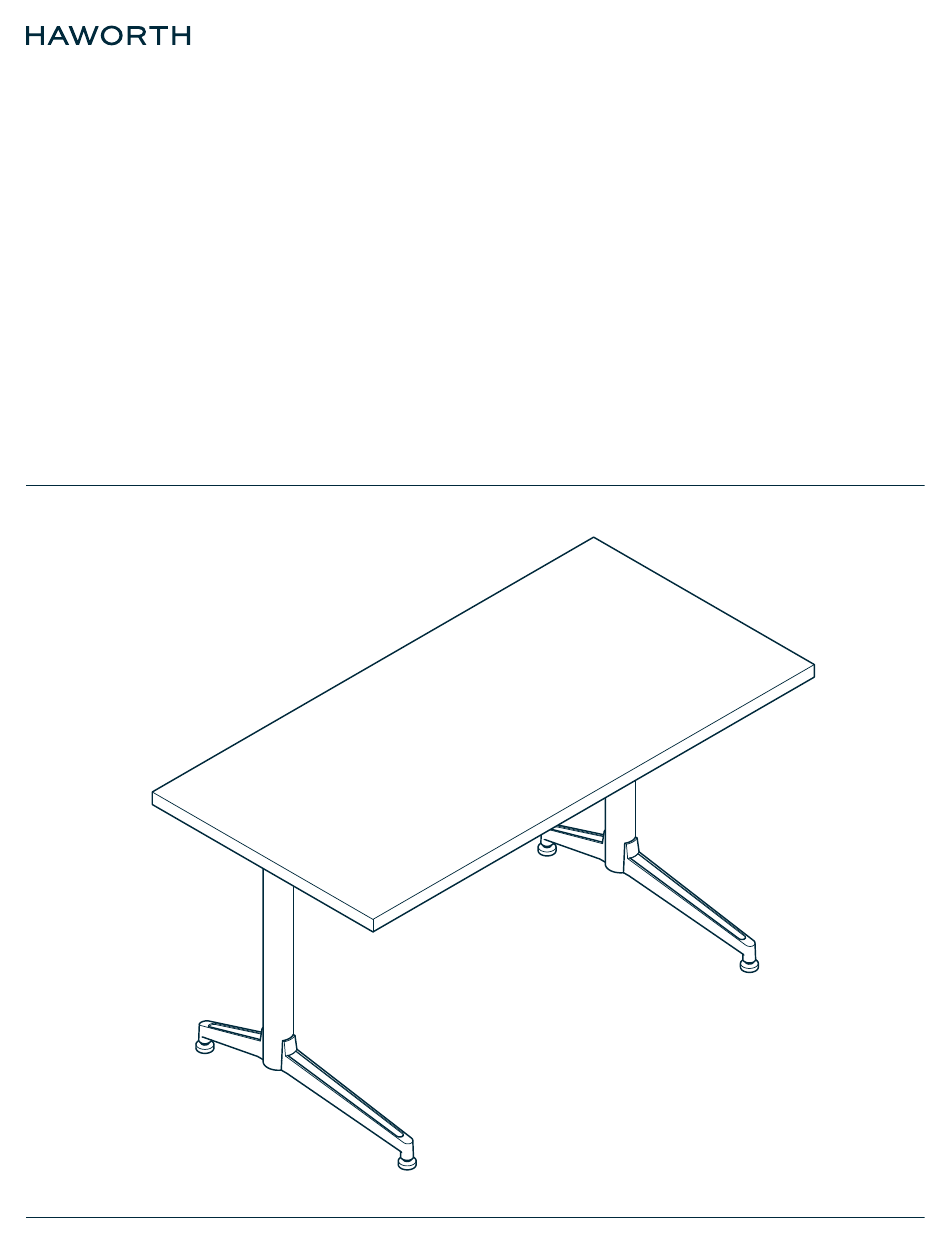

Jive Desk with C-Leg Base

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jive and is the answer not in the manual?

Questions and answers

Related Manuals for Haworth Jive

Summary of Contents for Haworth Jive

  • Page 1 That’s it! Once you’ve got your table assembled and leveled, you’ll be ready to get down to business with a fresh, new space that’s new Jive table! dedicated to helping you stay productive. For assembly assistance, visit Haworth.com, or call: 1-800-426-8562, or email support@haworth.com...
  • Page 2 Jive Desk with C-Leg Base Assembly Instructions Tools Required 9/16” Socket Optional: For caster installation only. 13mm Wobble 9/16” Extension Assembly Overview 24D x 48W 24D x 60W 30D x 48W 30D x 60W S-66 Scale 1 : 1 (S-66) #12 x 1” Pan Head Screw...
  • Page 3 (A) Worksurface (B) Columns (C) Front Feet (Long) (D) Column Washers - Qty. 4 (E) Back Feet (Short) (S197) Hex Nuts - Qty. 4 (S-59) Hex Head Bolts - Qty. 4 (S-66) Pan Head Screws - Qty. 16 Customer Service 800 426 8562 E.C.O.
  • Page 4 Attach back foot (E) to column (B) as shown; repeat for second column 2 Qty. (S-59) 3/8” x 1-1/2” Hex Head Bolt 2 Qty. (S197) 3/8” Hex Nut S197 S-59 Attach front foot (C) to column (B) as shown; repeat for second column 2 Qty.
  • Page 5 Attach columns (B) to worksurface (A) as shown 16 Qty. (S-66) #12 x 1” Pan Head Screw FRONT (SIDE VIEW) CASTER INSTALLATION - OPTIONAL Insert casters (F) and tighten with wrench as shown Remove foot pads (B1) as shown NOTE: Casters (F) are optional and ordered separately.
  • Page 6 With a helper, flip table onto its feet FLIP TABLE ONTO FEET Level table as shown Customer Service 800 426 8562 E.C.O. No 245-691 Part No 6100-0169 Rev 1 Page 6 of 6...
