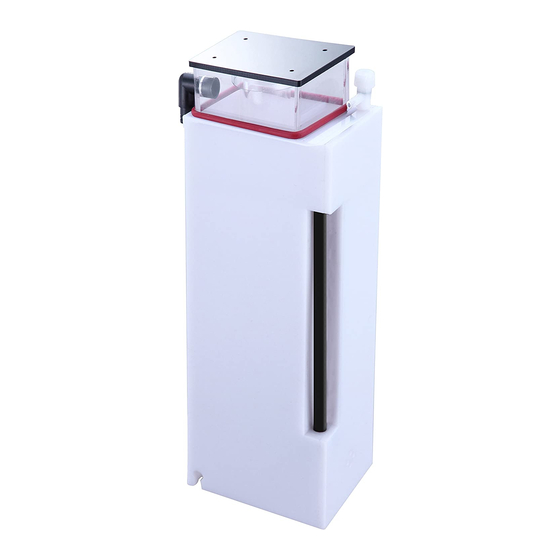

- Page 1 SkimMate Ghost SERIES DeskTop, MidSize & FullSize Owner’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions Parts—Exploded View & Identification SkimMate DeskTop SkimMate MidSize SkimMate FullSize Introduction SkimMate DeskTop SkimMate MidSize 10-11 SkimMate FullSize 12-13 Getting Started Get To Know Your Skimmer How Your Protein Skimmer Works 15-18 Setting Water Level Maintenance Cleaning the Collection Cup Cleaning / Removing Pump... - Page 3 WARNING To guard against injury, basic safety precautions should be observed including the following: READ ALL SAFETY INSTRUCTIONS BEFORE USE. To avoid electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the follow- ing situations, do not attempt to repair yourself.
- Page 4 Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may case an unsafe condition. Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.
-
Page 5: Skimmate Desktop
SkimMate Ghost — DeskTop Model #: 7203 Description Item Code Collection Cup Lid 720301 Collection Cup O-Ring 720302 Collection Cup 720303 Skimmer Body 720304 Venturi Air Line 720305 Pump Cap 720013 Pump Impeller 720012 Skimmer Pump 720001 Safety Drain Cap 720306... -
Page 6: Skimmate Midsize
SkimMate Ghost — MidSize Model #: 7204 Description Item Code Collection Cup Lid 720401 Collection Cup O-Ring 720402 Collection Cup 720403 Skimmer Body 720404 Venturi Air Line 720405 Pump Cap 720013 Pump Impeller 720012 Skimmer Pump 720001 Safety Drain Cap 720406... -
Page 7: Skimmate Fullsize
SkimMate Ghost — FullSize Model #: 7205 Description Item Code Collection Cup Lid 720500 Collection Cup O-Ring 720502 Collection Cup 720503 Skimmer Bubble Plate 720504 Skimmer Body 720505 Venturi Air Line 720506 Pump Cap 720507 Skimmer Impeller Shaft 720508 Skimmer Impeller 720509 Skimmer Pump 720501... - Page 8 Unseen. Unheard. Unrivaled Performance Drop in, ready to skim. Completely re-engineered to push the limits of All-In-One skimmers, the SkimMate Ghost Series is packed with a plethora of performance driving features that propels organics out of your aquarium water. These user-friendly, recirculating protein skimmers are equipped with bubble plates, integrated air silencers, and needle wheel impellers, all housed in a pearl white body that embodies a fresh modern look on its’...
-
Page 9: Skimmate Desktop
SkimMate Ghost DeskTop How to install your SkimMate Ghost into your NUVO Display Side Figure 1 (Nano 16 Shown) Figure 2 (Nano 16 Shown) - Page 10 Unseen. Unheard. Unrivaled Performance Drop in, ready to skim. Completely re-engineered to push the limits of All-In-One skimmers, the SkimMate Ghost Series is packed with a plethora of performance driving features that propels organics out of your aquarium water. These user-friendly, recirculating protein skimmers are equipped with bubble plates, integrated air silencers, and needle wheel impellers, all housed in a pearl white body that embodies a fresh modern look on its’...
-
Page 11: Skimmate Midsize
SkimMate Ghost MidSize How to install your SkimMate Ghost into your NUVO Display Side Figure 1 (Fusion Micro 30L Shown) Figure 2 (Fusion Micro 30L Shown) - Page 12 Unseen. Unheard. Unrivaled Performance Drop in, ready to skim. Completely re-engineered to push the limits of All-In-One skimmers, the SkimMate Ghost Series is packed with a plethora of performance driving features that propels organics out of your aquarium water. These user-friendly, recirculating protein skimmers are equipped with bubble plates, integrated air silencers, and needle wheel impellers, all housed in a pearl white body that embodies a fresh modern look on its’...
-
Page 13: Skimmate Fullsize
SkimMate Ghost FullSize How to install your SkimMate Ghost into your NUVO Display Side Figure 1 (SR-60 Shown) Figure 2 (SR-60 Shown) -
Page 14: Get To Know Your Skimmer
SkimMate Ghost Series Get To Know Your Skimmer Venturi Air Valve (DeskTop & Midsize Only) Safety Drain O-Ring Skimmer Cup Silencer Box Recirculation Chamber Bubble Column Bubble Plate Venturi Air Line Skimmer Pump w/ Needle Wheel Impeller Cord Management... -
Page 15: How Your Protein Skimmer Works
SkimMate Ghost Series How Your Protein Skimmer Works Dirty Water 1. Water enters submerged water pump. 2. Venturi air valve injects air bubbles into water. 3. The skimmers needle wheel impeller chops incoming air bubbles into smaller bubbles. 4. The bubble plate decreases turbulence to increase reaction time and helps produce better skimmate. - Page 16 SkimMate Ghost Series How Your Protein Skimmer Works Bubble Line Micro Bubbles Micro bubbles bind with organics inside bubble column and begin to rise. 6. Cup neck allows foam to accumulate and reduce Turbulence.
- Page 17 SkimMate Ghost Series How Your Protein Skimmer Works Bubble Line 7. Venturi Air Valve allows you to set the water level within the skimmer. (DeskTop and Midsize Only) 8. The collection cup is where waste accumulates for easy removal. 9. Safety drain fitting prevents overflowing of collection Cup.
- Page 18 SkimMate Ghost Series How Your Protein Skimmer Works Bubble Line 10. Excess micro bubbles are sucked into recirculating chamber and are reused to create a denser foam. 11. Clean water is outputted back into aquarium system.
-
Page 19: Setting Water Level
SkimMate Ghost Series Setting Water Level In order for the SkimMate Ghost to run effectively we recommend that your water line be adjusted below the collection cup. This allows micro bubbles to accumulate and rise up the neck of the collection cup. You can adjust the height of your collection cup to your desired height level by moving the collection cup up and down and setting it with the O-Ring. -
Page 20: Cleaning The Collection Cup
Cleaning the Collection Cup It is recommended to empty your collection cup once a week or as needed. Unplug your SkimMate pump from electrical outlet. Gently lift the collection cup upward from the skimmer body to remove cup. ... -
Page 21: Cleaning / Removing Pump
Cleaning / Removing Skimmer Pump Unplug SkimMate pump from electrical outlet before performing any maintenance. Remove skimmer out from designated skimmer column. Let water that is in the main body of skimmer drain. Remove Cup and disconnect pump from bubble plate. -
Page 22: Removing Needle Wheel Impeller
Removing Needle Wheel Impeller Carefully turn pump cap counter clockwise and remove to gain access to the needle wheel impeller.* Remove needle wheel impeller from motor. Remove needle wheel shaft (FullSize Only) *CAUTION: When removing pump cap, rotate cap counter clockwise using the edges of pump cap, do not rotate cap using the venturi inlet. - Page 23 How long should I wait before adding a skimmer? You should install your SkimMate Ghost protein skimmer one month after your tank cycles. Where do I place the SkimMate in my NUVO Aquarium? The NUVO Aquariums are built with a designed skimmer column.
-
Page 24: Warranty Information
866-368-7941 or email: warranty@innovative-marine.com A RMA # must be issued before sending any product back to Innovative Marine. Products sent back to Innovative Marine without a RMA# will be not be accepted. Service on products will not extend the original warranty period. - Page 25 PRODUCT INFORMATION MODEL # SkimMate Ghost SERIAL # DATE OF PURCHASE Please keep your receipt in a safe place to ensure you have this information.
