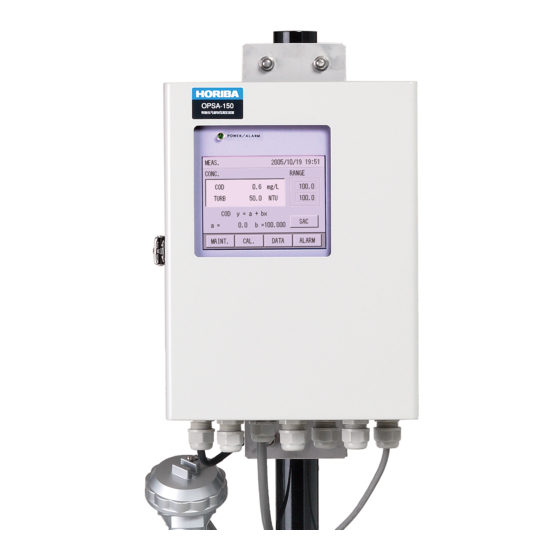

- Page 1 ORGANIC POLLUTANT MONITOR OPSA-150 Installation Manual CODE:GZ0000054386...
- Page 2 HORIBA warrants that the Product shall be free from defects in material and workmanship and agrees to repair or replace free of charge, at HORIBA’s option, any malfunctioned or damaged Product attributable to HORIBA’s responsibility for a period of one (1) year from the delivery unless otherwise agreed with a written agreement.
- Page 3 Conformable Directive This equipment conforms to the following directives and standards: Directives: the EMC Directive 89/336/EEC, in accordance with Article 10 (1) of the Directive the Low Voltage Directive 73/23/EEC Standards: [the EMC Directive] EN61326: A3: 2003 Class A, Industry [the Low Voltage Directive] EN61010-1: 2001 ●...
- Page 4 For your safety Warning messages are described in the following manner. Read the messages and follow the instructions carefully. ● Meaning of warning messages This indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations.
- Page 5 ■ Safety Precautions This section provides precautions to enable you to use the product safely and correctly and to prevent injury and damage. The terms of DANGER, WARNING, and CAUTION indicate the degree of imminency and hazardous situation. Read the precautions carefully as it contains important safety messages.
- Page 6 Documents related to this product The following documents are related to this product. ● Instruction Manual for OPSA-150 Contains information about necessary work and procedures for daily measurement operations. ● Installation Manual for OPSA-150 (this manual) Contains information about the installation procedure.
-
Page 7: Table Of Contents
Surrounding environment ....... . . Installing OPSA-150 ........ -
Page 9: Overview
Problems due to incorrect installation or use are not covered by the warranty. Be sure to fully follow the manual. Composition For OPSA-150 installation, both the UV meter itself and OPSA-150 pole stand are required. The following table shows the components included with the UV meter and pole stand. Table 1 Components included with UV meter... -
Page 10: Installation
2 Installation Installation Selecting an installation location OPSA-150 is intended for indoor use. When installing OPSA-150, select a location that satisfies the requirements below. Cautions for installation environment 2.2.1 Sample water condition Water temperature: 2°C to 40°C (must not be frozen) Water flow rate: 2 L/min to 20 L/min 2.2.2... -
Page 11: Service And Maintenance Space
Fig. 2 Service and maintenance space 2.3.3 Figure of completed pole stand mount The following figure shows the completed pole stand mount. Hood (optional) Operation unit Analysis unit Overflow tank Measuring tank Analysis unit mount Earth logo Mount Fig. 3 OPSA-150 completed pole stand... -
Page 12: Pole Stand Assembly
2 Installation 2.3.4 Pole stand assembly 1. Use four M8 bolts to prevent the mount from moving. Make sure to locate the earth logo on the mount at the front left (looking from the front). 2. Use two U bolts and attach the analysis unit mount to the pole as shown below. Make sure that there is a 350 mm to 500 mm distance between the mount and floor. - Page 13 2 Installation 3. Screw the pipe unit with V-4 valve attached into the bottom of the measuring tank. Measuring tank Drain Make sure that Teflon tape is attached. Pipe unit (V-4 valve) Turn the pipe unit right to screw it into the measuring tank. Screw the pipe unit in until this part faces the rear.
-
Page 14: Overflow Tank Assembly
2 Installation 2.3.6 Overflow tank assembly 1. Screw the pipe unit with the valve V-2 attached into the valve V-1 valve on the bottom of the overflow tank. Overflow tank Valve V-1 Pipe with valve V-2 attached Fig. 9 Installation of valve V-2 2. - Page 15 2 Installation 3. Attach the pipe stay to the pipe unit (V-2 valve attached) temporally using a U bolt (small/M5), and then fasten the pipe stay to the pole stand using another U bolt (large/M8). After making sure that there is no excess pressure on the pipe unit, firmly fasten the U bolt (small/M5) attached first.
-
Page 16: Operating Unit Assembly
2 Installation 2.3.7 Operating unit assembly 1. Attach the converter bracket to the operation unit using four M6 hexagon head bolts. If you want to attach the optional hood, attach the components in this order: 1. operation unit; 2. converter bracket; 3. hood. 2. -
Page 17: Piping
3 Piping Piping Piping procedure When there imay be pipe freezing, install a pipe warming device. To prevent backpressure, make the exit-side pipes as short as possible. In addition, the pipe exit must allow air to flow out freely, and must not be submerged in water. Do not install the pipe vertically. - Page 18 3 Piping Note The diameters of the pipes shown in Table 3 match the diameters of connectors for OPSA-150. If the water sampling point is distant from the device, use pipes with larger diameters than those mentioned in Table 3.
-
Page 19: Wiring
4 Wiring Wiring Wiring procedure 4.1.1 Earth connection Connect the earth according to Type D earth connection procedures. Be sure to connect the earth bolt. Earth bolt (M5) Fig. 15 Earth connection Note To prevent electric shocks, ensure correct earthing. 4.1.2 Power supply Connect the power supply of the operation unit according to the signal table. -
Page 20: Cable Connection For Analysis Unit
Connect such devices as a surge absorber and noise killer in parallel to prevent noise in contact output signals. Note Refer to the separate OPSA-150 Operation Manual. Do not connect the power cable to the signal line wiring section. Doing so will cause malfunctions. -
Page 21: Related Figures
5 Related Figures Related Figures Name Specifications Figure No. Pole stand set V3003480A Dimensional outlines Operation unit V3001112 Analysis unit V1040265A Flow schematic V3001430B External wiring diagram V1039557A... - Page 26 GZ0000015945B APR. 20, 2006 APR. 20, 2006 APR. 20, 2006 V3001430B H.Yagi K.Terada O.Takiguchi HORIBA, Ltd.
- Page 28 2 Miyanohigashi, Kisshoin Minami-ku, Kyoto 610-8510 Japan http://www.horiba.com...
