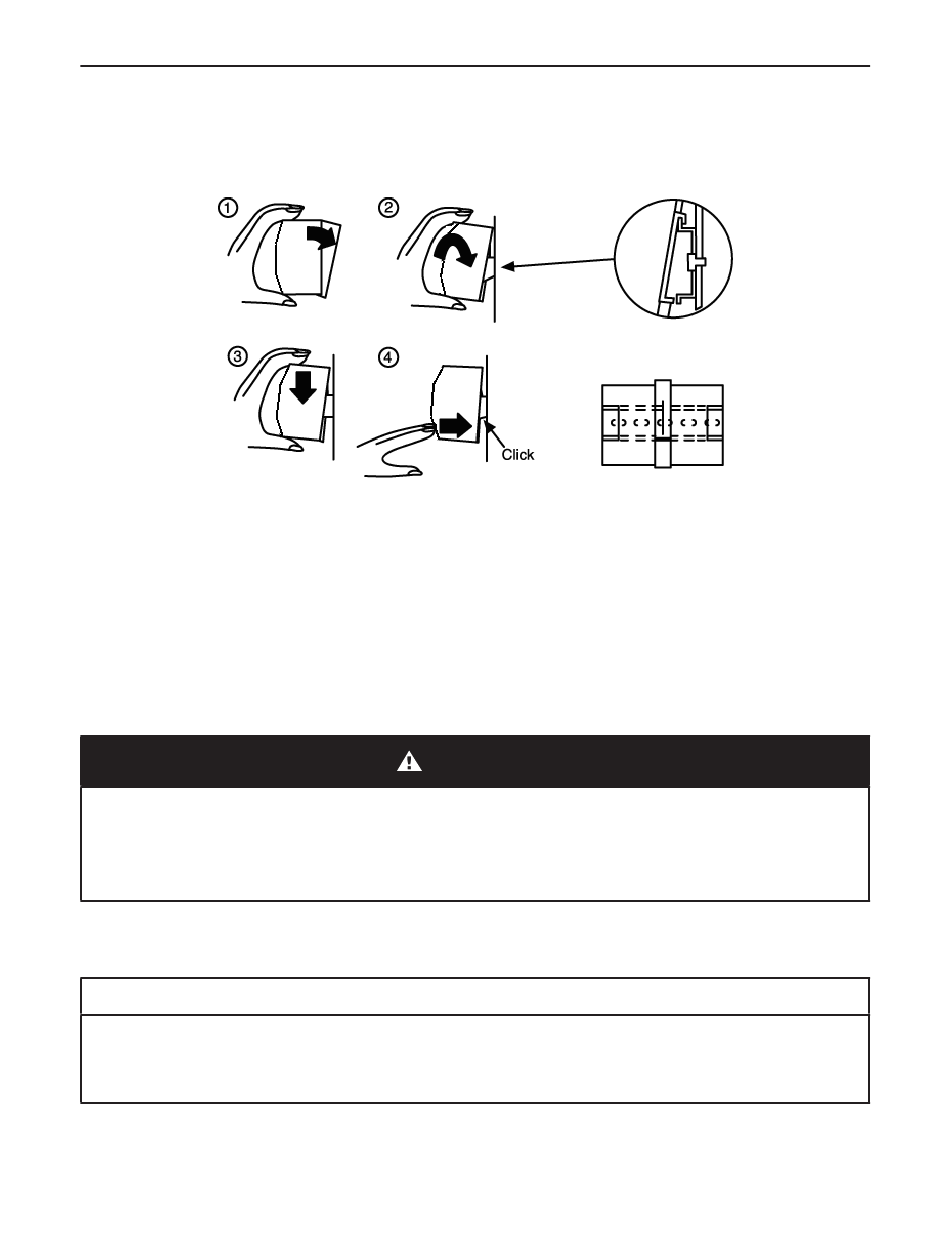

1.3 DIN Rail Mounting
1. Tilt unit as illustrated.
2. Put unit onto the DIN rail.
3. Push unit downward until it stops.
4. Push at the lower front edge to lock.
5. Gently shake the unit to ensure that it is secure.
NOTE: Press the button located at the top (rear) of the enclosure to unlock and remove from the DIN rail.
1.4 Supplemental Enclosures
The STV25K must be installed inside an enclosure and located to prevent accidental contact with terminals
during maintenance and service.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• This equipment must be installed inside an enclosure and located so, as to prevent accidental contact with
terminals during maintenance or servicing.
Failure to follow these instructions will result in death or serious injury.
1.5 Maximum Current Capability
The total current draw in which the STV25K may continuously handle is 20 A.
LOSS OF SURGE SUPPRESSION
• Overloading the unit can cause permanent damage.
Failure to follow these instructions can result in equipment damage.
1.6 Recommended Fuse
Bussman type SC-25 Class G, rated 250 V ac minimum; 25 A maximum or equivalent.
DANGER
NOTICE
STV25K Series
Page: 3
