Summary of Contents for Doughpro PROLUXE DP1350

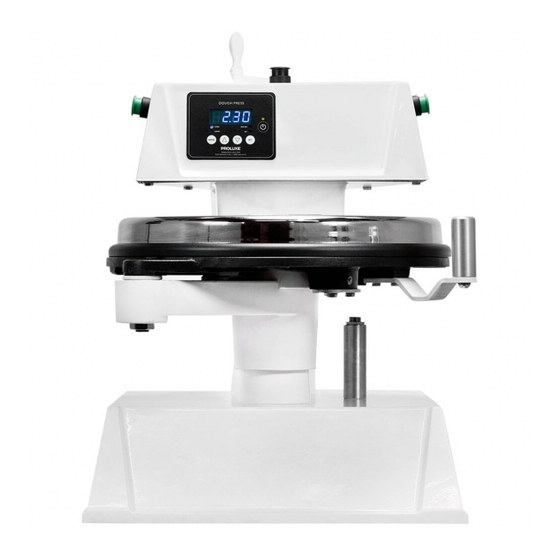

- Page 1 Operations Manual Model: DP1350 Automatic Dough Press formerly DOUGHPRO. New Name. Same Quality. Superior Service. proluxe.com...
-
Page 2: Installation
DP1350. Doughpro shall not be liable for the Your model DP1350 ma chine will have injury, loss or damage, direct or a long trouble-free life. Read this... -
Page 3: Changing Temperature
• To view the set points of WARNING temperature, timer and counter, Avoid touching hot surfaces press MODE button to view the while operating the machine. desired mode of operation. CAUTION 2. Changing Temperature: During normal operation, the • Press MODE button until base of the machine must be temperature is displayed. - Page 4 Place your pre-portioned ball of Switch the DP1350 to the ON dough in the approximate center position. of the lower platen. Add another dash of spray to the top of the Note: Initial temperature setting of dough ball. 150°F has been shown to be acceptable for most dough formulations;...
-
Page 5: International Symbols
This number can be found on the serial plate located on the rear of the machine. Preventative Maintenance Suggestions The Doughpro DP1350 machines are relatively maintenance free. For a long and trouble-free life, the following preventative maintenance should be... - Page 6 DOUGHPRO DP1350 Automatic Air Press Trouble Shooting Guide Symptom Probable Cause Action to be Taken Ref. #'s on Explosion Drawing Power Button on Digital Controller Power Cord is not plugged in. Plug power cord into wall 's face is depressed but doesn’t turn...
- Page 7 DOUGHPRO DP1350 Automatic Air Press Trouble Shooting Guide Symptom Probable Cause Action to be Taken Ref. #'s on Explosion Drawing If setpoint is reached but slighty off Offset may need to be calibrated and Must call (800) 624-6717 ext. 129 in temperature.
- Page 8 EXPLOSION VIEW DP1350CO 09/11/19 4X 63 4X 63 4X 64 3X 52 4X 53 4X 76 4X 64 4X 54 EXPDP1350CO RE 091119 CUSTOMER MANUAL...
- Page 9 22 2X 115 4X EXPDP1350CO RE 091119 CUSTOMER MANUAL...
- Page 10 PROLUXE PARTS LIST FOR DP1350CO DP1350COA DP1350COAUB ITEM DESCRIPTION QTY. 120 ~ AC 240 ~ AC BASE AND POST WELDING ASSEMBLY (DP1350) DP1310401 DP1310401 PISTON GUIDE WELDING ASSEMBLY DP13102 DP13102 CYLINDER, HYDRAULIC - 40 MM BORE x 1.687 STROKE DP13140 DP13140 MOUNTING PLATE DP13105...
- Page 11 PROLUXE PARTS LIST FOR DP1350CO DP1350COA DP1350COAUB ITEM DESCRIPTION QTY. 120 ~ AC 240 ~ AC HOUSING, MACHINING 11010252201 11010252201 GREEN MUSHROOM BUTTON SCREW ON P9ARB3V P9ARB3V SWITCH, MOM P/S OP SCREW ON GE P9XPLOSO P9XPLOSO CRANK SPACER 11064 11064 CRANK HANDLE, ADJUSTMENT 1106001 1106001...
- Page 12 PROLUXE PARTS LIST FOR DP1350CO DP1350COA DP1350COAUB ITEM DESCRIPTION QTY. 120 ~ AC 240 ~ AC STRAIN RELIEF 3231 3231 WIRE HARNESS DP13150 DP13150 CABLE, POWER DISTRIBUTION DP13168 DP13168 PORT FITTING DP13121 DP13121 PAN HEAD SLOTTED 8-32 X 3/8" PLATED SPS83238 SPS83238 TUBING, BLACK AIR LINE 1/4"...
-
Page 14: Warranty And Return Policy
Rev 12916 Warranty & Return Policy Proluxe warrants all products manufactured by it against defects in workmanship or materials from the date of purchase for a period of (1) year on parts and labor. This warranty applies to only equipment purchased and used in the United States. Warranty period shall begin when equipment ships.
