Gas cylinder connection Positioning of the tray to the ground Gas supply hose connection Remote control connection Filling the tray USE OF PYROS 3 ......................12 Arming Use of extinguishing agents Instructions for use Stop PYROS 3 AUTONOMY AND POWER..................... 15 SERVICING OPERATIONS ....................

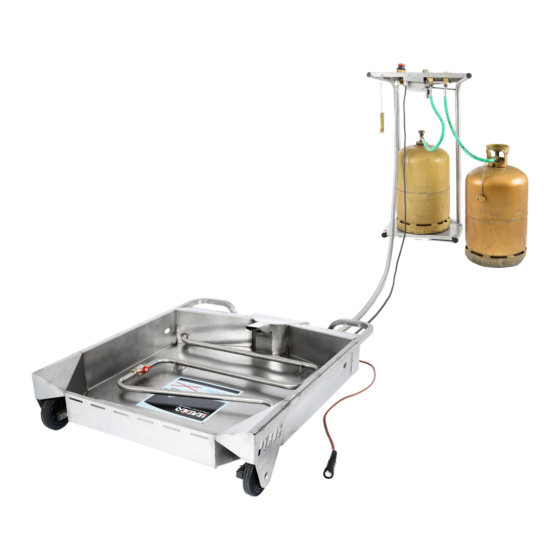

1 INTRODUCTION PYROS 3 is a fire trainer with water tray. It allows training in the use of different extinguishing materials (all fire extinguishers, nozzles, portable foam units, etc ...) safely and with respect for the environment. Thanks to its wired remote control or its wireless remote control, PYROS 3 allows the trainer to manage the fire (switching on and off) to accompany trainees safely during training interventions.
Page 5
Housing for wired remote control storage Connection for gas supply hose Electrical connection (on side - not seen here) of the wired remote control or of the radio receiver of the wireless Battery compartment remote control. and electronics Also allows you to plug in the charger to charge the battery Wireless Control desk...
For good supply of the tray, the gas cylinders must be positioned upright. Never lie on the side the gas cylinders. The PYROS 3 would work with gas in liquid phase and would be irreparably damaged. • Take care not to introduce sand or gravel in the gas supply hose or fittings of the unit. This could damage the internal valve.
3 GENERAL CHARACTERISTICS & PERFORMANCES 3.1 General characteristics Distributor : ❖ Manufacturer: LEADER S.A.S --to be filled in by the distributor-- ZI des hautes vallées Chemin N°34 76930 Octeville sur Mer FRANCE www.leader-group.eu www.LeaderNorthAmerica.com ▪ Content and features : PYROS water fire pan Material: Stainless steel 304 Dimensions: L117 x W96.5 x H26 cm –...
Outside France, consult the country's gas supplier. 3.4 The remotes control PYROS 3 comes with one wired remote control and one wireless remote control. A single remote control can be used at once as only one electrical connector is placed on the tray.
4 IMPLEMENTATION INSTRUCTIONS Use within a room can cause gas buildup and explosion! DO NOT USE INDOOR PYROS 3. Before use: Charge the battery at least 12 hours. 4.1 Assembly of the gas cylinder holder assembly Assemble the holder on the desk with the Allen wrench 4 screws and 4 M6 washers.
b. Drawing of connections for use of the wired remote control Wired remote control directly plugged on the tray WIND DIRECTION Gas hoses to connect gas Reinforced supply gas hose cylinders and desk 4.3 Gas cylinder connection Hand tighten the gas connection pipe valve on the gas cylinder. 4.4 Positioning of the tray to the ground Positioning the fire tray on a flat surface, so that the water level is equal everywhere.
4.6 Remote control connection After removing the protective cap of the connector, connect the remote control cable of the wired remote control or the wireless remote control (cable of the radio receiver). The connection must be done before any water filling operation of the tray to avoid wetting the electrical connector. Drawing showing the connection of the wired remote control.
5 USE OF PYROS 3 Open / close gas valve connected to Gas regulator Gauge location indicating the the gas cylinders gas pressure in the circuit Emergency stop button Arming The emergency button also functions as a stop gas valve.
"emergency stop button" in case of problem. 5.2 Use of extinguishing agents You can work on PYROS 3 with any extinguishing agent. Beware of the use of foam concentrates: it traps the gas, which could ignite further outside of the tray.
Page 14
PYROS 3 Stop 1. Close gas cylinder valves 2. Press the button on the remote control. This activates the solenoid and allows to empty the gas in the system. Please note that this action may ignite the waste gases. 3. Press the emergency stop button on the control desk.
6 AUTONOMY AND POWER For information, the autonomy of PYROS 3 is about 58 min using industrial gas cylinder without flow limiter. However, the power and autonomy of PYROS 3 depend on the gas cylinders flow. The flow of a gas cylinder varies according to two factors: 1.
7 SERVICING OPERATIONS 7.1 Precautions Beware of hot parts: • The entire upper part of the tray is hot after use • Before handling the tray, sprinkle it with water to cool it • Wear gloves 7.2 Cleaning • Before washing operation: Disconnect the remote control cable and position the protective cap on the connector.
1 time per month when not in use. 8 ACCESSORIES USE (OPTIONS) : The trainings conducted with PYROS 3 can be supplemented with the use of training modules and enable personalized and realistic training: Oil explosion, aerosol explosion, fryer fire bin fire, screen fire, electric motor fire or electrical cabinet fire.
8.2 Implementation of the adapter and accessories The trainings must be completed with accessories on tray filled with water only. Prior to manipulating the tray, shut down the system: 1. Turn off the gas supply by pressing the emergency stop button 2.
8.3 Handling Training accessories Wear gloves when handling the adapter and the various accessories during training. These are very hot because of the fire generated by PYROS 3. Before removing an accessory, think to cool it with some water. 9 FAILURES...
This warranty is specifically limited to replacing or repairing the equipment (or its parts) which proves defective after examination for reasons attributable to LEADER. To initiate this warranty, with the agreement of LEADER the claimant must return the equipment in the shortest possible time after discovery of the defect to the following address:...
