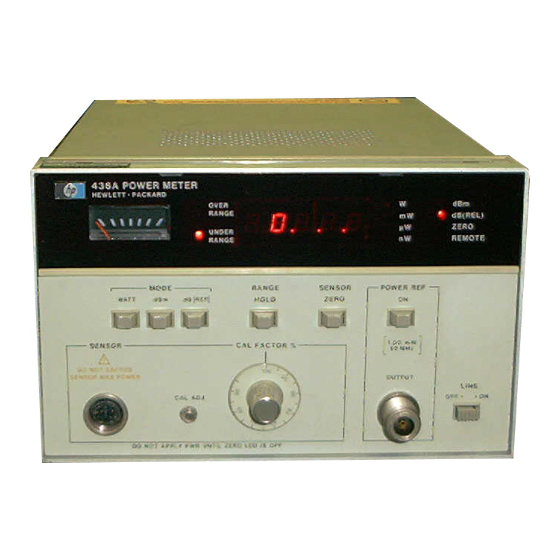

HP 436A Operating And Service Manual
  1. Manuals
  2. Brands
  3. HP Manuals
  4. Measuring Instruments
  5. 436A
  6. Operating and service manual

HP 436A Operating And Service Manual

Power meter
