Cantilever (long) with pivot, G 1-½" sensor process connection on front
75 (2.9)

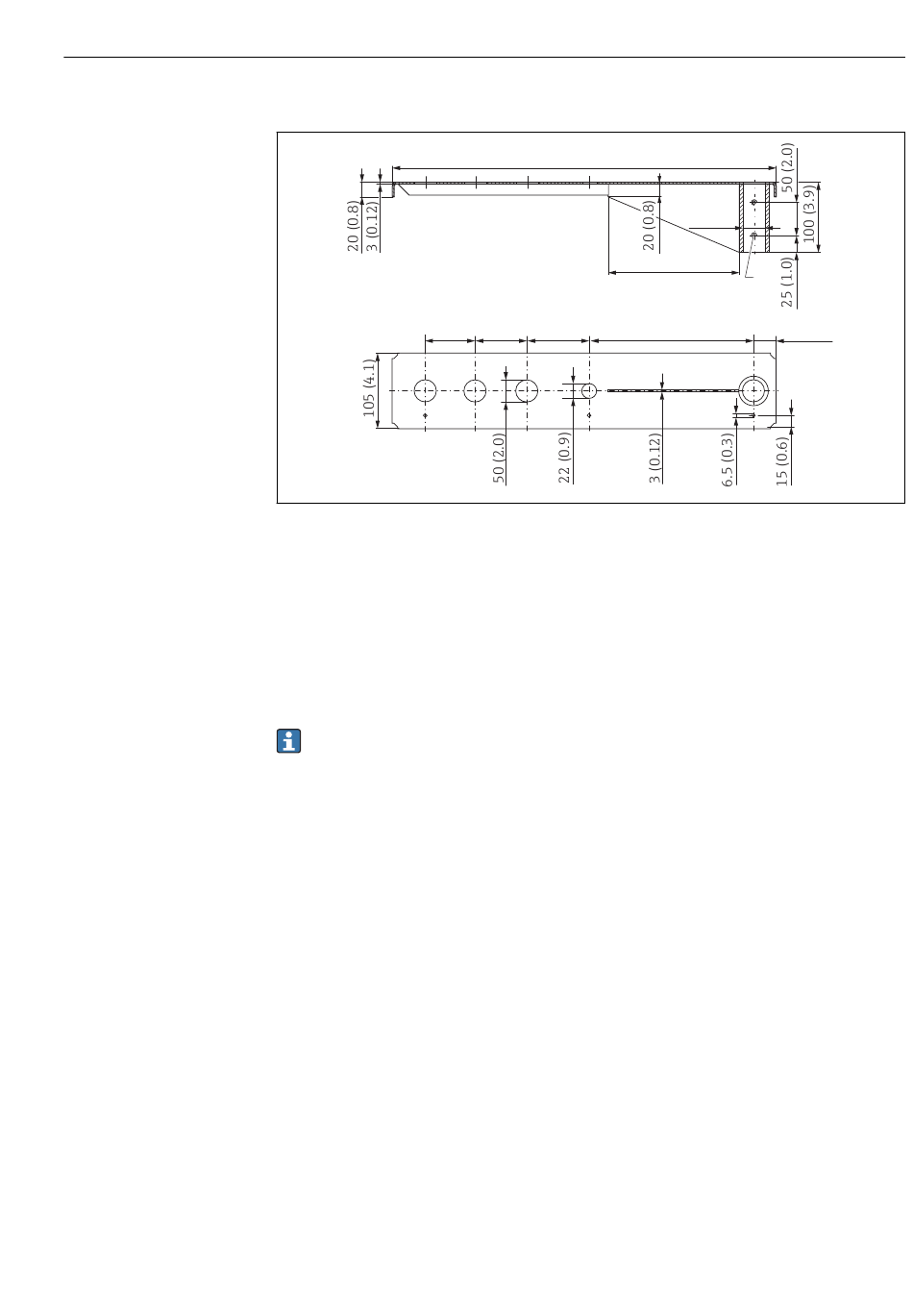

 33 Dimensions of cantilever (long) with pivot for G 1-½" sensor process connection on front. Unit of
measurement mm (in)
Weight:
4.4 kg (9.7 lb)
Material
316L (1.4404)
Order number
571452319
• 50 mm (2.17 in) openings for all G 1-½" (MNPT 1-½") connections on front
• 22 mm (0.87 in) opening can be used for an additional sensor
• Retaining screws are included in delivery
1085 (42.7)
300 (11.8)
75 (2.9) 100 (3.9) 750 (29.5)
Accessories
35 (1.4)
M8
35 (1.4)
A0037803
