ITRON EquaScan FNet Installation Manual

INSTALLATION MANUAL

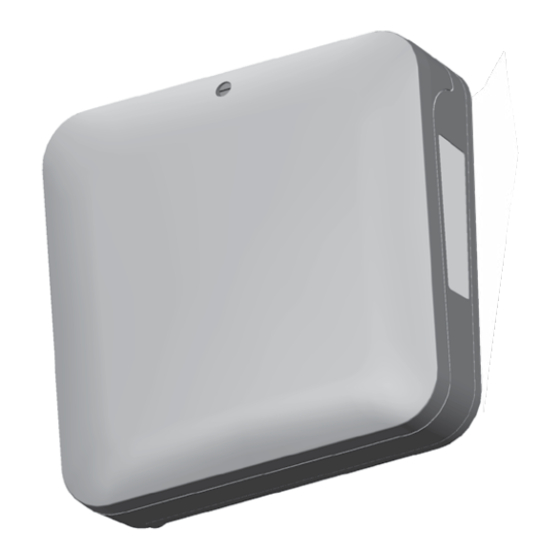

EquaScan FNet
Coordinator

SCOPE OF DELIVERY

• Coordinator incl. wall bracket
• Installation Manual
• Fixation kit (4 Screw with fi xings)
• 1 user plastic seal
• Optional:
- GPRS quad band modem ( 2G/3G)
· Battery pack ( voltage 3.0V 25Ah) (Art Nr.: A5002544 for replacement)
· or mains AC 110V...230 V - 50/60Hz ( Mains cable ready to use)
· Equipped with a SIM Card supporting 2G/3G ; Data and SMS functions

GENERAL INFORMATION

The EquaScan FNet system is an innovative 2 way-radio system particularly developed to fulfi l the requirements of billing
service companies. The EquaScan FNet system enables any kind of metering data to be collected effi ciently, quickly and
securely. The EquaScan Fnet system allows to integrate all endpoints belonging to EquaScan family. An EquaScan FNet
system comsists of one Coordinator and up to 19 Routers in order to build up a complete EquaScan FNet system and to
cover large building installations. One EquaScan FNet system can integrate up to 2.000 endpoints.
The EquaScan FNet Coordinator serves to manage, coordinate and consolidate the data exchanged between the Routers
inside the EquaScan Fnet environment, and at the same time also to collect the data from the endpoints in its own radio
range.
The user-friendly architecture of EquaScan FNet radio system and the easy set up of its associated components ensure
safe installation and commissioning of the FNet system with error-free operation and secure data transmission.
This product must be installed professionally and in accordance with the assembly guidelines and may therefore only be
installed by qualifi ed and trained experts. For installation in buildings with high fi re protection requirements e.g. staircases,
escape routes, the installation company must ensure that the local building regulations are met.
Handle carefully the package and the device inside, as it could be easily damaged if dropped or handled without care and
attention. The package must be stored the right way up and keep and store out of the rain and not in damp conditions. Do
not store the EquaScan FNet Device with the battery connected, as it may reduce signifi cantly the general expected life time.
The intended use of the EquaScan FNet system is for storing and transmitting the consumption data of EquaScan
measuring devices and endpoints. The EquaScan FNet devices have been designed exclusively for this purpose. Any use
other than the use described above and any changes made to the EquaScan FNet devices represent an improper use. All
changes are subject to special written approval by the manufacturer.
Do not install the device inside metallic enclosures, behind metallic doors or any other electrically polluted places, as it may
infl uence signifi cantly the Device radio performances.
Install the EquaScan FNet devices under the fi nal site conditions to avoid any later disruption of the system and revise every
time the EquaScan FNet system after any construction change inside the building.
