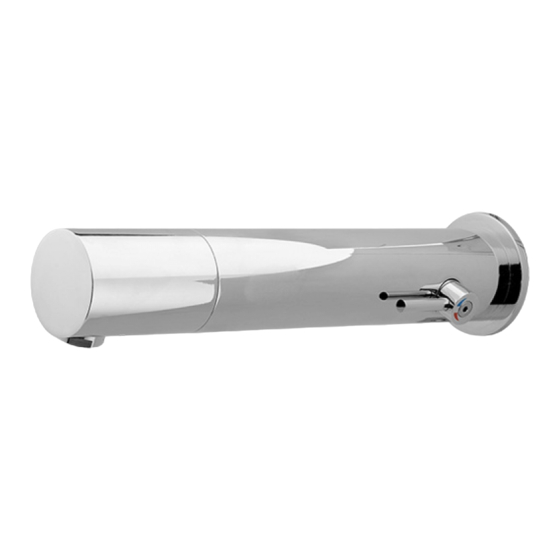

- Page 1 MALMO 1000 W A L L M O U N T E D E L E C T R O N I C FA U C E T MALMO SERIES I NSTALLAT ION A ND MAINT ENA NCE GU IDE...
-
Page 2: Technical Data
Max. 70ºC The information in this document reflects products at the date of printing. Stern Engineering Ltd reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market. -
Page 3: Pack Contents
PACK CONTENTS PRE-INSTALLATION INFO MALMO CHECK CONTENTS 1 x Wall rosette 1 x Malmo faucet Separate all parts from the packaging and check each part with the pack contents section. Pay attention to the variations of the different models. Make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not attempt to install your electronic faucet until you obtain the missing parts. -
Page 4: Faucet Installation
FAUCET INSTALLATION FAUCET INSTALLATION MALMO 1000 MALMO 1. Shut off the water supply. 1. Shut off the water supply. 2. Prepare the support bar at the faucet base by assem- 28-29 mm 28-29 mm bling the angle supports with the 4 provided screws. 2. -
Page 5: Settings Adjustment
SETTINGS ADJUSTMENT SETTINGS ADJUSTMENT DETECTION RANGE: Only if necessary, use the remote control to adjust DETECTION the sensor range as follows: DELAY OUT TIME RANGE Press the RANGE button. Wait until a quick flashing of the LED in the sensor eye is perceived. Then, press + to increase the one level and – to reduce it every push will increase or decrease one level. -
Page 6: Battery Replacement
SETTINGS ADJUSTMENT BATTERY REPLACEMENT Low battery indicator SECURITY TIME: The Security time, prevents continuous flushing of water due to reflections or vandalism. By default, if the sensor is covered for When the battery weakens, the LED indicator light will blink at a constant rate when the more than 90 seconds the water flow will shut automatically. -
Page 7: Maintenance
MAINTENANCE MAINTENANCE MALMO 1000 MALMO FILTER CLEANING INSTRUCTIONS FOR MALMO h. Reassemble the faucet body to the base with the rosette setting the screw. This faucet is provided with a stainless steel filter preventing foreign particles to enter the i. Re-establish the incoming water supply. lines. -
Page 8: Limited Warranty
Low battery. Replace battery hands are within If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair, the sensor’s range. provide a replacement part or product, or make appropriate adjustments. Damage caused 2. - Page 9 777 Passaic Avenue, Clifton NJ,07012, USA Tel: +1-973 773 8011 | Fax: +1-973-779-8768 Toll Free: 1-800-4364410 info@sternfaucets.com | tech@sternfaucets.com 08.2020 01500205-F...
