Page 1: Installation Guide

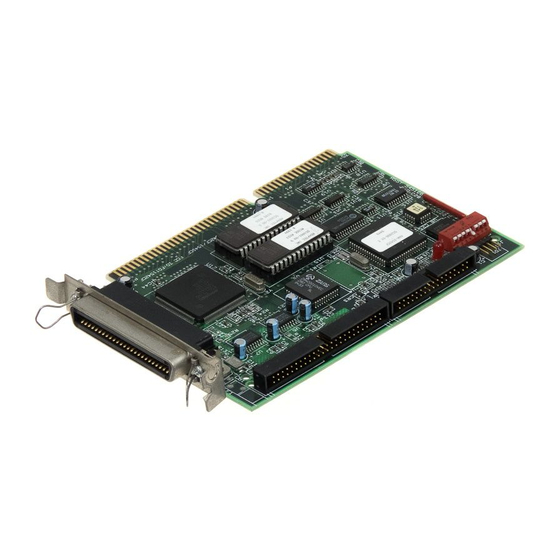

Installation Guide AHA-1540CF/1542CF High-Performance Bus Master ISA-to-SCSI Host Adapter with SCSISelect... -
Page 2: Getting Started
1. Make sure each device to be connected to the host adapter is set to a separate SCSI ID. 2. The AHA-1540CF/1542CF is set to ID 7 by default. This can easily be changed with the SCSISelect utility, as described in Section 3. -
Page 3: Configuring The Host Adapter
SCSI bus must have a set of resistors called terminators. All other SCSI devices must have terminators removed/disabled. The AHA-1540CF/1542CF and most SCSI peripher- als come equipped with built-in terminators that can be enabled or disabled. Exactly two devices must be terminated on the SCSI bus, one at each end. -
Page 4: Troubleshooting
Adaptec’s DOS I/O Operating Envi- ronment Software, or via the BBS. See Section 6. Make sure sw5 on the AHA-1540CF is in the On/Closed position. It must remain in that posi- tion, even though there is no floppy controller on that host adapter. -
Page 5: Adaptec Customer Support
BBS can be reached at: (408) 945-7727, 1200/2400/9600/14400 baud, 8 data bits, 1 stop bit, no parity. The Adaptec Technical Support Hot Line can be reached at (800) 959-SCSI (7274), or (408) 945-2550. The Adaptec Interactive FAX line (408) 945-6776.
